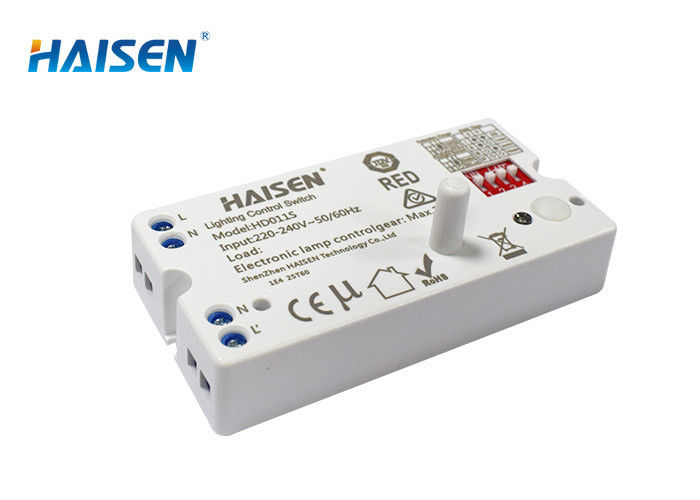

IP20 5.8GHz Microwave Switch Occupancy Sensor Ceiling Light Fixture

Place of Origin China
Brand Name HAISEN
Certification CE / TUV / RoHS/ RED
Model Number HD011S
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Microwave Frequency 5.8GHz±75MHz Switching Capacity Max.100W
Detection Area 50%/100% Mounting Height Max.2.5-4m/8.2-13.12ft
Operating Temperature -20℃-+60℃ IP Rating IP 20
Lifetime 50000 Hours
High Light

IP20 Microwave Switch Occupancy Sensor

,

5.8GHz Microwave Switch Occupancy Sensor

,

IP20 Lighting Occupancy Sensor

Leave a Message
Product Description

IP20 5.8GHz Microwave Switch Occupancy Sensor Ceiling Light Fixture



Rod Antenna Microwave Motion Sensor ON/OFF function installed inside of the lighting fixture



Features:

  • 5.8GHz Micorwave Motion Sensor with rod antenna module for switching ON/OFF.
  • With DIP Switch on front which should open a hole for adjusting the DIP switch.
  • With rod antenna module which make it happen to open a very small hole with only removing 1-2 light beads to avoid any shading.
  • Rod antenna design which mostly improve the stability of the sensor when installed backside of the metal board inside of the lighting fixture.
  • Automatically detect the daylight and remain OFF even detect any movement when the natural light is sufficient.
  • Mounting height could be 4M and detection diameter could be 12M.
  • Getting different effect and requirements by selecting different detection area, hold time and daylight threshold set by the DIP switch.
  • IP Rating would be IP20 and 5 years of warranty.
  • Certificate of TUV, CE, RED, SAA.

Specifications:

Input Operating Voltage 220-240VAC 50/60Hz
Stand-by Power ≤0.5W
Switching Capacity Load Type Max. 100W

Sensor

Parameters

Hold Time 5s/60s/3min/10min
Detection area 50% / 100%
Daylight Threshold 30Lux/Disable
Mounting Height Max.4m(ceiling mounted)
Detection Range Max.12m(ceiling mounted)

Wireless

Parameters

Operating Frequency 5.8 GHz ±75 MHz
Switch Control 0N/0FF

Operating

Environment

Operating Temperature -20℃~+60℃
Certificate Certificate Requirement CE / TUV / RoHs / RED





Others

IP Rating IP20 (Built-in)
Installation Size 76.9 X 39.9 X 27.7mm
Packaging Requirement Bubble bag +Outer Carton(K=A)
Life 50000h



  ON/OFF          Daylight sensor    Detection area    Warranty 5 years         Hold time



Wiring diagram:

4-pole press-in terminal (L, N,N,L′),easy assembly.



Detection coverage:

Max. detection range will be 12m for ceiling mounted.



DIP Switch Settings:



  Detection area                           Hold-time                            Daylight threshold



  Detection area means               Hold-time means the            Daylight sensor priors

  detection coverage. It               Time period the light             to motion sensor. Set

  can be adjusted by                   Will be ON after the                threshold for specific

  combining DIP                          last detection.                        needs. If disable, only

  switches for specific                                                               motion sensor works.

  application.



Application Demo - Function Demo-On/off control:



      With sufficient daylight,                      With insufficient daylight,                    After the last detection

      even when motion                              when motion detected,                        and the present hold

      detected, light remains                       light ON.                                             time elapsed, light OFF.





Application:

The motion sensor can penetrate most of objects such as glass, wood, plastic but metal. It won’t be affected by ambient temperature, dust and widely applied in office, corridor.
