HD401S 120V 277V AC On Off Switch Sensor For Ceiling Light

Place of Origin China
Brand Name HAISEN
Certification UL FCC RoHS
Model Number HD401S
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Input Voltage 120~277VAC 50/60Hz Certificate UL FCC RoHS
Switching Capacity Max3.0A@120vac;Max2.0A@277vac Function ON/OFF Sensor
Warranty 5 Years Operating Temperature -20°C~+60°C
Mounting Height Max. 6M IP Rating IP20
High Light

277VAC On Off Switch Sensor

,

HD401S On Off Switch Sensor

,

277VAC On Off Sensor Switch

Leave a Message
Product Description

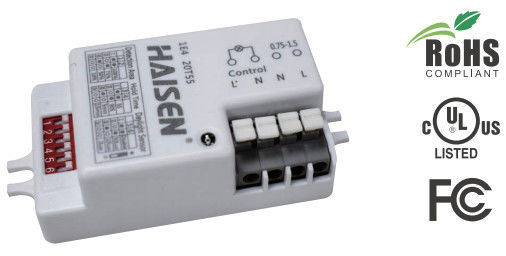

HD401S 120V 277V AC On Off Switch Sensor For Ceiling Light



120-277VAC Ceiling Light Microwave Motion Sensor Automatic ON/OFF Control Daylight Sensor



Features:

1. Automatically ON/OFF control when detect movement.

2. Daylight function to keep light off with sufficient brightness even detect movement.

3. Optional detection range, holdtime and daylight threshold.

4. DIP Switch setting

5. Compact size suitable for ceiling light.

6. Loop in and loop out for easy installation.

7. IP 20 with 5 years warranty.

8. Certificate of UL / FCC/ RoHS



Product Description

   Input voltage    120~277VAC 50/60Hz
   Switching capacity    Max.3.0A@120Vac,50/60Hz; Max.2.0A@277Vac,50/60Hz
   Stand-by power    ≤1W
   Detection area    10%/50%/75%/100%
   Hold time    5s/90s/5min/15min
   Daylight threshold    2Lux /10Lux /50Lux/Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Detection angle    30°-150°
   Mounting height    2.5-6m/8.2-19.8ft(Ceiling Mounted)
   Detection range    Radius,3-6m/9.84-19.68ft(Ceiling Mounted)
   Motion detection    0.5~1.5m/s
Operating temperature    -20°C+60°C
   IP rating    IP20
   Warranty    5 years



Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-6m.



Mechanical structure

With six DIP switch poles to set all parameters

With four poles to easily connect with LED driver and power supply

With two installation hole, easily fixed to the lighting fixture for end user.



Detection area

In this area,movement will be detected and able to trigger the sensor.

100% detection area is also known as the strong sensitivity.



Hold Time

The period of light keeping 100% brightness after

moving abjects leave the detection area.



Daylight threshold

Definition of the ambient brightness;only when the

ambient brightness is lower than the preset specific

lux amount,the sensor will work;when it's preset as

"disable",the sensor works everytime it detects motion

regardless the ambient brightness.

Application Demo

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.



With sufficient daylight,                 With insufficient daylight,             After the last detection and
even when motion detected,          when motion detected, light ON.   the present hold time
light remains OFF.                                                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.



When motion is detected,              After people leave the detection    After the last detection and
the sensor will switch on the         area, light remains 100%                the present hold time
light to 100% brighteness.             brightness within hold time.          elapsed, light OFF.

Installation Method:



Installation Precautions:

1. Microwave sensor can be installed in any lamp except the one with full metal shell.

2. The detected surface can not be shielded by metal objects.

3. Make sure the microwave module is completely exposed outside.

4. The detection surface of the snesor module shall be installed facing the detection area.

5. Should be kept away from the driver to avoid interference generation and lamp flashing.

6. Wiring must be strictly in accordance with the wiring diagram to avoid short circuit.



Appliction Environment:

1. Suitable for indoor installation to aviod false triggering due to external factors such as rain,wind or tree swing.

2. Shall not be installed in the place with all four metal shelters and small space(such as galvanized-iron roof).

3. Shall not be installation,so as to aviod false trigger caused by the lamp itself shaking.

4. Shall not be installation next to large operating machines such as ventilator/ceiling fan to aviod false triggering caused by machine vibration.
