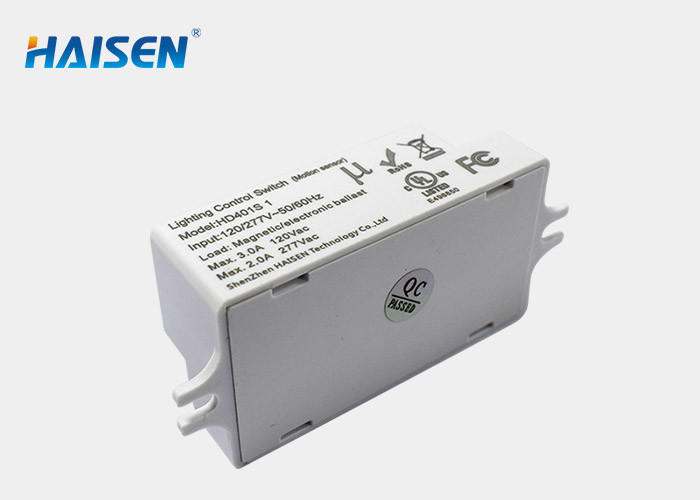

IP20 Daylight Motion Sensor ON OFF Switch Optional Detection Range

Place of Origin China
Brand Name HAISEN
Certification UL FCC RoHS
Model Number HD401S 1
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Input Voltage 120~277VAC 50/60Hz Certificate UL FCC RoHS
Mounting Height Max. 12M Function ON/OFF Sensor
Switching Capacity Max3.0A@120vac;Max2.0A@277vac Warranty 5 Years
Dtection Range Max.ø14m/45.92ft IP Rating IP20
High Light

Daylight Motion Sensor ON OFF Switch

,

IP20 Motion Sensor ON OFF Switch

,

IP20 Daylight Motion Sensor

Leave a Message
Product Description

IP20 Daylight Motion Sensor ON OFF Switch Optional Detection Range



Optional Detection Range Microwave Motion Sensor Automatic ON/OFF Control Daylight Sensor



Features:

1. Operating voltage would be 120-277VAC 50/60Hz.

2. Have UL,FCC and RoHS certification.

3. Mounting height up to 12 meters/39.36 feet.

4. DIP Switch setting and ON/OFF function.

5. Optional detection range,time delay and daylight threshold.

6. Loop in and loop out for easy installation.

7. IP 20 with 5 years warranty.

8. Stand-by power is less than or equal to 1W.



Product Description

   Input voltage    120~277VAC 50/60Hz
   Switching capacity    Max.3.0A@120Vac,50/60Hz; Max.2.0A@277Vac,50/60Hz
   Stand-by power    ≤1W
   Detection area    10%/50%/75%/100%
   Hold time    5s/90s/5min/15min
   Daylight threshold    2Lux /10Lux /50Lux/Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Detection angle    30°-150°
   Mounting height    Max.12 meters/39.36 feet(Ceiling Mounted)
   Detection range    Radius,7 meters/22.96 feet(Ceiling Mounted)
   Motion detection    0.5~1.5m/s
Operating temperature    -20°C+60°C
   IP rating    IP20
   Warranty    5 years





       10-15M Highbay                                   ON/OFF Control                                      Dtection area





          Hold Time                                      Daylight Threshold                                 warranty 5 years



Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 8-12 meters.





Mechanical structure

With six DIP switch poles to set all parameters

With four poles to easily connect with LED driver and power supply

With two installation hole, easily fixed to the lighting fixture for end user.



Wiring diagram



Dimensions (mm)

The compact design is very suitable for ceiling installation.



DIP Switch Setting





Detection area

In this area,movement will be detected and able to trigger the sensor.

100% detection area is also known as the strong sensitivity.



Hold Time

The period of light keeping 100% brightness after

moving abjects leave the detection area.



Daylight threshold

Definition of the ambient brightness;only when the

ambient brightness is lower than the preset specific

lux amount,the sensor will work;when it's preset as

"disable",the sensor works everytime it detects motion

regardless the ambient brightness



Installation Precautions:

1. Microwave sensor can be installed in any lamp except the one with full metal shell.

2. The detected surface can not be shielded by metal objects.

3. Make sure the microwave module is completely exposed outside.

4. The detection surface of the snesor module shall be installed facing the detection area.

5. Should be kept away from the driver to avoid interference generation and lamp flashing.

6. Wiring must be strictly in accordance with the wiring diagram to avoid short circuit.



Appliction Environment:

1. Suitable for indoor installation to aviod false triggering due to external factors such as rain,wind or tree swing.

2. Shall not be installed in the place with all four metal shelters and small space(such as galvanized-iron roof).

3. Shall not be installation,so as to aviod false trigger caused by the lamp itself shaking.

4. Shall not be installation next to large operating machines such as ventilator/ceiling fan to aviod false triggering caused by machine vibration.



User Notes:

1. Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.
