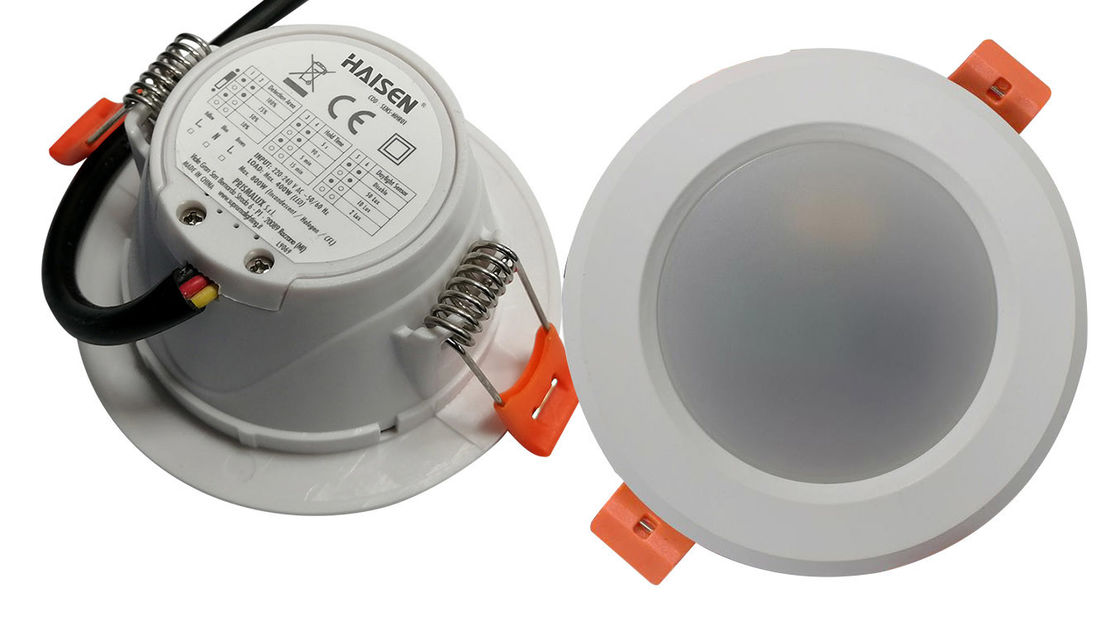

Downlight Exterior 800W ON OFF Control Sensor Wide Detection Angle

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE RoHS
Model Number: HD05S
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000pcs per month
Specifications Product Description Request A Quote
Certificate: CE RoHS
Input Voltage: 220~240VAC 50/60Hz
Max. Load: 800W (Incandescent Lamp)
Microwave Power: <0.3mW
Function: ON/OFF Sensor
Mounting Height: 2.5m-6m/6.56-19.68ft(ceiling Mounted)
Operating Temperature: -20°C~+55°C
IP Rating: IP20
High Light:

800W ON OFF Control Sensor


IP20 ON OFF Control Sensor


800W Downlight Motion Sensor

Product Description

Downlight Exterior 800W ON OFF Control Sensor Wide Detection Angle


Downlight Exterior Design Six Dip Swith Setting Max 800W Load ON/OFF Function Sensor



1. Automatically ON/OFF control when detect movement.

2. Daylight function to keep light off with sufficient brightness even detect movement.

3. Optional detection range, holdtime and daylight threshold.

4. Six Dip Switch setting inside.

5. Downlight compact size suitable for build-in installation.

6. Loop in and loop out for easy installation.

7. IP 20 with 5 years warranty.


Product Description

   Input voltage    220~240VAC 50/60Hz
   Switching capacity    Max.400W (Control gear); Max.800W (Incandescent lamp)
   Stand-by power    ≤0.5W
   Detection area    10%/50%/75%/100%
   Hold time    5s/90s/5min/15min
   Daylight threshold    2Lux /10Lux /50Lux/Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Detection angle    30°-150°
   Mounting height    2.5-6m/6.56-19.68ft (ceiling mounted)
   Detection range    Radius, 2-6m/6.56-19.68ft (ceiling mounted)
   Motion detection    0.5~1.5m/s
Operating temperature    Ta: -20°C+55°C
   IP rating






               ON/OFF Control                                 Detection area                              Daylight sensor


                       Hold time                                  Warranty 5 years

Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-6m.


Mechanical structure

With six DIP switch poles to set all parameters.

With Three poles to easily connect with LED driver and power supply.


Detection Area:

In this area, movement will be detected and able to trriger the sensor,100% detection area is known as the strong sensitivity.


Hold Time:

The period of light keeping 100% brightness after moving objects leave the detection area.


Daylight Threshold:

Definition of the ambient brightness;only when the ambient brightness is lower than the preset spcific lux amount,the sensor will work;when it's preset as "disable",the sensor works everytime it detects motion regardless the ambient brigtness.


User Notes:

1. Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.
