220V 240V AC Microwave Occupancy Sensor With CE SAA RoHS Approval
|
Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HAISEN |
| Certification: | CE SAA RoHS |
| Model Number: | HD02S-6 2 |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 100PCS |
| Price: | Negotiable |
| Packaging Details: | Bubble pack, paper flat, outer carton. |
| Delivery Time: | 1-3 days for sample order, 1-2 weeks for bulk order |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200,000pcs per month |
|
Detail Information |
|||
| Input Voltage: | 220~240VAC 50/60Hz | Certificate: | CE SAA RoHS |
|---|---|---|---|
| Max. Load: | 400W (LED Light) | Function: | ON/OFF Sensor |
| Size: | 125.8*32*36.4mm | Operating Temperature: | -20°C~+55°C |
| Mounting Height: | 2.5m-4m/8.2-13.12ft(ceiling Mounted) | IP Rating: | IP20 |
| High Light: | 240VAC Microwave Occupancy Sensor,SAA Ceiling Occupancy Sensor,240VAC Ceiling Occupancy Sensor |
||
Product Description
220V 240V AC Microwave Occupancy Sensor With CE SAA RoHS Approval
Ceiling Light Fixture Motion Sensor 220-240VAC Dip Switch At Back ON/OFF Function
Features:
1. Automatically ON/OFF control when detect movement.
2. Daylight function to keep light off with sufficient brightness even detect movement.
3. Optional detection range, holdtime and daylight threshold.
4. DIP Switch setting at back.
5. Liner compact size suitable for Tri-Proof light.
6. Loop in and loop out for easy installation.
7. IP 20 with 5 years warranty.
8. Certificate of RoHS / SAA / CE.
Product Description
|
Input voltage |
220~240VAC 50/60Hz |
|
Switching capacity |
Max.400W(incandescent lamp); Max.800W(control gear) |
|
Stand-by power |
≤0.5W |
|
Detection area |
10%/50%/75%/100% |
|
Hold time |
5s/90s/5min/15min |
|
Daylight threshold |
2Lux /10Lux /50Lux/Disable |
|
Microwave frequency |
5.8GHz±75MHz |
|
Microwave power |
<0.3mW |
|
Detection angle |
30°-150° |
|
Mounting height |
2.5-4m/8.2-13.12ft (ceiling mounted) |
|
Detection range |
ø4-10m/13.12-32.8ft (ceiling mounted)
|
|
Motion detection |
0.5~1.5m/s |
|
Operating temperature |
Ta: -20°C+55°C |
|
IP rating |
IP20 |
|
Warranty |
5 years |
Detection Range
This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.
Typical installation height 2.5-4m.

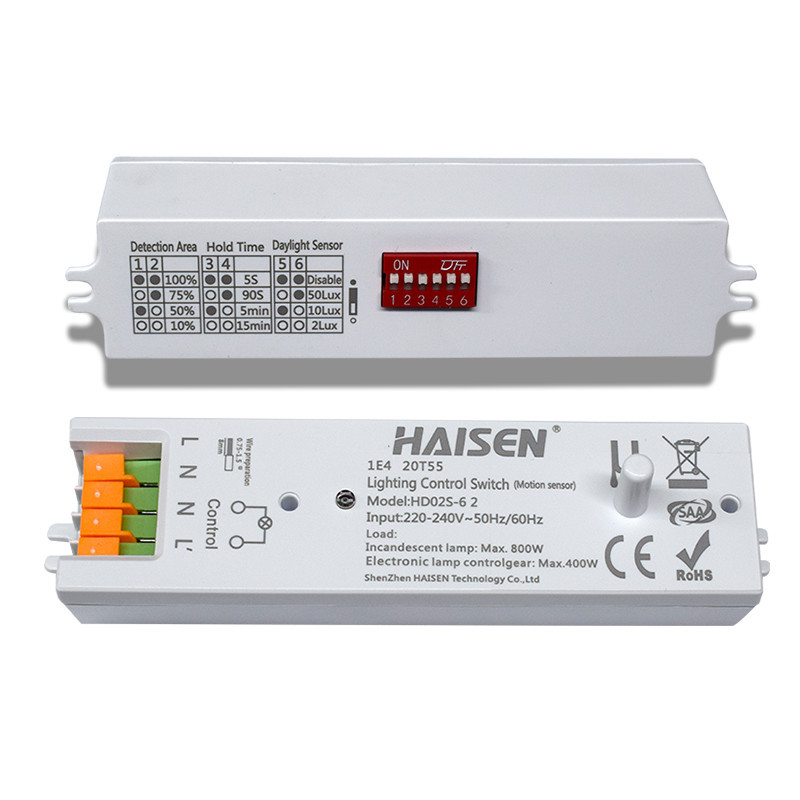

Mechanical structure
With six DIP switch poles to set all parameters.
With four poles to easily connect with LED driver and power supply.
4-pole pluggable clamp terminal(L,N,N,L')for 1.5mm² cable.
With two installation hole, easily fixed to the lighting fixture for end user.
Detection Area:
In this area, movement will be detected and able to trriger the sensor,100% detection area is known as the strong sensitivity.
Hold Time:
The period of light keeping 100% brightness after moving objects leave the detection area.
Daylight Threshold:
Definition of the ambient brightness;only when the ambient brightness is lower than the preset spcific lux amount,the sensor will work;when it's preset as "disable",the sensor works everytime it detects motion regardless the ambient brigtness.
