Lighting Control 100W Motion Sensor ON OFF Switch Optional Detection Range

Place of Origin China
Brand Name HAISEN
Certification CE SAA RoHS RED TUV
Model Number HD08S
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Input Voltage 220~240VAC 50/60Hz Certificate CE SAA RoHS RED TUV
Switching Capacity Max.100W Daylight Threshold 30Lux/Disable
Size 60.6*35.5*25.1mm Operating Temperature -25°C~+60°C
Mounting Height 2.5m-5m/8.2-16.4ft(ceiling Mounted) IP Rating IP20
High Light

100W Motion Sensor ON OFF Switch

,

30Lux Motion Sensor ON OFF Switch

,

30Lux Lighting Control Sensor

Leave a Message
Product Description

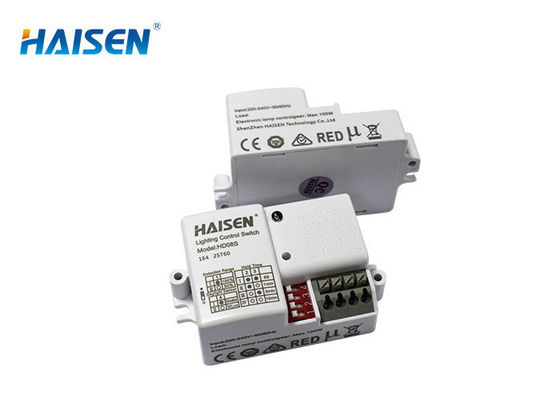

Lighting Control 100W Motion Sensor ON OFF Switch Optional Detection Range



Compact Size Four DIP Switch 220-240VAC Operating Voltage Microwave Motion Sensor



Features:

1. 4-pole pluggable clamp terminal(L,N,N,L') for 0.5-0.75mm² cable.

2. Microwave frequency would be 5.8GHz±75MHz.

3. Optional detection range, holdtime and daylight threshold.

4. Set the parameters which you want by 4 DIP Switch

5. Compact size suitable for ceiling light and tri-proof light.

6. Loop in and loop out for easy installation.

7. IP 20 with 5 years warranty.



Product Description

   Input voltage    220~240VAC 50/60Hz
   Switching capacity    Max.100W
   Stand-by power    ≤0.5W
   Detection area    50%/100%
   Hold time    5s/1min/3min/10min
   Daylight threshold    30Lux/Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Detection angle    30°-150°
   Mounting height    2.5-4m/8.2-13.12ft (ceiling mounted)
   Detection range
  ø4-10m/13.12-32.8ft (ceiling mounted)
   Motion detection    0.5~1.5m/s
Operating temperature    Ta: -20°C+55°C
   IP rating

   IP20

   Interfaces

   4-pole pluggable clamp terminal (L,N,N,L') for 0.5-0.75mm² cable.



Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-5m.



Mechanical structure

With four DIP switch poles to set all parameters.

With four poles to easily connect with LED driver and power supply.

  4-pole pluggable clamp terminal(L,N,N,L')for 0.5-0.75mm² cable.

With two installation hole, easily fixed to the lighting fixture for end user.



Detection Area:

In this area, movement will be detected and able to trriger the sensor,100% detection area is known as the strong sensitivity.



Hold Time:

The period of light keeping 100% brightness after moving objects leave the detection area.



Daylight Threshold:

Definition of the ambient brightness;only when the ambient brightness is lower than the preset spcific lux amount,the sensor will work;when it's preset as "disable",the sensor works everytime it detects motion regardless the ambient brigtness.



Application Demo

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.
The daylight threshold is set to "30lux,Disable"



With sufficient daylight,                 With insufficient daylight,             After the last detection and
even when motion detected,          when motion detected, light ON.   the present hold time
light remains OFF.                                                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after hold time.
Applications: Dim places such as Basement Parking, Underpass.



When motion is detected,              After people leave the detection    After the last detection and
the sensor will switch on the         area, light remains 100%                the present hold time
light to 100% brighteness.             brightness within hold time.          elapsed, light OFF.
