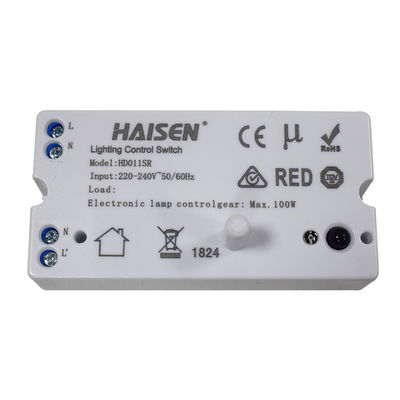

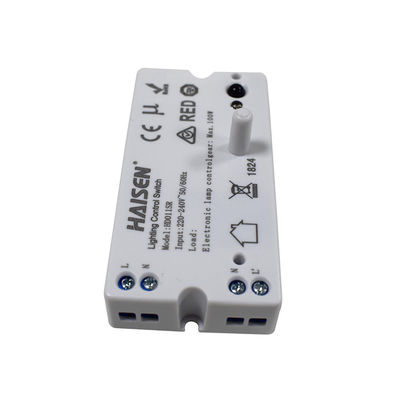

Rod Antenna On Off Switch Sensor 220-240VAC Operating Voltage White Color Shell

Place of Origin China
Brand Name HAISEN
Certification CE SAA RoHS RED TUV
Model Number HD011SR
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Input Voltage 220~240VAC 50/60Hz Certificate CE SAA RoHS RED TUV
Switching Capacity Max.100W Hold Time 5s/1min/5min/10min
Size 76.9*39.9*27.7mm Operating Temperature -25°C~+60°C
Mounting Height 2.5m-4m/8.2-13.12ft(ceiling Mounted) IP Rating IP20
High Light

microwave motion detector

,

light on off sensor

Leave a Message
Product Description

Rod Antenna 220-240VAC Operating Voltage White Shell Remote Control Microwave Motion Sensor



Features:

1. 4-pole pluggable clamp terminal(L,N,N,L') for 24-14AWG cable.

2. Microwave frequency would be 5.8GHz±75MHz.

3. Optional detection range, holdtime and daylight threshold.

4. Set the parameters which you want by remote controller.

5. Compact size suitable for ceiling light,tri-proof light and panel light.

6. Loop in and loop out for easy installation.

7. IP 20 with 5 years warranty.

8. Automatic ON/OFF control with daylight sensor.





Product Description

   Input voltage    220~240VAC 50/60Hz
   Switching capacity    Max.100W
   Stand-by power    ≤0.5W
   Detection area    50%/100%
   Hold time    5s/1min/5min/10min
   Daylight threshold    2Lux/10Lux/50Lux/Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Detection angle    30°-150°
   Mounting height    2.5-4m/8.2-13.12ft (ceiling mounted)
   Detection range
   ø4-10m/13.12-32.8ft (ceiling mounted)
   Motion detection    0.5~1.5m/s
Operating temperature    Ta: -25°C+60°C
   IP rating

   IP20

   Interfaces

   4-pole pluggable clamp termina(L,N,N,L') for 24-14AWG cable.





        Detection area                                                  Daylight sensor                                                        Hold time



      ON/OFF Control                                               Warranty 5 years                                                     Remote Control

Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-4m.

Mechanical structure

With remote control to set all parameters.

With four poles to easily connect with LED driver and power supply.

  4-pole pluggable clamp terminal(L,N,N,L')for 24-14AWG cable.

With two installation hole, easily fixed to the lighting fixture for end user.

Wiring diagram

Dimensions (mm)



Application Demo

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.
The daylight threshold is set to "2lux,10lux,50lux,Disable"

With sufficient daylight,                 With insufficient daylight,             After the last detection and
even when motion detected,          when motion detected, light ON.   the present hold time
light remains OFF.                                                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after hold time.
Applications: Dim places such as Basement Parking, Underpass.

When motion is detected,              After people leave the detection    After the last detection and
the sensor will switch on the         area, light remains 100%                the present hold time
light to 100% brighteness.             brightness within hold time.          elapsed, light OFF.



Installation Method:



User Notes:

1.Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.

Installation precautions:

1.Microwave sensor can be installed in any lamp except the one with full metal shell.

2.The detected surface cannot be shielded by metal objects.

3.Make sure the microwave module is completely exposed outside.

4.The detection surface of the sensor module shfall be installed facing the detection area.

5.Should be kept away from driver to avoid interference genaration and lamp flashing.

6.Wiring must be strictly in accordance with the wiring diagram to avoid short circuit.

Application Environment:

1.Suitable for indoor installation to avoid false triggering due to external factors such as rain,wind or tree swing.

2.Shall not be installed in the place with all four metal shelters and small space(such as galvanized-iron roof).

3.Shall note be mounted installation,so as to avoid false trigger caused by the lamp itself shaking.

4.Shall not be installed next to large operating machines such as ventilator/ceiling fan to avoid fase triggering caused by machine vibration.

Remote for ON/OFF Sensor:

Attension:

1.Please press"Reset" first if you want to change any setting.

2.When press any button,the light will be flicker,it means the setting was recorded by the sensor.

Application:
