IP20 Light On Off Sensor Daylight Sensor Planar Antenna Compact Size For Panel Light

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE SAA RoHS RED TUV
Model Number: HD410SR
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000pcs per month
Specifications Product Description Request A Quote
Specifications
Specifications
Input Voltage: 220~240VAC/120-277VAC 50Hz60Hz
Certificate: CE SAA RoHS RED TUV
Stand-by Power: ≤1W
Hold Time: 5s/30s/1min/3min/5min/10min/20min/30min
Size: 73.6mm In Diameter
Operating Temperature: -25°C~+60°C
Mounting Height: 2.5m-6m/8.2-19.68ft(ceiling Mounted)
IP Rating: IP20
High Light:

microwave motion detector

,

light on off sensor

Product Description

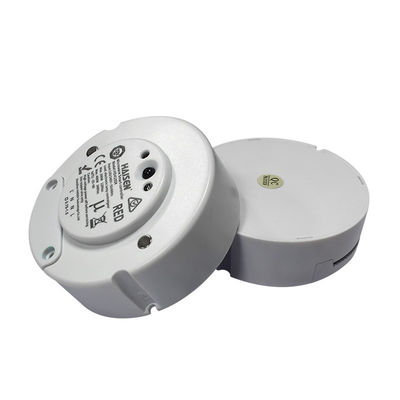

Automatic Motion Detected Daylight Sensor Planar Antenna For Panel Light



Features:

1. Automatic ON/OFF control with daylight sensor.

2. Microwave frequency would be 5.8GHz±75MHz.

3. Optional detection range, holdtime and daylight threshold.

4. Set the parameters which you want by remote controller.

5. Compact size suitable for panel light.

6. Loop in and loop out for easy installation.

7. IP 20 with 5 years warranty.

Product Description

   Input voltage    Europe version:220~240VAC 50/60Hz

American version:120-277VAC 50/60Hz
   Switching capacity    Europe version:Max.200W(120VAC),Max.400W(240VAC)
   American version:Max.3.0A@120VAC,Max.2.0A@277VAC
   Stand-by power    ≤1W
   Detection area    25%/50%/75%/100%
   Hold time    5s/30s/1min/3min/5min/10min/20min/30min
   Daylight threshold    2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Detection angle    30°-150°
   Mounting height    2.5-6m/8.2-19.68ft (ceiling mounted)
   Detection range
   Radius, 3-6m/9.84-19.68ft (ceiling mounted)
   Motion detection    0.5~1.5m/s
Operating temperature    Ta: -25°C+60°C
   IP rating

   IP20

   Interfaces

   4-pole pluggable clamp termina(L,N,N,L') for 1.5mm² cable.





        Detection area                                                  Daylight sensor                                                        Hold time



      ON/OFF Control                                               Warranty 5 years                                                     Remote Control

Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-6m.



Mechanical structure

With remote control to set all parameters.

With four poles to easily connect with LED driver and power supply.

  4-pole pluggable clamp terminal(L,N,N,L')for 1.5mm² cable.

With two installation hole and two magnet, easily fixed to the lighting fixture for end user.



Wiring diagram



Dimensions (mm)





Application Demo

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.



With sufficient daylight,                 With insufficient daylight,             After the last detection and
even when motion detected,          when motion detected, light ON.   the present hold time
light remains OFF.                                                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after hold time.
Applications: Dim places such as Basement Parking, Underpass.



When motion is detected,              After people leave the detection    After the last detection and
the sensor will switch on the         area, light remains 100%                the present hold time
light to 100% brighteness.             brightness within hold time.          elapsed, light OFF.



Installation Method:







User Notes:

1.Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.

Installation precautions:

1.Microwave sensor can be installed in any lamp except the one with full metal shell.

2.The detected surface cannot be shielded by metal objects.

3.Make sure the microwave module is completely exposed outside.

4.The detection surface of the sensor module shfall be installed facing the detection area.

5.Should be kept away from driver to avoid interference genaration and lamp flashing.

6.Wiring must be strictly in accordance with the wiring diagram to avoid short circuit.

Application Environment:

1.Suitable for indoor installation to avoid false triggering due to external factors such as rain,wind or tree swing.

2.Shall not be installed in the place with all four metal shelters and small space(such as galvanized-iron roof).

3.Shall note be mounted installation,so as to avoid false trigger caused by the lamp itself shaking.

4.Shall not be installed next to large operating machines such as ventilator/ceiling fan to avoid fase triggering caused by machine vibration.



Application:
