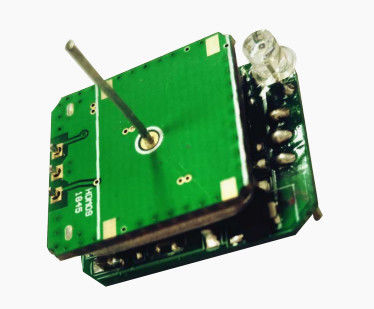

Bare Board 30Lux IC Sensor ON OFF ControlDaylight Motion Detector

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD043-01S
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details bubble pack, paper flat, drying agent,outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Detection Area 100% Hold Time 1min
Daylight Sensor 30Lux Mounting Height Max,4m (ceiling Mounted)
Detection Range ø2-6m(ceiling Mounted) Operating Voltage 12VDC±5%
High Light

Daylight 30Lux IC Sensor

,

30Lux Daylight Motion Detector

,

30Lux Motion Detector IC

Leave a Message
Product Description

Bare Board 30Lux IC Sensor ON OFF ControlDaylight Motion Detector



Bare Board 12VDC Input ON/OFF Control RoHS CE Certificate motion sensor



Technical date of ON/OFF sensor:

Operating voltage 12VDC±5%
Stand-by power <0.5W
Output 5V PWM
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Operating temperature -20°C~+60°C
Warranty 5 years


Application:

Automatically ON/OFF function:
  In a well-lit environment, it can detect the movement of objects in time and still keep the lights off
  When the external environment starts to dim and is lower than the preset light sensitivity value, the motion of an object is detected. The sensor then controls the lamp and keeps the light on
  When the moving object leaves the detection area, the lamp will enter the delay stage (keep the brightness when triggered). After the delay time, the lamp will keep the off state and wait for the next trigger.

Parameters of ON/OFF sensor:
Detection area 100%
Hold time 1min
Daylight threshold 30Lux
Mounting height Max,4m (ceiling mounted)
Detection range ø2-6m(ceiling mounted)
Detection angle 30°~150°
Motion detection 0.5~1.5m/s



1. Detection pattern(for ceiling mounting)

Mounting height:Max,4m/13.12ft (ceiling mounted)



2. Dimensions pattern

 Sensor size:24*20*19.7mm



3. Wiring diagram

The output signal is 5v PWM output.
