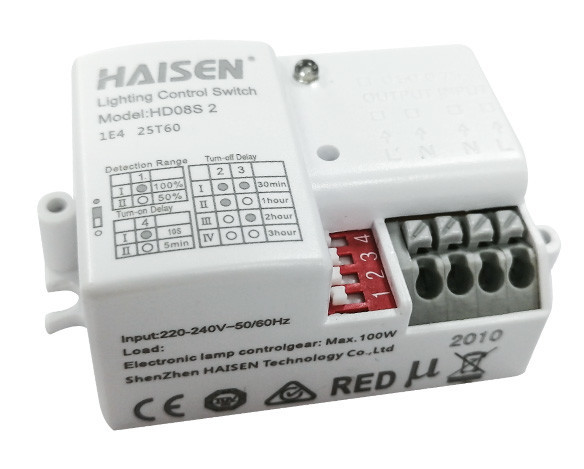

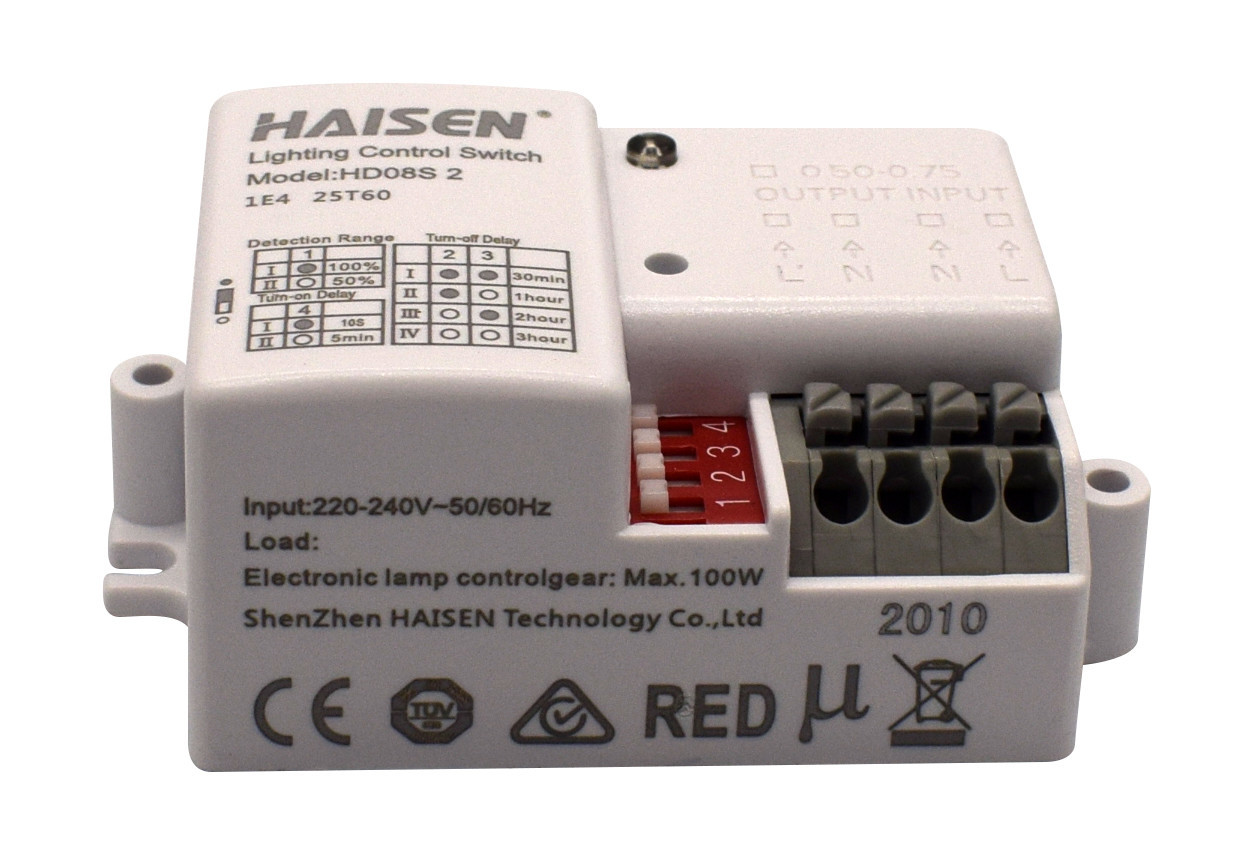

Built-in 100W Load Economic ON/OFF Microwave Sensor 220-240VAC

Place of Origin China
Brand Name HAISEN
Certification CE TUV RED
Model Number HD08S
Minimum Order Quantity 100PCS
Price To be negotiated
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Product Name ON/OFF Sensor Frequency 5.8GHz±75MHz
Switching Capacity Max.100W Stand-by Power ≤0.5W
Microwave Power <0.3mW Motion Detection 0.5~1.5m/s
Warranty 5 Years Detection Range Radius, 3-6m/9.84-19.68ft (ceiling Mounted)
High Light

Microwave motion sensor on off

,

100W Load Economic Microwave Sensor

,

100% sensitivity Microwave Sensor

Leave a Message
Product Description

Built-in 100W Load Economic ON/OFF Microwave Sensor 220-240VAC


ON/OFF Switch Sensor Detection Range Application:
100% sensitivity: the radius will be 4-6m with 100% sensitivity, which means it's suitable to be used in the corrider, office and parking lot.
50% sensitivity: the radius will be 2-3m, suitable to be used in the living room, restroom and indepedent office.

Detection RangeDetection RadiusApplication Site
100% sensitivity4-6mcorrider, office and parking lot.
50% sensitivity2-3mliving room, restroom and indepedent office







ON/OFF Switch Sensor Wiring diagram
With 220-240VAC input and output, HD08S could be connected between the city power and LED driver. The connection will be :
City power - Microwave Sensor - LED Driver.


ON/OFF Switch Sensor Mechanical structure(mm)



ON/OFF Switch Sensor Features:

  • HD08S On/Off Control.
  • Super Compact size of 60.6*35.5*25.1mm, suitable for different led fittings.
  • Unique design with loop in and loop out, easy to instal.Detection area, hold time and daylight sensor are selectable via DIP switch.
  • 4-pole press-in terminal (L, N,N,L′),easy assembly.
  • Detection area, hold time and daylight threshold can be precisely set via DIP switch.

ON/OFF Switch Sensor Specification:

Operating voltage220~240 VAC 50/60Hz
Detection area50%/100%
Hold time5s/60s/3min/10min
Daylight threshold30Lux/Disable
Interfaces4-pole pluggable clamp terminal(L,N,N,L’) for 0.75-1.5mm² cable
Detection angle30°-150°
Operating temperature-20°C~+60°C
IP ratingIP20
Life time50,000 hours



ON/OFF Switch Sensor Application

corridor, parking lot , warehouse ,etc
