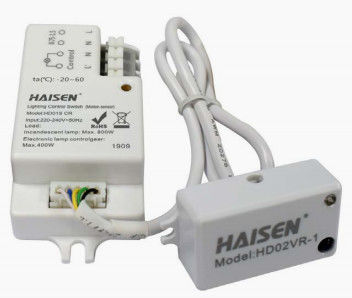

Planar Antenna 10Lux 50Lux Motion Sensor On Off Switch

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD01S CR
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details bubble pack, paper flat, drying agent,outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Function Setting By Remote Control(HD03R) Microwave Power <0.3mW
Motion Detection 0.5~1.5m/s Detection Range Radius, 2-6m/6.56-19.68ft (ceiling Mounted)
Mounting Height 2.5-6m/6.56-19.68ft (ceiling Mounted) Daylight Threshold 2Lux/10Lux/50Lux/Disable
Hold Time 5s/1min/5min/10min Voltage 220-240VAC,50Hz/60Hz
High Light

50Lux Motion Sensor On Off Switch

,

10Lux Motion Sensor On Off Switch

,

240VAC Motion Sensor On Off Switch

Leave a Message
Product Description

Planar Antenna 10Lux 50Lux Motion Sensor On Off Switch



220-240VAC Planar Antenna Motion Sneosr ON/OFF Function For Ceiling/Triproof Light



Features of ON/OFF Sensor:

1. Detached Design, Remote control setting.

2. Compact sized particularly suitable for Ceiling lights or tri-proof lights.

3. Optional detection range, holdtime and daylight threshold.

4. Mounting height up to 6m and detection range would be Radius, 2-6m

5. 5 years warranty.



Installation of ON/OFF sensor:

There are two ways for the separation head of the inductor to appear, base outlet and side outlet, which is more convenient for customers to install on the lamp.

Detection angle ≤150°(Without glass)
Detection range Diameters 10m*Hight 6m(ceiling mounted)
Motion detection 0.5~1.5m/s
Mounting height Less than or equal to 6m(ceiling mounted)







Dimensions (Unit: mm) of ON/OFF sensor:
Size L*W*H:80.2*36.6*23MM/sensor head51*24.4*14MM
Operating temperature -20°C~+60°C
Warranty 5 years
Function setting By remote control(HD03R)
IP grade IP 20





Mechanical structure of ON/OFF sensor:

Certificate RoHS CE
Detection area
100%/75%/50%/25%
Setting mode Remote control(match HD03R)
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable


Wiring diagram of ON/OFF sensor:



Control mode ON/OFF
Connection type Amphenol connector(L,N,N,L')
Stand-by power ≤0.5W
Operating voltage 220-240VAC 50Hz/60Hz
Switch capacity External induction head;
Max.400W(Control gear); Max.800W(Incandescent lamp)







Application of ON/OFF motion sensor:
1. Automatically ON/OFF function:
With sufficient daylight,even when motion detected,light remains OFF.
With insufficient daylight,when motion detected,light ON.
After the last detection,and the present hold time elapsed,light OFF.

2. No daylight function
When the daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.

When motion is detected, the sensor will switch on the light to 100% brighteness.
After people leave the detection area, light remains 100% brightness within hold time.
After the last detection and the present hold time elapsed, light OFF.
