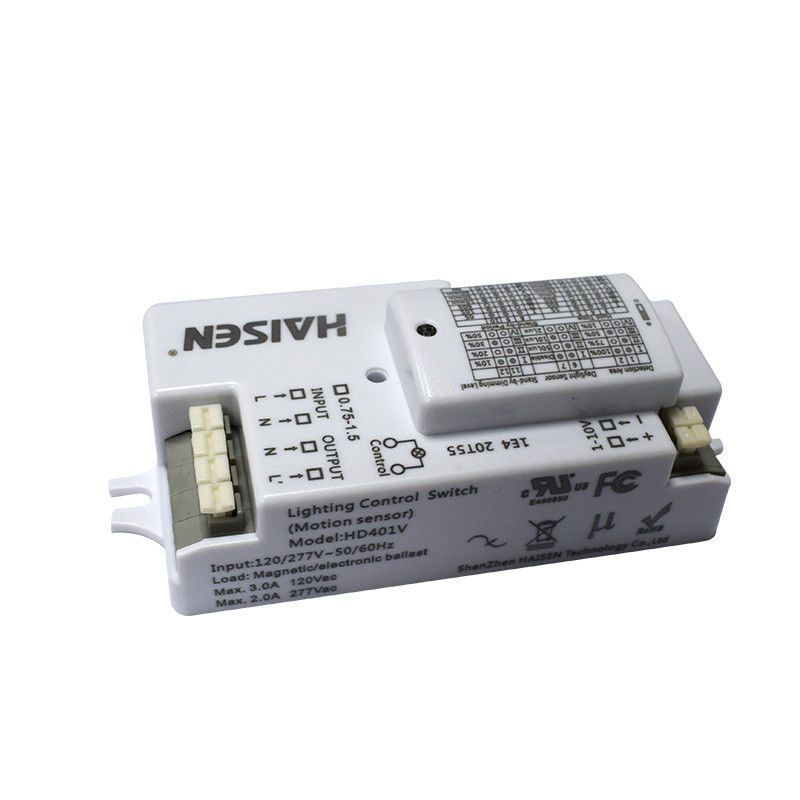

Plastic Cover 5.8G Dimmable Motion Sensor Ceiling Light Type

Place of Origin China
Brand Name HAISEN
Certification RoHS FCC UL
Model Number HD401V
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details bubble pack, paper flat, drying agent,outer carton.
Delivery Time 1-3 days for sample order, 1-3 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Item Type Ceiling Light Input Voltage(v) AC 120-277
Working Lifetime(hour) 50000 Hours Working Temperature(℃) -20°C~+60°C
Application Basement Parking, Underpass,Corridor, Staircase Warranty 5 Years
Product Name 5.8G Dimmable Motion Sensor Output 1-10v Dimming
High Light

10V Dimmable Motion Sensor

,

5.8G Dimmable Motion Sensor

,

10V Ceiling Light Motion Sensor

Leave a Message
Product Description

Plastic Cover 5.8G Dimmable Motion Sensor Ceiling Light Type



1-10V Dimming Control Plastic Cover Ceiling Light Dimmable Motions Sensor



Dimmable Motion Sensor Product Specifications:

Nominal voltage 120-277VAC 50Hz/60Hz
Connector Six press terminals(L,N,N,L',1-10V)
Switching capacity Max,3.0A@120Vac, 50/60Hz; Max,2.0A@277Vac, 50/60Hz
zero-cross detection Zero crossing detection, less than 80VAC
Power dissipation <1.3W
Control method ON/OFF / 1-10V dimming
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Function setting mode By 12 dial codes
Motion detection 0.5~1.5m/s
IP grade IP 20
Warranty 5 years
Operating termperature -20°C~+60°C

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by
period 0s/Stand-by dimming level 10%.



Dimmable Motion Sensor Mechanical structure:

  1. Connector:6 press terminals (N.N.L.L '.1-10v)
2. Installation hole:Four mounting holes for easy fixation in the lamps
3. Daylight sensor:Strain the light intensity, convert the light signal into electrical signal, control the switch of the lamp
4. Antenna module:Detect motion signals of objects
5. Dial code:detection area, hold time, stand-by dimming level,stand-by period and daylight thresholds can be set by dialing
  The shell size is 103*45*31mm,during installation,just stick the module out and make a small hole in the lamp(40.1*24.7mm).


This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.Typical installation height 8-12m.

1. Detection angle:30°-150°(without glass)

2. Detection range:Radius:8m/26.24ft*Height:12m/39.36ft(Max)

3. Mounting height:ceiling mounted≤12m/39.36ft



1. Connector:6 press terminals (L.N.N..L '.1-10V)

2. Control method:ON/OFF , 1-10V dimming





Setting:



Detection area(1,2):

10%/50%/75%/100%

In this area, movement will be detected and able to trigger the sensor. 100% detection area is also known as the strong sensitvity.


Hold time(3,4,5):

5s/30s/1min/5min/

10min/20min/30min

The period of light keeping 100% brightness after moving objects leave the detection area.


Daylight threshold(6,7):

2Lux/10Lux/50Lux/Disable

Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable", the sensor works everytime it detects motion regardless the
ambient brightness.


Stand-by period(8,9,10):
0s/10s/1min/10min/

30min/1H/∞


The period of light keeping low output before it's completely switched off. When it's preset as"∞“, the light always keep at low output if no movement in the detection area and doesn't turn off.


Stand-by dimming level(11,12):

10%/20%/30%/50%

The definition of low output in the standby period.




Application Environment:
1. Suitable for indoor installation to avoid false triggering due to external factors such as rain, wind or tree swing.
2. Shall not be installed in the place with all four metal shelters and small space (such as galvanized-iron roof ).
3. Shall note be mounted installation, so as to avoid false trigger caused by the lamp itself shaking.
4. Shall not be installed next to large operating machines such as ventilator/ceiling fan to avoid false triggering caused by machine vibration.

1. Automatically ON/OFF function:
Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.

With sufficient daylight,
even when motion detected,
light remains OFF.

With insufficient daylight,
when motion detected, light
ON.

After the last detection and
the present hold time
elapsed, light OFF.




2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.

When motion is detected,
the sensor will switch on the
light to 100% brighteness.

After people leave the detection
area, light remains 100%
brightness within hold time.

After the last detection and
the present hold time
elapsed, light OFF.

3. Function Demo - Dimmable control/Corridor function

With sufficient daylight,
even when motion
detected, light remains
OFF.

With insufficient
daylight, when motion
detected, light ON.

After last detection, the
light will be dimmed
down to the stand-by
dimming level
(10%,20%,30% or 50%)
after holdtime.

After the stand-by
period, light OFF.

Dimmable Motion Sensor Features :

1. During installation,just stick the module out and make a small hole in the lamp(40.1*24.7mm).

2. 5.8GHz microwave motion sensor with dimmable function.

3. Suitable for Ceiling lights or Bulkhead.

4. 5 years warranty.

5. 8-12m mounting height.

6. Four mounting holes make it easier for sensors to attach to the lamp.


Installation precautions:
1. Microwave sensor can be installed in any lamp except the one with full metal shell.
2. The detected surface cannot be shielded by metal objects.
3. Make sure the microwave module is kept the same
4. The detection surface of the sensor module shall be installed facing the detection area.
5. Should be kept away from the driver to avoid interference generation and lamp flashing.
6. Wiring must be strictly in accordance with the wiring diagram to avoid short circuit.
