IP20 Detached DALI Multi Sensor On Off Switch 50000 Hours Life Time

Product Details:
Place of Origin: CHINA
Brand Name: HAISEN
Certification: CE
Model Number: HDD02
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Individual white box, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 2-3 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000pcs per month
Specifications Product Description Request A Quote
Specifications
Specifications
Operating Voltage: 120-277VAC,50Hz/60Hz
Control Method: On/off / 1-10V Dimming
Certificate: CE
IP Rating: IP20
Mounting Height: Max.6M
Detection Range: Max. 12M
High Light:

Detached DALI Multi Sensor

,

IP20 DALI Multi Sensor

,

DALI Dimmable Occupancy Sensor

Product Description

IP20 Detached DALI Multi Sensor On Off Switch 50000 Hours Life Time



Detached DALI Motion Sensor IP20 Built In Dimmable Sensor 50000 Hours Life Time

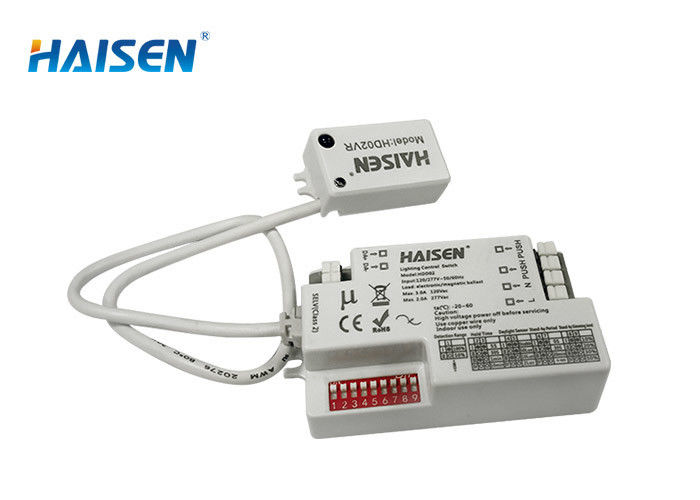

HDD02 - DALI Sensor with Detached Design and Voltage of 120-277VAC IP20 Built-in Installation Dimmable Sensor with Mounting Height of 6M x 12M Detection range Which could Match DALI Driver.



Features:

1. Detached small module to be installed inside of the lighting.

2. Wide range Voltage of 120-277VAC with dimming function.

3. DALI Driver matching.

4. Height (6M) x Range (12M)

5. IP20, CE certificate.



Detailed Product Description

Operating voltage 120-277VAC, 50Hz/60Hz
Switching capacity

Max,3.0A@120Vac,50/60Hz; Max,2.0A@277Vac,50/60Hz

Stand-by power ≤1W
Detection area 50%/100%
Hold time 5s/30s/1min/10min
Daylight threshold 2Lux / 10Lux / 50Lux / Disable
Microwave frequency 5.8GHz±75MHz
Stand-by Period 0s/30s/20min/+∞
Mounting height Max.6m
Detection range Max.ø12m
Stand-by Dimming Level

10%, 20%, 30%, 50%

Operating temperature -20°C~+60°C
IP rating IP20
Detection angle 30°~150°
Motion detection 0.5~1.5m/s
Life time 50,000 hours
Warranty 5 years

IP20 Detached DALI Multi Sensor On Off Switch 50000 Hours Life Time 0

Wiring diagram

With clear indication for the DALI± and LED± terminal to be connected with DALI driver and power supply seperately.



Mechanical structure and Installation(mm)



Dimension(mm)

Note: Motion sensor setting and dimming setting please refer to remote control HD03R. HD02VR Wire diameter 4mm,Standard Version Cable Length 485±10mm(can be customized).



Detection coverage

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 8m.



DIP Switch Settings



Detection area     Hold Time             Daylight threshold     Stand-by Period      Stand-by
In this area,         The period of         Definition of the         The period of light    dimming level
movement will     light keeping         ambient brightness;    keeping low output   The definition of
be detected         100% brightness     only when the             before it's                 low output in the
and able to          after moving          ambient brightness is  completely                standby period.
trigger the           objects leave the    lower than the preset  switched off. When
sensor. 100%       detection area.       specific lux amount,    it's preset as"∞"
detection area                                    the sensor will work;   the light always
is also known                                     when it's preset as       keep at low output
as the strong                                     "disable", the sensor    if no movement in
sensitvity.                                           works everytime it      the detection area

                                                           detects motion           and doesn't turn
                                                           regardless the             off.
                                                          ambient brightness.

Application Function Demo

1. Automatically ON/OFF function:
Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.



2. No daylight detection function:

The daylight threshold is set to "Disable".
Light on when detect movement. After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.



3. Function Demo - Dimmable control / Corridor Function:



Four Installation Methods & Instructions



Application

1. Microwave sensor can be installed in any lamp except the one with full metal shell.
2. The detected surface cannot be shielded by metal objects.
3. Make sure the microwave module is completely exposed outside.
4. The detection surface of the sensor module shall be installed facing the detection area.
