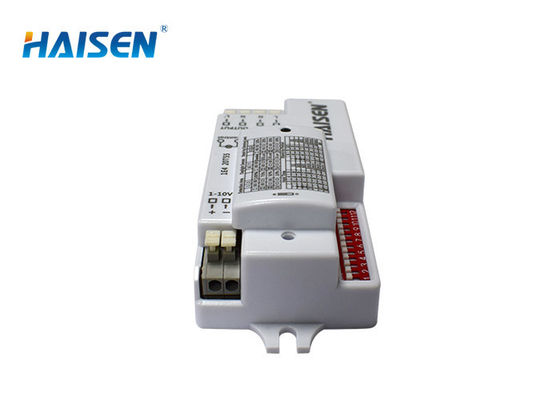

Indoor Ceiling Mounted Dimmable Motion Sensor 50 60Hz Compact Design

Place of Origin China
Brand Name HAISEN
Certification UL FCC
Model Number HD401V
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Product Name Microwave Mition Sensor Operating Voltage 120~277 VAC 50/60Hz
Switching Capacity Max.3.0A@120Vac,Max.2.0A@277Vac Interfaces 6-pole Pluggable Clamp Terminal (L,N,N,L’,1-10v+,1-10v-)for 0.75-1.5mm2 Cable
Mounting Height Max.15m(ceiling Mounted) Detection Range Max.ø12m(ceiling Mounted)
Desgin Compact Design Installation Interior Installed
High Light

lighting control switch motion sensor

,

dimmable pir sensor

Leave a Message
Product Description

Ceiling Mounted Motion Sensor IP20 Dimmable Motion Sensor Switching 0-10V Indoor

Detailed Product Description

   Operating voltage    120~277 VAC 50/60Hz
   Switching capacity    Max.3.0A@120Vac,Max.2.0A@277Vac
   Stand-by power    <1W
   Detection area    10%/50%/75%/100%
   Hold time    5s/30s/1min/5min/10min/20min/30min
   Stand-by period    0s/10s/1min/10min/30min/1h/∞
   Stand-by dimming level   10%/20%/30%/50%
   Daylight threshold    2Lux/10Lux/50Lux/Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Interfaces    6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-)for 0.75-1.5mm2 cable
   Mounting height    Max.15m(ceiling mounted)
   Detection range    Max.ø12m(ceiling mounted)
   Operating temperature    -20°C~+55°C
   Detection angle    30°-150°
   Approval    ROHS,UL,FCC
   IP rating    IP20
   Installation    Interior installed
   Package    Bubble pack, paper flat, outer carton.
   Mounting size    103X45X31mm
   Life time    50,000 hours
   Warranty

   5 years








Wiring diagram



Mechanical structure(mm)

DIP Switch Setting



Detection coverage

Demo



Application


Stairwell, Corridor, Balcony, Pathway, etc.
