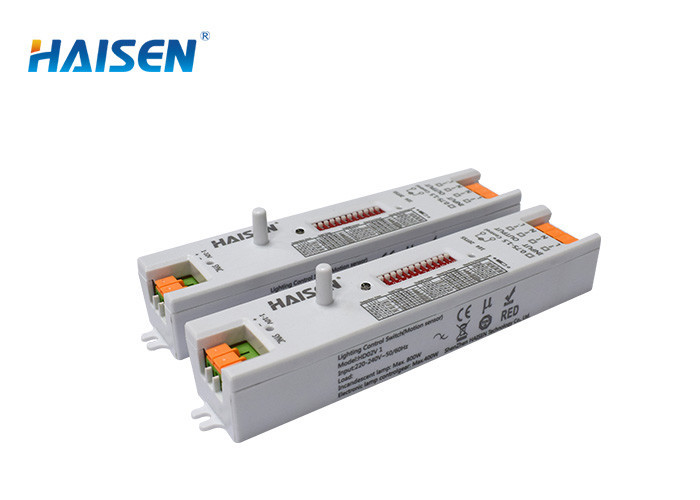

Ultra–Slim Design Dimmable Motion Sensor 220-240VAC For Triproof Batten Light

Place of Origin China
Brand Name HAISEN
Certification CE
Model Number HD02V 1
Minimum Order Quantity 100PCS
Price Negotiation
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Function Dimmable Microwave Sensor Application Triproof Or Batten Light
Warranty 5 Years Design Ultra–Slim Design
Mounting Height Max.4.5m(ceiling Mounted) Max.3m(wall Mounted) Detection Range Max.ø12m(ceiling Mounted) Max.10m(wall Mounted)
High Light

dimmable occupancy sensor

,

dimmable pir sensor

Leave a Message
Product Description

Ultra–Slim Design Dimmable Motion Sensor 220-240VAC For Triproof Batten Light

Product Description

   Operating voltage    220~240 VAC 50/60Hz
   Switching capacity    Max.400W(Control gear) Max.800W(Incandescent lamp)
   Stand-by power    ≤1W
   Detection area    10%/50%/75%/100%
   Hold time    5s/30s/1min/5min/10min/20min/30min
   Stand-by period    0s/10s/1min/10min/30min/1h/∞
   Stand-by dimming level    10%/20%/30%/50%
   Daylight threshold    2Lux/10Lux/50Lux/Disable
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Interfaces    7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm2 cable
   Mounting height    Max.4.5m(ceiling mounted) Max.3m(wall mounted)
   Detection range    Max.ø12m(ceiling mounted) Max.10m(wall mounted)
   Detection angle    30°-150°
   Operating temperature    -20°C~+55°C
   IP rating    IP20
   Life time    50,000 hours
   Warranty    5 years



Wiring diagram

Mechanical structure(mm)

DIP Switch Setting

Detection coverage

Demo

Application
