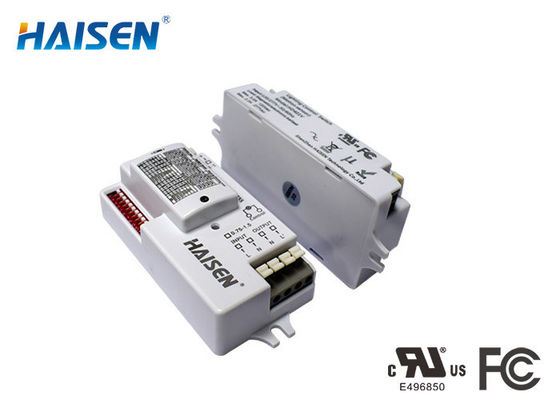

DIP Switch Setting Dimmable Motion Sensor High Frequency IP20 For Ceiling Light

Place of Origin China
Brand Name HAISEN
Certification UL, FCC, RoHS
Model Number HD401V
Minimum Order Quantity 100PCS
Price Negociation
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order.
Payment Terms L/C, T/T, Western Union
Supply Ability 100000PCS per month
Product Details
Switching Capacity Max.3.0A@120Vac,Max.2.0A@277Vac Hold Time 5s/30s/1min/5min/10min/20min/30min
Stand-by Period 0s/10s/1min/10min/30min/1h/∞ Stand-by Dimming Level 10%/20%/30%/50%
Operating Temperature -20°C~+55°C Size 103X45X31mm
High Light

lighting control switch motion sensor

,

dimmable occupancy sensor

Leave a Message
Product Description

Dimmable Sensor For Ceiling Light DIP Switch Setting High Frequency IP20







Features:

  • High frequency 5.8GHz±75MHz.
  • Dimmable sensor for ceiling light.
  • Have passed the CE, FCC and RoHS certificate.
  • Make DIP switch setting control for stand-by period and stand-by dimming level.








Specification:

Operating voltage 120~277 VAC 50/60Hz
Switching capacity Max.3.0A@120Vac,Max.2.0A@277Vac
Stand-by power <1W
Detection area 10%/50%/75%/100%
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by dimming level 10%/20%/30%/50%
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Interfaces 6-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-)for 0.75-1.5mm 2 cable
Mounting height Max.15m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.20m(wall mounted)
Detection angle 30°-150°
Size 103X45X31mm
IP rating IP20
Package Bubble pack, paper flat, outer carton.



Wiring diagram:

Mechanical Structure(mm):

Detection Coverage :

Settings:

Function Demo :

Aplication:
