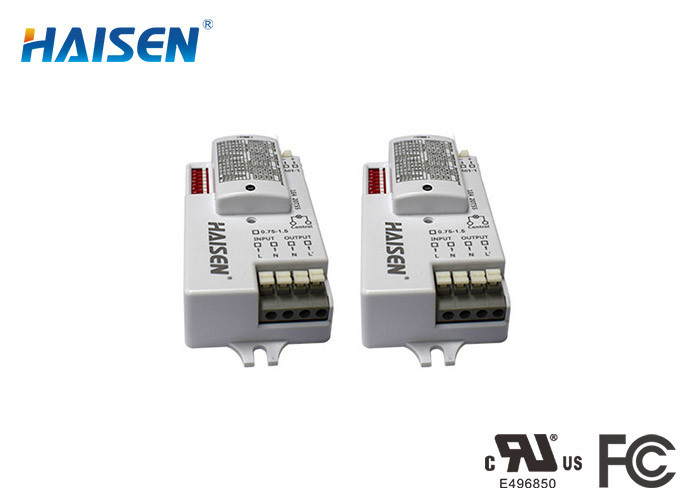

Dimmable Movement Lighting Control Switch Motion Sensor Energy Saving

Place of Origin China
Brand Name HAISEN
Certification UL, FCC, RoHS
Model Number HD401V
Minimum Order Quantity 100PCS
Price Negociation
Packaging Details Bubble pack, package flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order.
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Microwave Frequency 5.8GHz±75MHz Microwave Power <0.3mW
Approval UL, FCC, RoHS IP Rating IP20
Detection Angle 30°-150° Size 103X45X31mm
High Light

lighting control switch motion sensor

,

dimmable occupancy sensor

Leave a Message
Product Description

DIP Switch Setting Detector Microwave Dimmable Movement Sensor For Ceiling Light







Features:

  • High frequency 5.8GHz±75MHz.
  • Dimmable sensor for ceiling light.
  • Have passed the CE, FCC and RoHS certificate.
  • DIP switch setting control for stand-by period and stand-by dimming level.






Specification:

Input Voltage Range 120-277Vac 50/60Hz
Output switching capacity Max.3.0A@120Vac,Max.2.0A@277Vac
Stand-by Power <1W
Sensor Parameters Hold time 5s/30s/1min/5min/10min/20min/30min
Detection Area 10%/50%/75%/100%
Daylight Sensor 2Lux/10Lux/50Lux/Disable
Mounting Height Max.15m(ceiling mounted);Max.3m(wall mounted)Max.15m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.20m(wall mounted)
Wireless Parameters Operating Frequency 5.8GHz±75MHz
Function
Operating Environment Operating Temperature -20°C~+55°C
Safety & EMC Approval UL, FCC, RoHS
Others Packaging Requirement Bubble pack, paper flat, outer carton.
IP Rating IP20
Life 50000h
Warranty 5 years



Wiring diagram:

Mechanical Structure(mm):

Detection Coverage :

Settings:

Function Demo :

Aplication:
