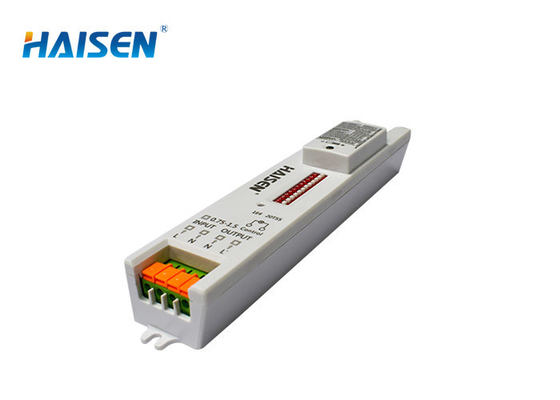

Small Movement Detectors For Lighting Control , Interior Motion Detector

Place of Origin China
Brand Name HAISEN
Certification UL RoHS FCC
Model Number HD402V
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs
Product Details
Product Name Microwave Motion Sensor Operating Voltage 120~277 VAC 50/60Hz
Stand-by Power <1.5W Microwave Power <0.3mW
Operating Temperature -20°C~+55°C IP Rating IP Rating
High Light

lighting control switch motion sensor

,

dimmable pir sensor

Leave a Message
Product Description

UL RoHS FCC Certificate Dimming Function Microwave Motion Sensor IP20







Features:

  • High frequency 5.8GHz±75MHz.
  • On/off function and dimming function for tri-proof light.
  • DIP switch setting control.
  • Have paseed UL, RoHS and FCC certificate.
  • Dimmable sensor for warehouse light and car parking light ect.





Detailed Product Description

Operating voltage 120~277 VAC 50/60Hz
Stand-by dimming level 10%/20%/30%/50%
Stand-by power <1W
Detection area 10%/50%/75%/100%
Hold time 5s/30s/1min/5min/10min/20min/30min
Stand-by period 0s/10s/1min/10min/30min/1h/∞
Daylight threshold 2Lux/10Lux/50Lux/Disable
Switching capacity Max.3.0A@120Vac,Max.2.0A@277Vac
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Interfaces 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable
Mounting height Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Operating temperature -20°C~+55°C
Detection angle 30°-150°
IP rating IP20





Wiring diagram



Mechanical structure(mm)



DIP switch setting



Detection coverage

Function demo

Apllication
