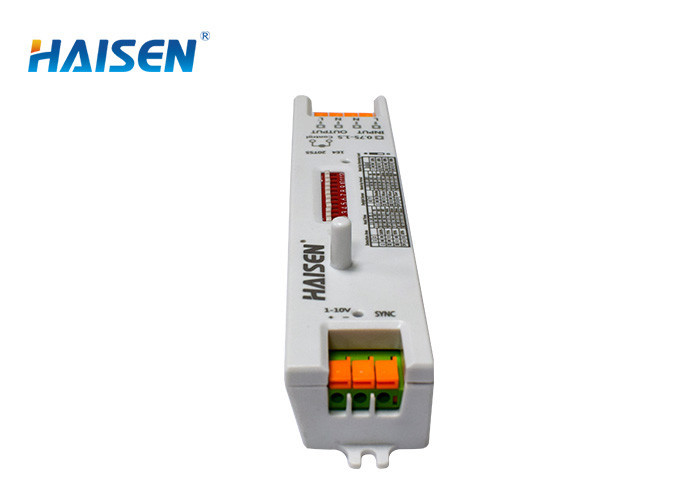

Microwave Movement Dimmable Motion Sensor Small With SYNC Interface

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD402V 1
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs per month
Product Details
Product Name Microwave Motion Sensor Operating Voltage 120~277VAC 50/60Hz
Stand-by Power <1W IP Rating IP20
Detection Angle 30°-150° Operating Temperature -20°C~+55°C
High Light

lighting control switch motion sensor

,

dimmable occupancy sensor

Leave a Message
Product Description

Rod Antenna 1-10V Dimming Function Microwave Movement Sensor





Features:

  • Ultra-slim design for Tri-proof LED light.
  • Patented needle antenna makes reliable detecting, avoid false trigger when sensor built-in backside of metal LED plate.
  • 5.8GHz high frequency microwave.
  • In many lighting places, several sensors are connected to a group of lamps. People need functions that trigger one of sensors to make the group of lamps to switch on / off or dim simultaneously. This is called 'Group control'. HD402V 1 is specially designed for the function. The SYNC interface in the sensor can transmit motion signal to other sensors connected together, and then achieve group control function.





Specifications

Operating voltage 120~277 VAC 50/60Hz
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by power <1W
Detection area 10%/50%/75%/100%
Hold time 5s/30s/1min/5min/10min/20min/30min
Stand-by period 0s/10s/1min/10min/30min/1h/∞
Stand-by dimming level 10%/20%/30%/50%
Switching capacity Max.3.0A,120Vac; Max.2.0A,277Vac
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Interfaces 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable
Mounting height Max.6m(ceiling mounted) Max.3m(wall mounted)
Detection range Max.ø14m(ceiling mounted) Max.10m(wall mounted)
Operating temperature -20°C~+55°C
Detection angle 30°-150°





Wiring diagram

Mechanical structure(mm)

DIP Switch Setting





Detection coverage

Demo



Application
