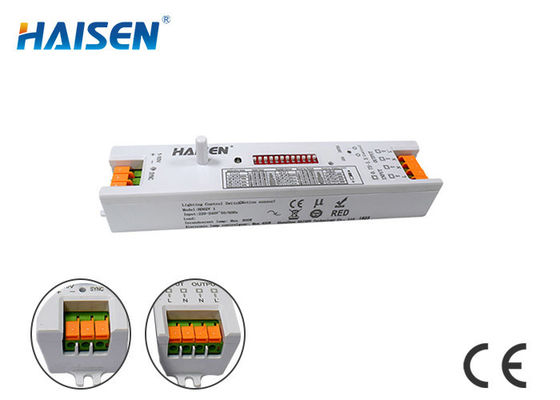

Dimmable Sensor For Triproof Light High Frequency 5.8GHz Ultra–Slim Design

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD02V 1
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Microwave Frequency 5.8GHz±75MHz Microwave Power <0.3mW
Mounting Height Max.4.5m(ceiling Mounted) Detection Range Max.ø12m(ceiling Mounted)
Approval CE RoHS Installation Installed Inside Lamps
High Light

lighting control switch motion sensor

,

dimmable pir sensor

Leave a Message
Product Description

Dimmable Sensor For Triproof Light High Frequency 5.8GHz Ultra–Slim Design





Features:

  • On/off function and dimming function.
  • 7-pole pluggable clamp terminal (L,N,N,L’,1-10v+,1-10v-,SNYC) for 0.75-1.5mm 2 cable.
  • SYNC function: all lights connected to this sensor interface can be controlled synchronously.
  • Patented rod antenna makes reliable detecting, avoid false trigger when sensor built-in backside of metal LED plate.
  • Automatic switching based on motion and ambient light level.
  • High frequency 5.8GHz and detection angle 30°-150°.



Product Description

Wireless Parameters Operating Frequency 5.8 GHz ±75 MHz
Function 0N/0FF+dimming function
Operating Environment Operating Temperature -20°C~+55°C
Safety & EMC Approval CE, ROHS
Input Voltage Range 220~240 VAC 50/60Hz
Switching capacity Max.400W(Control gear) Max.800W(Incandescent lamp)
Sensor Parameters Detection Area 10%/50%/75%/100%
Daylight Sensor 2Lux/10Lux/50Lux/Disable
Hold time 5s/30s/1min/5min/10min/20min/30min
Mounting Height Max.4.5m(ceiling mounted)
Detection range Max.ø12m(ceiling mounted)
Others Installation Installed inside lamps
IP rating IP 20
Warranty 5 years
Life time 50000h
Packaging Requirement Bubble pack, paper flat, outer carton.


Wiring diagram

Mechanical structure(mm)

DIP Switch Setting

Detection coverage

Demo

Application
