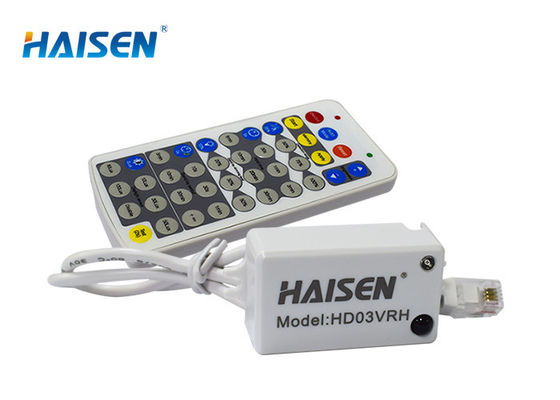

Dimming Function 5V PWM Dimmable Microwave Movement Sensor IP 20

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD03VRH
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 1000000pcs per month
Product Details
Mounting Height Max.15m/49.2ft Detection Range Max.14m/45.92ft
Output 5V PWM/5V TTL Stand-by Period 0s/10s/30s/1min/5min/10min/30min/+∞
Installation Installed Inside Lamps
High Light

dimmable occupancy sensor

,

dimmable pir sensor

Leave a Message
Product Description

Dimming Function 5V PWM Dimmable Microwave Movement Sensor IP 20





Features:

  • Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via remote control.
  • 5V PWM dimmable function.
  • Automatic switching based on motion and ambient light level.
  • 12VDC design.
  • Unique design ,suitable for 15m Mounting height application .





Description

Operating Frequency 5.8 GHz ±75 MHz
Output 5V PWM/5V TTL
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Operating temperature -20°C~+55°C
Approval CE, ROHS
Operating voltage 12 VDC
Operating current 30mA±5%
Mounting Height Max.15m/49.2ft
Detection range Max.14m/45.92ft
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
Detection angle 30°-150°
Detection Area 25%/50%/75%100%
Packaging Requirement Bubble pack, paper flat, outer carton.
Life time 50000h
Installation Installed inside lamps
Warranty 5 years
IP rating IP 20



Wiring Diagram

Size

Detection coverage

Demo

Application
