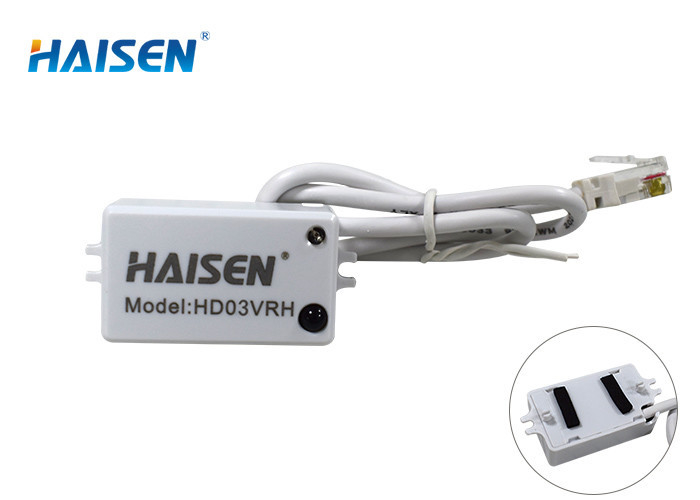

High Frequency 5.8GHz Dimmable Sensor Compact Design 12VDC 5 Warranty

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD03VRH
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 1000000pcs per month
Product Details
Mounting Height 12 VDC Stand-by Power <0.5W
Warranty 5 Years Control Remote Control
Function PWM Dimmable Function Life Time 50000h
High Light

lighting control switch motion sensor

,

dimmable pir sensor

Leave a Message
Product Description

High Frequency 5.8GHz Dimmable Sensor Compact Design 12VDC 5 Warranty





Features:

  • Long life span 50,000h, 5 years guaranty.
  • 12DC input design, With DC operation voltage from LED driver, no need extra power from line. Work with 1-10v dimmable led driver for 2-step dimming function. Particularly suitable for price sensitive luminaries.
  • Remote control and 5V PWM dimmable function.
  • Automatic switching based on motion and ambient light level.



Description

Operating voltage 12 VDC
Operating current 30mA±5%
Mounting Height Max.15m/49.2ft
Detection range Max.14m/45.92ft
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
Detection angle 30°-150°
Detection Area 25%/50%/75%100%
Operating Frequency 5.8 GHz ±75 MHz
Output 5V PWM/5V TTL
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Operating temperature -20°C~+55°C
Approval CE, ROHS
Life time 50000h
Warranty 5 years
IP rating IP 20
Installation Installed inside lamps
Packaging Requirement Bubble pack, paper flat, outer carton.



Wiring Diagram

Size

Detection coverage

Demo

Application
