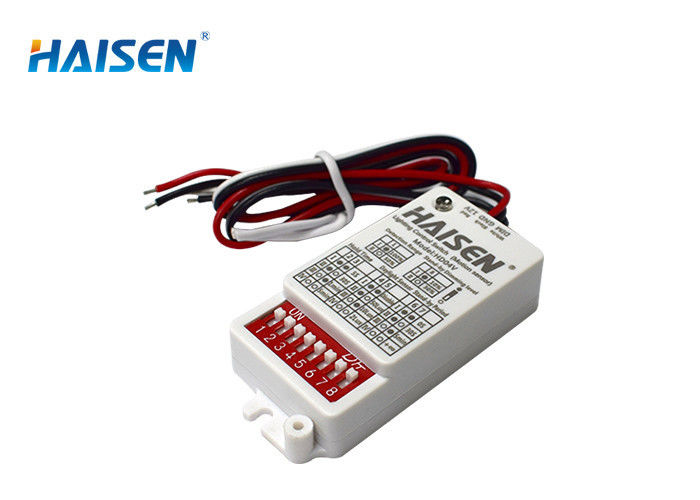

Compact Design DIP Switch Setting Control 12V DC Microwave Motion Sensor
| Place of Origin | China |
|---|---|
| Brand Name | HIASEN |
| Certification | CE RoHS |
| Model Number | HD04V |
| Minimum Order Quantity | 100pcs |
| Price | Negotiable |
| Packaging Details | Bubble pack, paper flat, outer carton |
| Delivery Time | 1-3 days for sample order, 1-2 weeks for bulk order |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100000pcs per month |
Product Details
| Product Name | Microwave Motion Sensor | Operating Voltage | 10-15VDC |
|---|---|---|---|
| Output | 0-10V | Mounting Height | Max.6m/19.68ft |
| Detection Range | Max.14m/45.92ft | IP Rating | IP 20 |
| High Light | lighting control switch motion sensor,dimmable pir sensor |
||
Product Description
Compact Design DIP Switch Setting Control 12V DC Microwave Motion Sensor
Features:
- 0-10V dimming function.
- 12DC input design, With DC operation voltage from LED driver, no need extra power from line. Work with 1-10v dimmable led driver for 2-step dimming function. Particularly suitable for price sensitive luminaries.
- Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via DIP switches.
Specification
| Mounting Height | Max.6m/19.68ft |
| Detection range | Max.14m/45.92ft |
| Hold time | 5s/30s/1min/5min |
| Daylight threshold | 2Lux/10Lux/50Lux/Disable |
| Detection Area | 50%/100% |
| Stand-by period | 0s/10s/5min/+∞ |
| Stand-by dimming level | 10%/30% |
| Operating Frequency | 5.8 GHz ±75 MHz |
| Output | 0-10V |
| Stand-by power | <0.5W |
| Detection angle | 30°-150° |
| Operating temperature | -25°C~+60°C |
| Approval | CE, ROHS |
| Operating voltage | 10-15VDC |
| Operating current | 25mA±5% |
| Microwave power | <0.3mW |
| Life time | 50000h |
| Warranty | 5 years |
| IP rating | IP 20 |
| Installation | Installed inside lamps |
| Packaging Requirement | Bubble pack, paper flat, outer carton. |
Wiring diagarm
Size
Detection coverage
DIP switch
Demo
Application
