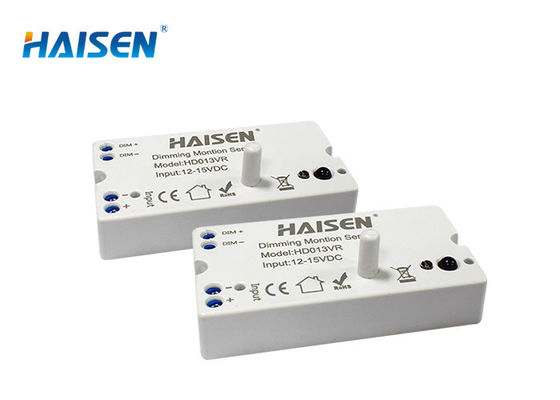

Remote Control Microwave Movement Sensor Rod Antenna Motion Sensor

Place of Origin China
Brand Name HIASEN
Certification CE RoHS
Model Number HD013VR
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Product Name Microwave Motion Sensor Function PWM 0-10V Dimming Function
Operating Voltage 10-15VDC Approval CE RoHS
Operating Current ≥30mA IP Rating IP 20
High Light

lighting control switch motion sensor

,

dimmable pir sensor

Leave a Message
Product Description

Remote Control Microwave Movement Sensor Rod Antenna Motion Sensor


Features

  • Rod antenna makes reliable detecting, avoid false trigger when sensor built-in backside of metal LED plate.
  • 12DC input design, With DC operation voltage from LED driver, no need extra power from line. Work with 1-10v dimmable led driver for 2-step dimming function. Particularly suitable for price sensitive luminaries.
  • PWM and 0-10V dimming function.
  • Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via remote control.



Specifciation

Wireless ParametersOperating Frequency5.8GHz±75MHz
OutputPWM/0-10V
InputOperating voltage10-15VDC
Operating current≥30mA
Sensor ParametersStand-by period0S/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level10%/20%/30%/50%
Hold time5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
Detection angle30°-150°
Detection Area25%/50%/75%/100%
Mounting HeightMax.2.5-4m/8.2-13.12ft
Detection range(Radius) 2-4m/6.56-13.12ft
Operating temperature-25°C~+60°C
Safety & EMCApprovalCE, ROHS
OthersPackaging RequirementBubble pack, paper flat, outer carton.
Life time50000h
InstallationInstalled inside lamps
Warranty5 years
IP ratingIP 20


Wiring diagarm

Size

Detection coverage

Demo

Application
