White Color Dimmable Motion Sensor IP20 Rating TUV RED Certificated

Place of Origin China
Brand Name HAISEN
Certification TUV/RED/CE/RoHS
Model Number HD01V
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Microwave Frequency 5.8GHz ± 75MHz Appearance Design Planar Antenna Design
Mounting Height Max.6m/19.68ft Detection Range Max.ø14m/45.92ft
Apperance Color White Operating Voltage 220-240VAC 50/60Hz
Lifetime 50000 Hours IP Rating IP 20
Certificate TUV/RED/CE/RoHS
High Light

14m Dimmable Motion Sensor

,

45.92ft Dimmable Motion Sensor

,

14m Long Range Motion Sensor

Leave a Message
Product Description

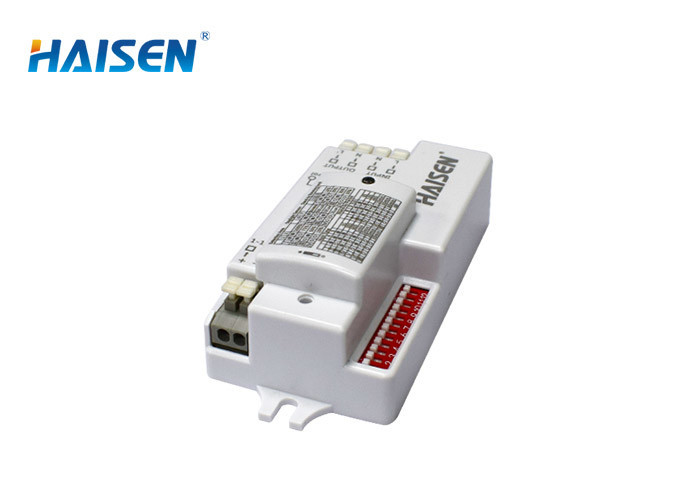

White Color Dimmable Motion Sensor IP20 Rating TUV RED Certificated



Dimming microwave sensor with 220-240V operating voltage to keep the brightness of 10% or 20% even no movement detected-HD01V



Features:

  • Dimming sensor with operating voltage of 220-240V.
  • With 12 DIP switch keys to offer more options of Hold time, stand-by period, stand-by dimming level.
  • Could keep the light on with a lower brightness like 10%,20% and the like when no movement detect to meet the special requirements in some special occasions.
  • Automatically turn on the light to be 100% brightness when detect the movement with an insufficient daylight.
  • 6 pole pluggable clamp terminal (L,N,N,L’, 1-10V+,1-10V-) for 0.75-1.5mm² cable.
  • It’s flexible to control the detection range With four options(10%,50%,75%,100%) which make it very widely used in the parking lot to lower the sensitivity of light to avoid false trigger.
  • IP20 and 5 years of warranty.
  • Certificate of TUV/RED/CE/RoHs.

Specifications:

Input Operating Voltage 220-240VAC 50/60Hz
Stand-by Power ≤1W
Output Switching Capacity Max.400W(Controlgear)Max.800W(Incandescent lamp)

Sensor

Parameters

Hold Time 5s/90s/5min/15min
Detection area 10% / 50% / 75% / 100%
Daylight Threshold 2Lux/10Lux/50Lux/Disable
Mounting Height Max.6m(ceiling mounted); Max.3m(wall mounted)
Detection Range Max.14m(ceiling mounted); Max.10m(wall mounted)

Wireless

Parameters

Frequency 5.8 GHz ±75 MHz
Switch Control 0N/0FF

Operating

Environment

Temperature -20℃~+55℃
Detection Angle 30°-150°
Certificate Certificate TUV/RED/CE
Others Wiring Method 6-pole terminal (Input L/N. Output N/L’/V+/V-)
IP Rating IP20 (Built-in)
Installation Size 103*45*31mm
Packaging Bubble bag +Outer Carton(K=A)
Life 50000h




    ON/OFF            Daylight sensor        Detection area           Hold time          Warranty 5 years

Dimensions:

Small design & basic Micorwave Motion Sensor for easily installation and widely using in the smart lighting control industry.





Wiring Diagram:

6 pole pluggable clamp terminal (L,N,N,L’, 1-10V+,1-10V-) to make it happen to be easily connected with the power supply and LED Driver.

With the terminal of V+/V- to be able to provide 1-10V dimming signal to LED Driver to control the brightness of LED light finally.



Detection coverage:



Max. detection range will be 14m for ceiling mounted; Max. Detection range will be 10m for wall mounted.



Dip switching settings:



Detection area        Hold-time        Daylight threshold   Stand-by period         Stand-by dimming level



In this area,          The period of    Definition of the        the period of light        The

movement will     light keeping    ambient brightness;    keeping low output      definition of

be detected        100% brightness  only when the           before it's completely    low output

and able to          after moving      ambient brightness    switched off.when it's   in the

trigger the           objects levea     is lower than the        preset as"∞",the light    stand-by period.

sensor. 100%       the detection     preset specific           always keep at low

detection area      area.                 lux amount,the          output if no movement

is also known                               sensor will work;        in the detection area

as the strong                                when it's preset          and doesn't turn OFF.

sensitivity.                                   as"disable",the

                                                    sensor works

                                                    everytime it

                                                    detects motion

                                                    regardless the

                                                ambient brightness.

Detection Area (Sensitivity)

  1 2
ON ON 100%
ON - 75%
- ON 50%
- - 10%

Hold Time

  3 4 5
ON ON ON 5S
- ON ON 30S
ON ON - 1min
- - OM 5min
V - ON - 10min
VI ON - - 20min
VII - - - 30min



Daylight Threshold



  6 7
ON ON Disable*
ON - 50Lux
III - ON 10Lux
- - 2Lux

*Disable means the daylight sensor does not work.

The sensor will turn on light once motion is detected regardless of ambient light level.

Stand-by Period



  8 9 10
ON ON ON 0S
- ON ON 10S
ON ON - 1min
- - OM 10min
V - ON - 30min
VI ON - - 60min
VII - - -



Stand-by dimming level



  1 2
ON ON 100%
ON - 75%
- ON 50%
- - 10%
