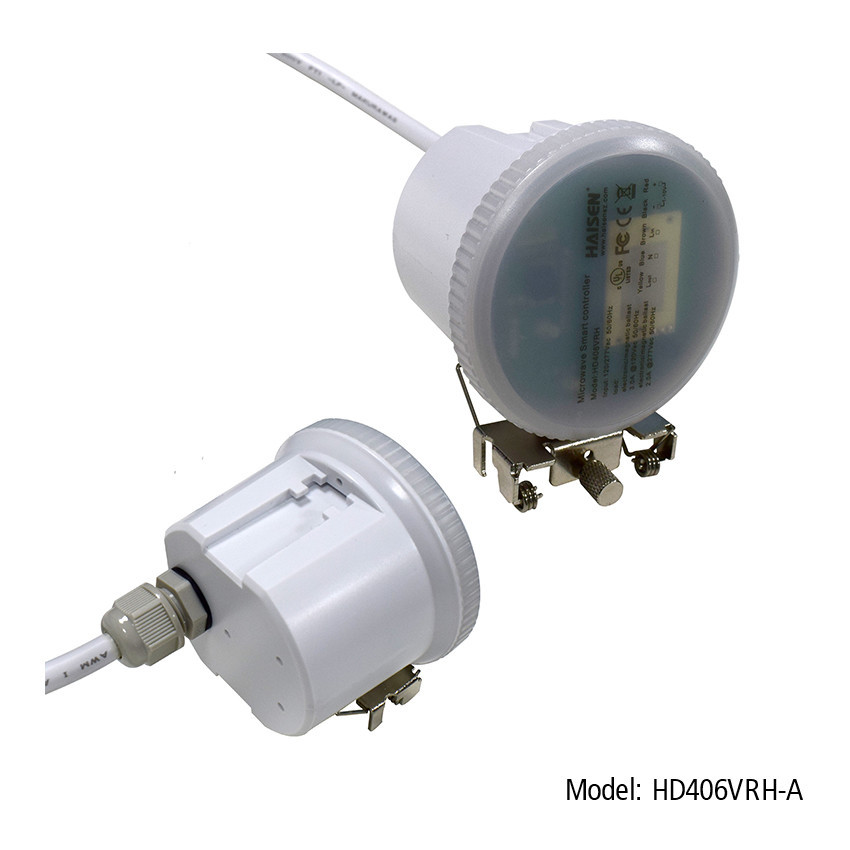

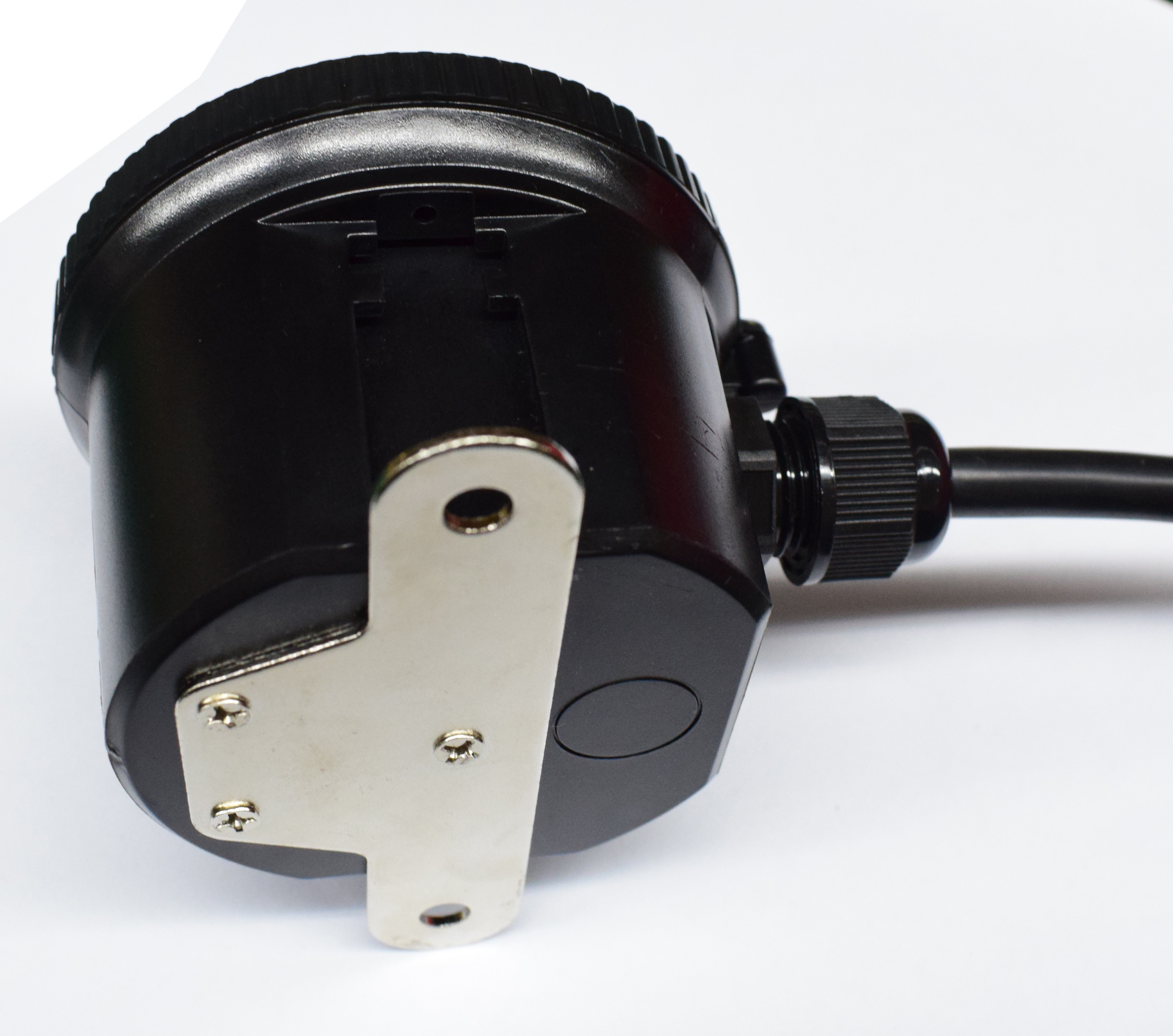

Indoor Light Microwave Dimmable Motion Sensor LED Linear Highbay For Surface Mounting

Place of Origin China
Brand Name HAISEN
Certification UL FCC TUV SAA CE RED RoHS
Model Number HD406VRH
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details the small white box,paper flat,outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Input Voltage 120~240VAC 50/60Hz OR 120-277VAC 50/60Hz Certificate UL FCC TUV SAA CE RED RoHS
Function ON/OFF Function ,1-10v Dimming And Remote Control Warranty 5 Years
Color White And Black(version B Only Black) Operating Temperature -35°C~+55°C
Mounting Height Max.15m/49.2ft IP Rating IP20
High Light

dimmable occupancy sensor

,

dimmable pir sensor

Leave a Message

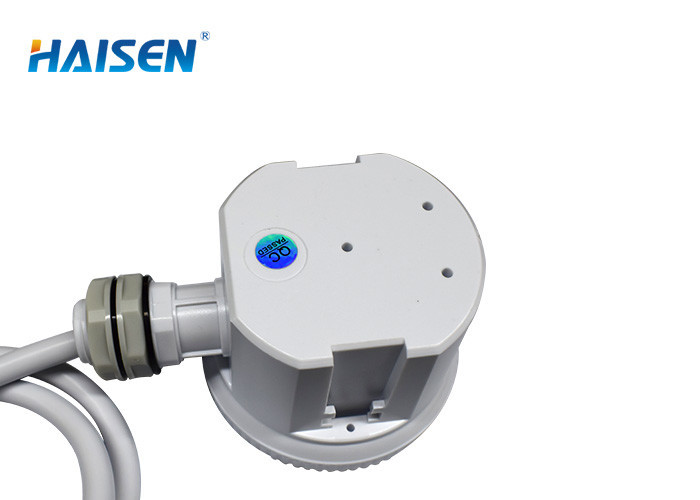

Product Description

Dimming Function Indoor Light Microwave Motion Sensor LED Linear Highbay



Features:

1. 5.8GHz microwave motion sensor with dimming function.

2. Supporting different installation and applications,for surface mounting,traditional LED high bay with aluminium reflector,UFO highbay or linear/triproof highbay light.

3. Max installation height is 15m/49.2ft.

4. All parameters can be setting by remote control.

5. Sensitive and reliable..

6. IP 20 with 5 years warranty.

7.1-10v dimming

Product Description:



Operating voltage EU version:120-240VAC,50Hz/60Hz                                      American veision:120-277VAC,50Hz/60Hz
Switching capacity EU version:Incandescent: Max, 800W(120-220Vac); Max, 1000W(220-240Vac)
Controlgear: Max,400W(120-220Vac);Max,800W(220-240Vac)
American version:Max,3.0A@120Vac,50/60Hz;Max,2.0A@277Vac,50/60Hz
Stand-by power 1w
Control method on/off /1-10v dimming/ remote control(HD02R,HD03R,HD05R)
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection area 50%/100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Control line EU version:Brown L,Blue N,Yellow L',Black 1-10v-,Red1-10v+ American version:Black L,White N,Red L',Gray 1-10v-,Purple 1-10v+
Mounting height Max.15m ( 49.21ft )
Deteation range MaxØ14m/45.93ft
Motion detection 0.5–1,5m/s
Packing method ①the small white box(110*100*105mm), ②paper flat, ③outer carton(465*300*465mm)with drying agent
Operating temperature EU version:–35–+55                                                                  Amercian version:–35℃–+60℃
IP rating IP 65
Warranty 5 years
Safty standard EN61347-1 EN61347-2-13 EN60598-1




  ON/OFF Control            Detection Area        Daylight Threshold         Remote Control



    Warranty 5 years               Hold Time             8-15m Highbay        Stand-by Period     Stand-by Dimming Level

Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 8-15m.

Mechanical structure

With remote control to set all parameters



Wiring diagram

Dimensions (mm)




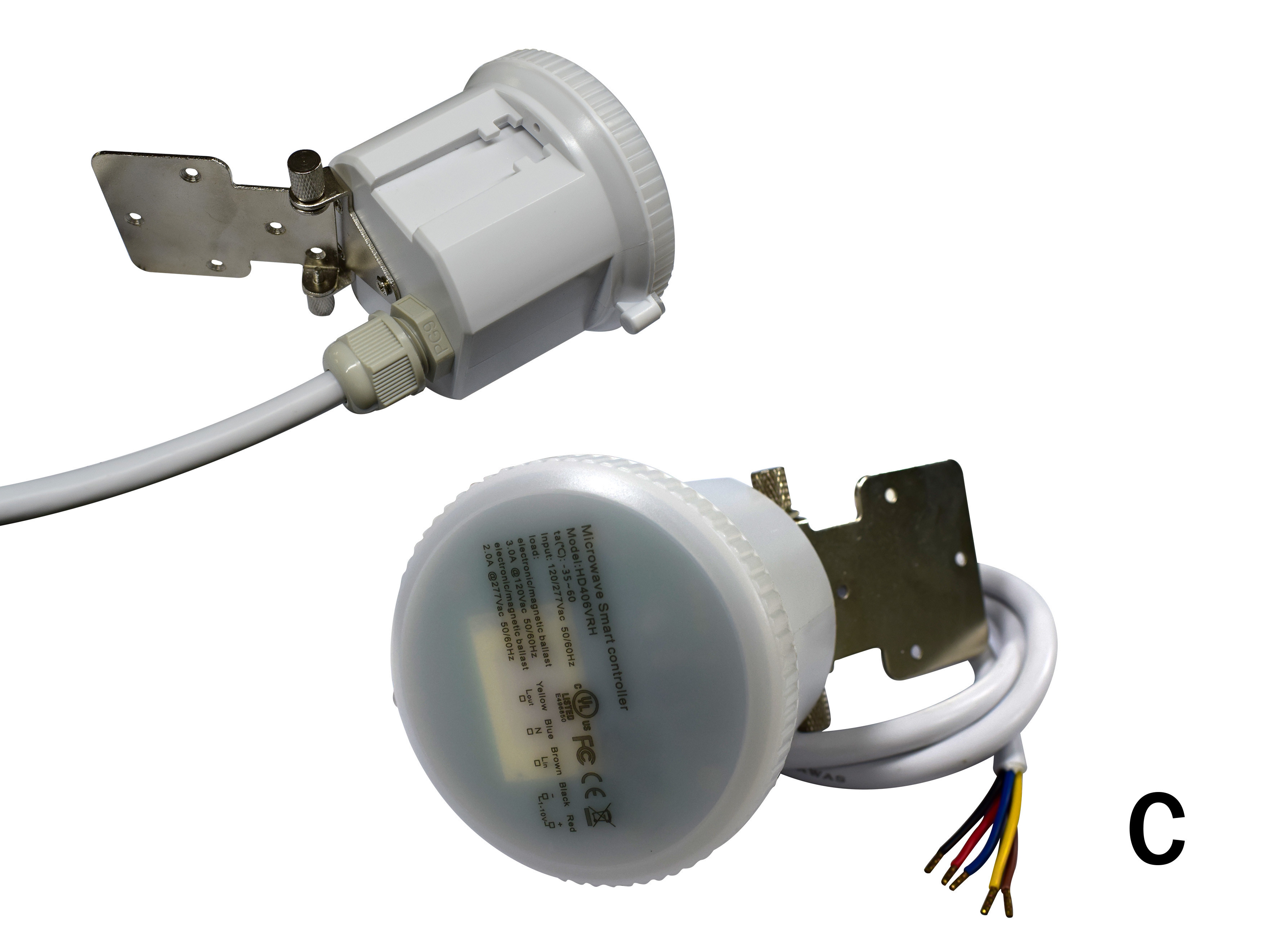

Installation Method:

 Application Demo

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.

With sufficient daylight,                 With insufficient daylight,             After the last detection and
even when motion detected,          when motion detected, light ON.   the present hold time
light remains OFF.                                                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.

When motion is detected,              After people leave the detection    After the last detection and
the sensor will switch on the         area, light remains 100%                the present hold time
light to 100% brighteness.             brightness within hold time.          elapsed, light OFF.





Application:

User Notes:

1.Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.

Memory & Apply Mode

1. Press "ON/OFF button" to turn on the light or off.

2. To reset the parameters, Please follow the steps as below:

Step 1 - Press ON, to turn on the light if it was off at the start.

Step 2 - Press "Start" to the well-setting sensor.

Step 3 - Press the button of Detection range, Hold time, Stand-by dimming level,

Stand-by period and Daylight threshold one after the other in sequence (Press "+/-" to

set parameters).

Step 5 – Press “Memory” to memorize the settings.

Note: The interval of each parameter setting shall be controlled within 30s.

Isolated Setting Mode

1. Press "ON/OFF button" to turn on the light or off. Press "Scene", the remote will

activate settings that were saved last or remain at the factory default settings.

2. To reset the parameters, Please follow the steps as below:

Step 1 - Press ON, to turn on the light if it was off at the start.

Step 2- Press any button of "Scene", Test" and "Apply" to begin the sensor detection

mode.

Step 3 - Press the button of Detection range, Hold time, Stand-by dimming level,

Stand-by period and Daylight threshold one after the other in sequence.

3. To programme other lights in the array that have similar sensors to the same

programme.

Step 1 - Press "ON" to the second sensor

Step 2 - Press "Apply"

Notes:

1. Settings will be saved automatically and remain until you press reset again.

2. Light will flicker when setting each parameter.

3. The icon will flash when setting the corresponding parameter.
