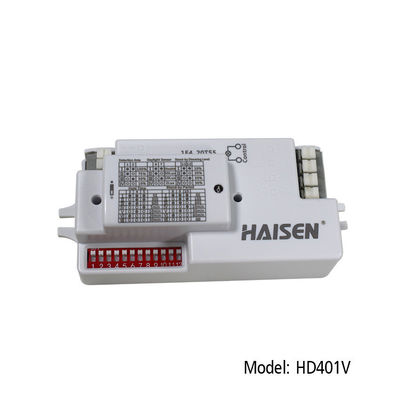

UL FCC 1V 10V Dimmable Motion Sensor Planner Antenna DIP Switch

Place of Origin China
Brand Name HAISEN
Certification UL FCC RoHS
Model Number HD401V
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details bubble pack, paper flat, drying agent,outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Input Voltage 120-277VAC 50Hz/60Hz Stand-by Power Less Than Or Equal To 1w
Size 103*45*31mm Warranty 5 Years
Operating Temperature -20°C~+55°C Color White Appearance
Mounting Height Max.2.5-6m/8.2-19.68ft IP Rating IP20
High Light

10V Dimmable Motion Sensor

,

FCC Dimmable Motion Sensor

,

10V Lighting Occupancy Sensor

Leave a Message
Product Description

UL FCC 1V 10V Dimmable Motion Sensor Planner Antenna DIP Switch



UL FCC Dimmable Motion Sensor Planner Antenna 12 DIP Switch White Appearance



Features:

1. 5.8GHz microwave motion sensor with dimmable function.

2. Suitable for ceiling lights or bulkhead.

3. Max installation height is 15m/49.2ft.

4. Can pull out and plug for easy installation

5. Sensitive and reliable.

6.1-10v dimming.

7. IP 20 with 5 years warranty.



Product Description:

Operating voltage 120-277VAC,50Hz/60Hz
Switching capacity

Max,3.0A@120Vac,50/60Hz;

Max,2.0A@277Vac,50/60Hz

Stand-by power ≤1w
Control method on/off /1-10v dimming
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection area 10%/50%/75%/100%
Hold time 5s/30s/1min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by period 0s/10s/1min/10min/30min/1H/∞
Stand-by dimming level 10%/20%/30%/50%
Interfaces 6-pole pluggable clamp temminal(L,N,N,L',1-10V+,1-10V-)for 0.75-1.5mm² cable
Mounting height 2.5-6m /8.2-19.68ft
Deteation range Max.ø14m/45.93ft
Motion detection 0.5–1,5m/s
Packing method

①the bubble pack,

②paper flat,

③outer carton(400*300*236mm)with drying agent(120pcs/carton,8.8kg gross weight)

Detection angle 30°-150°
Operating temperature –20℃–+55℃
IP rating IP 20
Warranty 5 years



  ON/OFF Control            Detection Area        Daylight Threshold



    Warranty 5 years               Hold Time             Stand-by period       stand-by dimming level

Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-6m.



Mechanical structure

1-10v dimming

with two installation hole for easy connect the end user lamp

12 DIP switchs set parameters which you want



Wiring diagram



Dimensions (mm)



Settings:



Detection area:

In this area,movement will be detected and able to trigger the sensor,100% detection area is also known as the strong sensitivity.



Hold time:

The period of light keeping 100% brightness after moving object leave the detection area.



Daylight threshold:

Difinition of ambient brightness;only when the ambient brightness is lower than the preset spercific LUX amount,the sensor will work;when it's perset "Disable" the sensor works everytime it detects motion regardless ambient brightness.



Stand-by period:

The period of light keeping low output before it's completely switched off,when it's preset as"∞" the light always keep at low output if no movement in the detection area and doesn't turn off.



Stand-by dimming level:

The definition of the lower output in the stand-by period.

Installation Method:

 Application Demo

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.



With sufficient daylight,                 With insufficient daylight,             After the last detection and
even when motion detected,          when motion detected, light ON.   the present hold time
light remains OFF.                                                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.



When motion is detected,              After people leave the detection    After the last detection and
the sensor will switch on the         area, light remains 100%                the present hold time
light to 100% brighteness.             brightness within hold time.          elapsed, light OFF.

3. Function Demo - Dimmable control/Corridor function:



   With sufficient daylight,         With insufficient                    After last detection, the           After the stand-by
   even when motion                 daylight, when motion          light will be dimmed                period,light OFF.
   detected, light remains          detected,light ON.                down to the stand-by
   OFF.                                                                                   dimming level
                                                                                                                        (10%,20%,30% or 50%)
                                                                                                                       after holdtime.

Application:



User Notes:

1.Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.
