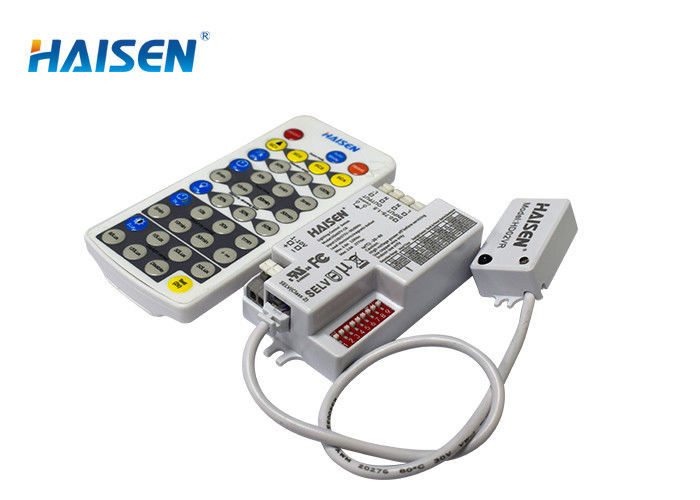

Dimmable Ceiling Mounted Motion Sensor 120VAC 277VAC Operating Voltage

Place of Origin China
Brand Name HAISEN
Certification UL FCC RoHS
Model Number HD407V-CR
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details bubble pack, paper flat, drying agent,outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Input Voltage 120-277VAC 50Hz/60Hz Color White Appearance With The Separation Of The Head
Switch Capacity Max.3.0A@120Vac;Max.2.0A@277Vac Warranty 5 Years
Mounting Height Max2.5-6m/8.2-19.68ft IP Rating IP20
Function 1-10v Dimming/ On/Off /remote Control Operating Temperature -30°C~+70°C
High Light

20VAC Ceiling Mounted Motion Sensor

,

277VAC Ceiling Mounted Motion Sensor

,

277VAC Indoor Motion Detector

Leave a Message
Product Description

Dimmable Ceiling Mounted Motion Sensor 120VAC 277VAC Operating Voltage



Detached Design 6M Ceiling Mounted 120-277VAC Operating Voltage Dimmable Senor



Features:

1. 5.8GHz microwave motion sensor with dimmable function.

2. Optional detection range,holdtime,daylight threshold,stand-by dimming level and stand-by period.

3. Smart detached design,the sensor can be small to fit into the LED PCB board.

4. Suitable for tri-proof and linear light.

5. Supports DIP switch programming and remote control.

6.Installation height accessiable 2.5-6m.

7. IP 20 with 5 years warranty.



Product Description:

Model number HD407V-CR
Operating voltage 120-277VAC,50Hz/60Hz
Switching capacity Max,3.0A@120Vac,50/60Hz; Max,2.0A@277Vac,50/60Hz
Stand-by power ≤1w
Control method on/off /1-10v dimming/remote control
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection area 50%/100%
Hold time 5s/30s/1min/10min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by period 0s/30s/20min/+∞
Stand-by dimming level 10%/20%/30%/50%
Interfaces 6-pole pluggable clamp temminal(L,N,N,L',1-10V+,1-10V-,)for 0.75-1.5mm² cable
Mounting height 2.5-6m /8.2-19.68ft
Deteation range Max.ø14m/45.93ft
Motion detection 0.5–1.5m/s
Packing method

①the bubble pack(The main engine and the separation header are packaged together)

②paper flat,

③outer carton(400*300*236mm)with drying agent

(75pcs/carton,gross weight 7.3kg)

Detection angle 30°-150°
Operating temperature –30℃–+70℃
IP rating IP 20
Warranty 5 years



  ON/OFF Control            Detection Area        Daylight Threshold          Remote Control



    Warranty 5 years               Hold Time             Stand-by period       stand-by dimming level

Detection Range

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-6m.



Mechanical structure

1-10v dimming

with two installation hole for easy connect the end user lamp

9 DIP switchs set parameters which you want



Settings:

By selecting the combination of the DIP switches,sensor will be precisely set for different applications.



Detection area:

In this area,movement will be detected and able to trigger the sensor,100% detection area is also known as the strong sensitivity.



Hold time:

The period of light keeping 100% brightness after moving object leave the detection area.



Daylight threshold:

Difinition of ambient brightness;only when the ambient brightness is lower than the preset spercific LUX amount,the sensor will work;when it's perset "Disable" the sensor works everytime it detects motion regardless ambient brightness.



Stand-by period:

The period of light keeping low output before it's completely switched off,when it's preset as"∞" the light always keep at low output if no movement in the detection area and doesn't turn off.



Stand-by dimming level:

The definition of the lower output in the stand-by period.



Remote control setting and DIP switch setting shift:

If the sensor was set by DIP switch at last time,all setting will be follow the DIP switch setting no matter any key was changed,for example:once user changed the detection range by change the switch1 and 2;all other settings(hold time;stand-by period;daylight sensor;stand-by dimming level will follow the DIP switch setting even user did not changed the others.

If user change any setting by remote control at the last time,the setting will be changed by the relevant button only,other settings will remain.for example:when user changed the hold time by press the  hold time buttons,the hold time will change only,other settings(detection range;stand-by period;daylight threshold;stand-by dimming level) will follow the previous setting.

Installation Method:

 Application Demo

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.



With sufficient daylight,                 With insufficient daylight,             After the last detection and
even when motion detected,          when motion detected, light ON.   the present hold time
light remains OFF.                                                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.



When motion is detected,              After people leave the detection    After the last detection and
the sensor will switch on the         area, light remains 100%                the present hold time
light to 100% brighteness.             brightness within hold time.          elapsed, light OFF.

3. Function Demo - Dimmable control/Corridor function:



   With sufficient daylight,         With insufficient                    After last detection, the           After the stand-by
   even when motion                 daylight, when motion          light will be dimmed                period,light OFF.
   detected, light remains          detected,light ON.                down to the stand-by
   OFF.                                                                                   dimming level
                                                                                                                        (10%,20%,30% or 50%)
                                                                                                                        after holdtime.



User Notes:

1.Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.
