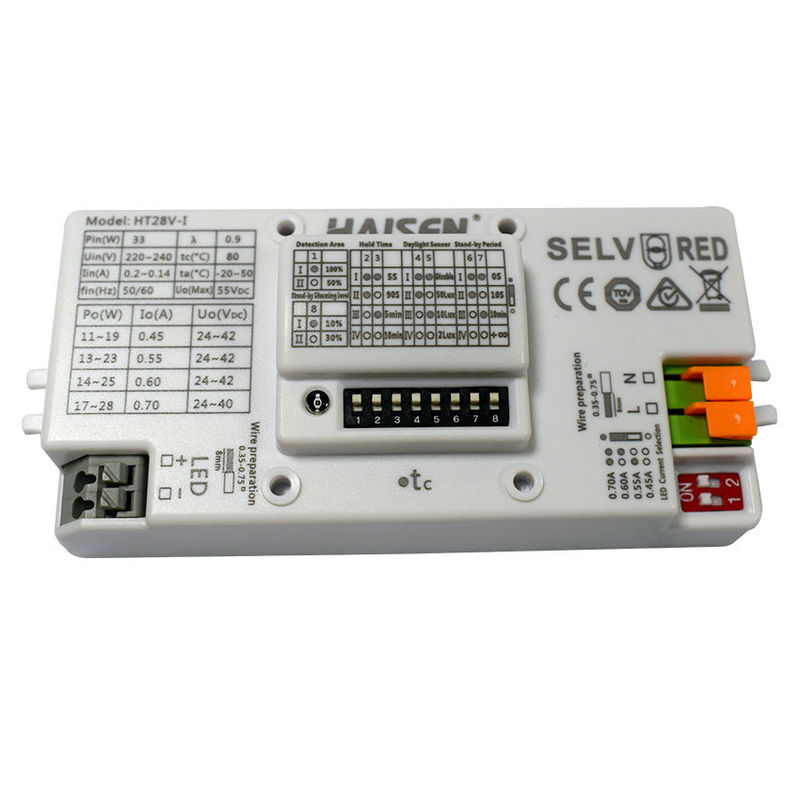

Microwave 28W Dimmable Motion Sensor Switch Planar Antenna Driver

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: RoHS CE TUV SAA RED
Model Number: HT28V-I
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 2-3 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs Per Month
Specifications Product Description Request A Quote
Specifications
Specifications
Input Votage: 220-240VAC 50/60Hz
Size: 114mm*47.2mm*29mm
Power Factor: Greater Tha 0.9
Efficiency: 85%(Max)
Output LED Current: 0.45A/0.55A/0.60A/0.70A
Detection Angle: 30°-150°
Output LED Power: 11-19W/13-23W/14-25W/17-28W
Product Name: 5.8G Microwave Motion Sensor
High Light:

28W Dimmable Motion Sensor Switch

,

60Hz Dimmable Motion Sensor Switch

,

28W Planar Antenna Motion Sensor

Product Description

Microwave 28W Dimmable Motion Sensor Switch Planar Antenna Driver

220-240VAC Planar Antenna 28W Driver Sensor 8 Dip Switch Dimmable Function



Features:

1. Power factor be equal or greater than 0.9.

2. Obtain EMC certification,and certificate number is EN55015.

3. Customers can be choose the corresponding current according to the actual situation.

4. Use quarantine protocal,safe and reliable.

5. Operating temperature would be –20℃–+50℃.

6. IP 20 and 3 years warranty.



Technical data:

Model number HT28V-I
Input voltage 220-240VAC,50Hz/60Hz
Input current 2.0-1.4A Max
Input power 33W Max
Output LED current 0.45A/0.55A/0.60A/0.70A
Output LED voltage

24-42V/24-42V/24-42V/24-40V

Output LED power

11-19W/13-23W/14-25W/17-28W

Stand-by power ≤0.5W(230VAC)
Empty load voltage ≤55V
Power factor ≥0.9
Efficiency 85%(Max.)
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection area 50%/100%
Hold time 5s/90s/5min/10min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by period 0s/10s/10min/+∞
Stand-by dimming level 10%/30%
Mounting height Max.6m (ceiling mounted)
Deteation range Max.ø14m (ceiling mounted)
Motion detection 0.5–1.5m/s
Packing method

①the bubble pack,

②paper flat,

③outer carton(400*300*236mm)with drying agent(95pcs/carton,gross weight 9.68kg)

Detection angle 30°-150°
Operating temperature –20℃–+50℃ Tc:80℃
Abnormal protection SCP:Auto recovery,OVP,OCP,OTP
EMC standard EN55015
Safety standard EN61347-1 EN61347-2-13 EN60598-1
IP rating IP 20
Warranty 3 years





On/Off Control             Detection Area                 Hold Time             Daylight Sensor



Stand-by dimming            Stand-by                 Output Current

level                                  Period



Dtection Area:

The fixture indicates teh maximun distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-6M.



Mechanical structure:





Dimensions:







Wiring diagram:



Setting:

By dialing the code you can set the parameters you want to achieve the effect you want.



Detection area:      Hold time:           Daylight threshold:        Stand-by period:       Stand-by period:

In this area,         The period of            Definition of the            The period of             The definition

movement will     light keeping            ambient brightness;       light keeping              of low output

be detected         100% brightness        only when the                low output                 in the stand-by

and able to          after moving             ambient brightness        before it's                   period.

trigger the           objects leave            is lower than the             completely

sensor.100%        the detection            preset specific                switched off,

detection area      area.                        lux amount,the               when it's preset

is also known                                      sensor will be work;        as"∞",the light

as the strong                                       when it'spreset as           always keep at

sensitivity.                                         "disable",the sensor           low output if

                                                          will work everytime          no movement in

                                                          it detects motion              the detection

                                                          regardness the                 area and doesn't

                                                          ambient brightness.          turn off.



Installation Method:



The installation finished product drawing is shown:



Application:

1.Automatically ON/OFF function:

Light on when detect movement and off after people leave at night.Applications:Corridor,Staircase.The daylight threshold is set to"2Lux,10Lux,50Lux".



With sufficient daylight,even          With insufficient daylight,               After the last detection and the

when motion detected,light            when motion detected,                   present hold time elapsed,

remains OFF.                                 light ON.                                          light OFF.

2.No daylight function:

The daylight threshold is set to"Disable".Light on when detect movement,after people leave,light off after stand-by period,Applications:Dim places such as basement parking ,underpass.



When motion is detected,               After people leave the                   After the last detection and

the sensor will switch on the          detection area,light remains          the present hold time

light to 100% brightness.               100% brightness within                 elapsed,light OFF.

                                                      hold time.

3.Function demo-dimable control/corridor function



With sufficient daylight,even          With insufficient daylight,                After the last detection the light

when motion detected,light            when motion detected,                   will be dimmed down to the

remains OFF.                                  light ON.                                         stand-by dimming level

                                                                                                             (10% or 30%)after hold time



After the stand-by period,

light OFF.



User Notes:

1. Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.

5. Factory default setting:detection area 100%/hold time 5s/daylight threshold disable/satnd-by period 0s/stand-by dimming level 10%.
