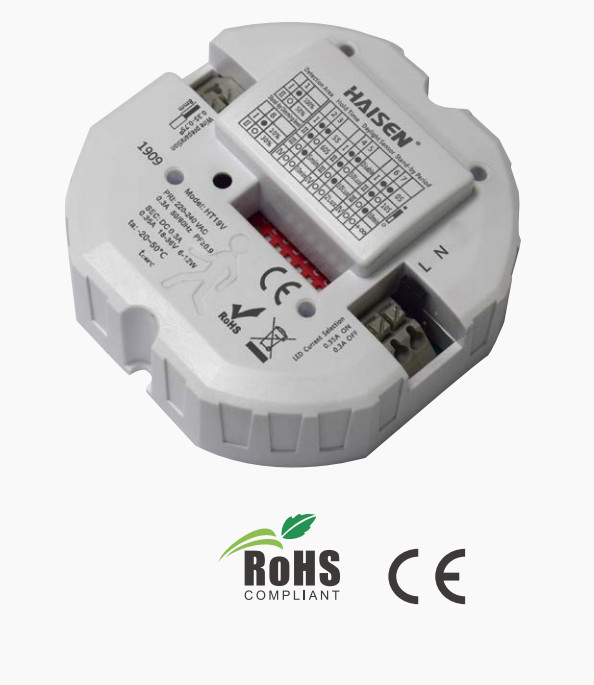

16W 0.08A Dimmable PIR Sensor Sensitive Motion Detector Sensor

Place of Origin China
Brand Name HAISEN
Certification RoHS CE
Model Number HT19V
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 2-3 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Input Current 0.08A Max Function Dusk/Dawn Sensor And Dimmable
Output LED Power 6-12W Certificate CE RoHS
Output LED Current 0.3A/0.35A±5% Efficiency Greater Than Or Equal To 78%
Microwave Power Less Than 0.3mW Warranty 3 Years
High Light

0.08A Dimmable PIR Sensor

,

16W 24V DC Motion Sensor

,

16W Motion Detector Sensor

Leave a Message
Product Description

16W 0.08A Dimmable PIR Sensor Sensitive Motion Detector Sensor



16W Input Power 30°-150° Detection Angel Efficiency Greater Than 78% Dusk Sensor



Features:

1. Constant current output.

2. On/off control by relay.

3. Tri-level control by 1-10V output.

4. Suitable for ceiling lights and Bulkhead.

5. Sensitive and reliable

6. IP 20 and 3 years warranty.



Technical data:

Model number HT19V
Input voltage 220-240VAC,50Hz/60Hz
Input current 0.08A Max
Input power 16W
Output LED current

0.3A/0.35A±5%

Output LED voltage

24V-52V DC

Output LED power

18-36W

Stand-by power

<0.5W(230VAC)

Empty load voltage ≤63V
Power factor ≥0.9
Efficiency

≥81% (Max.)

Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection area 50%/100%
Hold time 5s/60s/5min/10min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by period 0s/10s/10min/+∞
Stand-by dimming level 10%/30%
Mounting height
Max.6m (ceiling mounted)
Deteation range
Max.ø14m (ceiling mounted)
Motion detection 0.5–1.5m/s
Packing method

①the bubble pack,

②paper flat,

③outer carton(400*300*236mm)with drying agent(The sensor 100pcs/carton,gross weight 7.34kg)

Detection angle 30°-150°
Operating temperature

Ta: -20°C~55°C Tc: 80°C

Abnormal protection SCP:Auto recovery,OVP,OCP,OTP
EMC standard EN55015
Safety standard EN61347-1 EN61347-2-13 EN60598-1
IP rating IP 20
Warranty 3 years

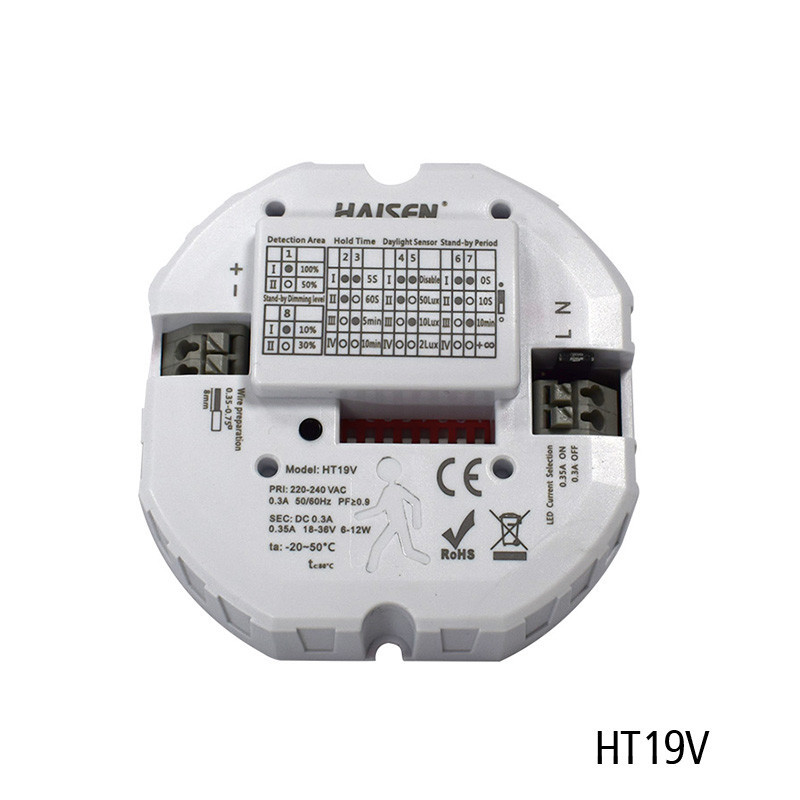

On/Off Control             Detection Area                 Hold Time             Daylight Sensor



Stand-by dimming            Stand-by                 Output Current

level                                  Period



Dtection Area:

The fixture indicates teh maximun distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-6M.





Output current setting:

Set the current to be 350mA by plugging black cap on 1 and 2 PIN,and 300mA by plugging on 2 and 3 PIN.



Setting:



1: Detection area:

In this area, movement will be detected and able to trigger the sensor. 100% detection area is also known as the strong sensitvity.

2-3: Hold time:

The period of light keeping 100% brightness after moving objects leave the detection area.

4-5: Daylight threshold:

Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable", the sensor works everytime it detects motion regardless the ambient brightness.

6-7: Stand-by period:

The period of light keeping low output before it's completely switched off. When it's preset as"∞“, the light always keep at low output if no movement in the detection area and doesn't turn off.

8: Stand-by period:

The definition of low output in the standby period.

Daylight periority:

Dusk/Dawn sensor:

Our special active photocell technology can tell the difference between natural light and LED light, to

ensure the light will be off when needed.



With Daylight priority function, HT30V is able to differentiate artificial light brightness from

natural light after installed inside the fixture, and automatically turn off light when ambient
brightness exceeds preset lux level.

Precondition of Daylight priority:
1. Standby period is +∞;
2. Standby dimming level is on 10% or 30%;
3. Daylight threshold is on 2Lux, 10Lux or 50Lux.

Lux on/off:



Light automatically              With insufficient               Lights dims to standby         Light off when

on when ambient                ambient brightness            level if no motion                ambient lux level is

brightness is lower             light dims to 100%              detected after                      higher than preset

than preset lux level.          when motion                       holdtime.                             Lux mount.

                                          detected.

Application:

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night.Applications:Corridor,Staircase.The daylight threshold is set to"2Lux,10Lux,50Lux".



With sufficient daylight,even          With insufficient daylight,               After the last detection and the

when motion detected,light            when motion detected,                   present hold time elapsed,

remains OFF.                                 light ON.                                          light OFF.

2. No daylight function:

The daylight threshold is set to"Disable".Light on when detect movement,after people leave,light off after stand-by period,Applications:Dim places such as basement parking ,underpass.



When motion is detected,               After people leave the                   After the last detection and

the sensor will switch on the          detection area,light remains          the present hold time

light to 100% brightness.               100% brightness within                 elapsed,light OFF.

                                                      hold time.

3. Function demo-dimable control/corridor function



With sufficient daylight,even          With insufficient daylight,                After the last detection the light

when motion detected,light            when motion detected,                   will be dimmed down to the

remains OFF.                                  light ON.                                         stand-by dimming level

                                                                                                             (10% or 30%)after hold time



After the stand-by period,

light OFF.



User Notes:

1. Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.

5. Factory default setting:detection area 100%/hold time 5s/daylight threshold disable/satnd-by period 0s/stand-by dimming level 10%.
