Planar Antenna 19W Dimmable Motion Sensor Flicker Free Dask Sensor

Place of Origin China
Brand Name HAISEN
Certification RoHS CE
Model Number HT19V-I
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 2-3 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Control Mode ON/OFF / 1-10V Current Block Options 0.40A/0.35A/0.25A/0.20A
Installation Mode Build-in Installation Stand-by Dimming Level 10%/30%
Mounting Height 2.5-6 Ceiling Mounted Detection Area 50%/100%
Method Of Setting Up Dial Code To Set Parameters Radiant Power Less Than 1mW
High Light

19W Dimmable Motion Sensor

,

0.35A Dimmable Motion Sensor

,

0.35A Microwave Motion Sensor

Leave a Message
Product Description

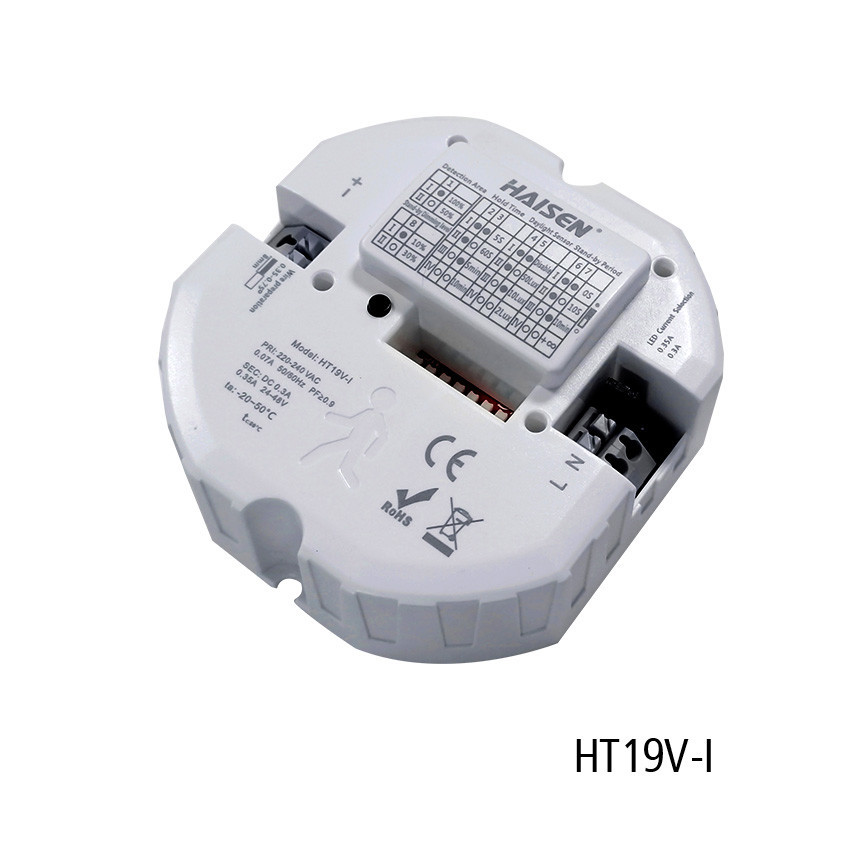

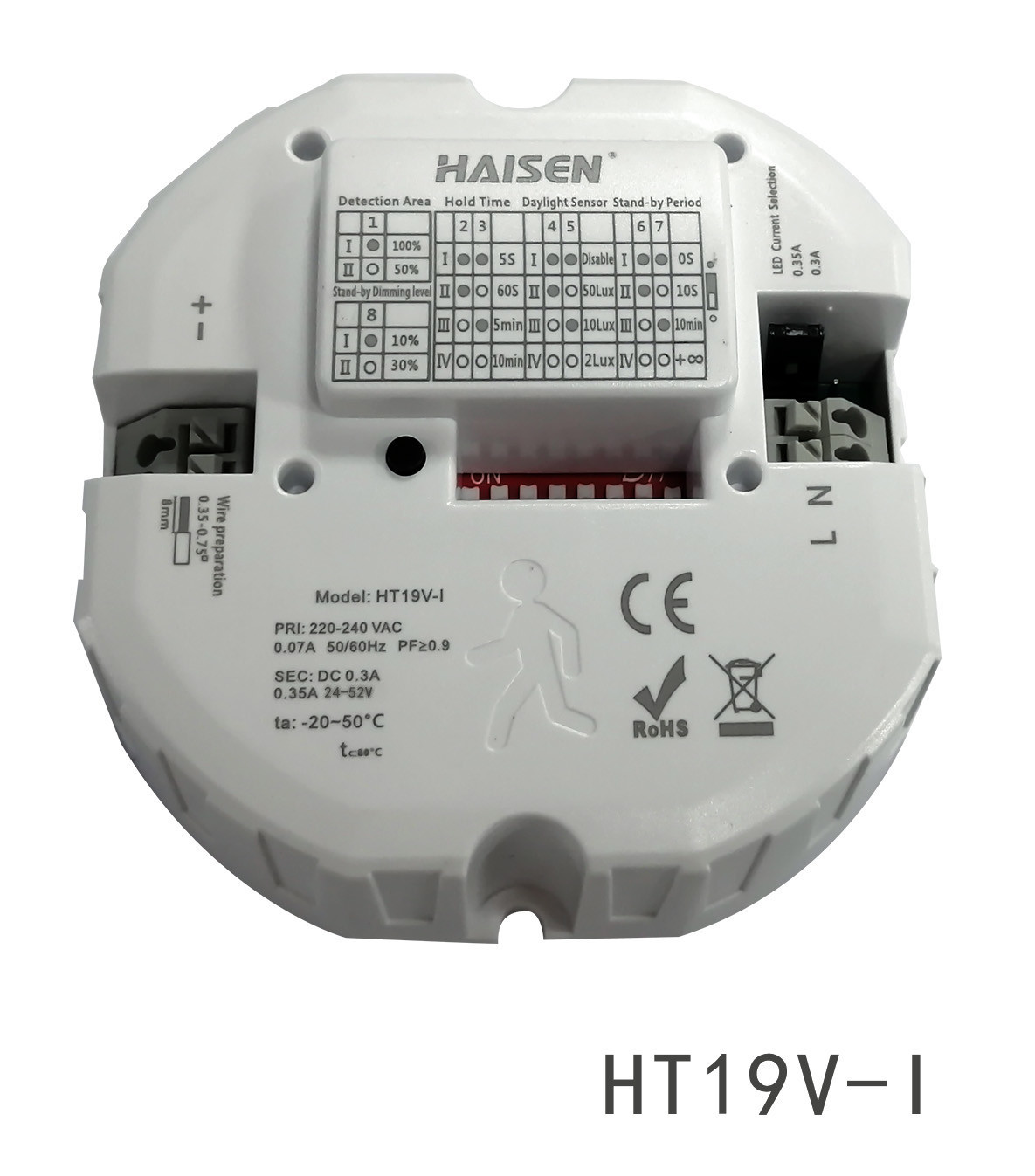

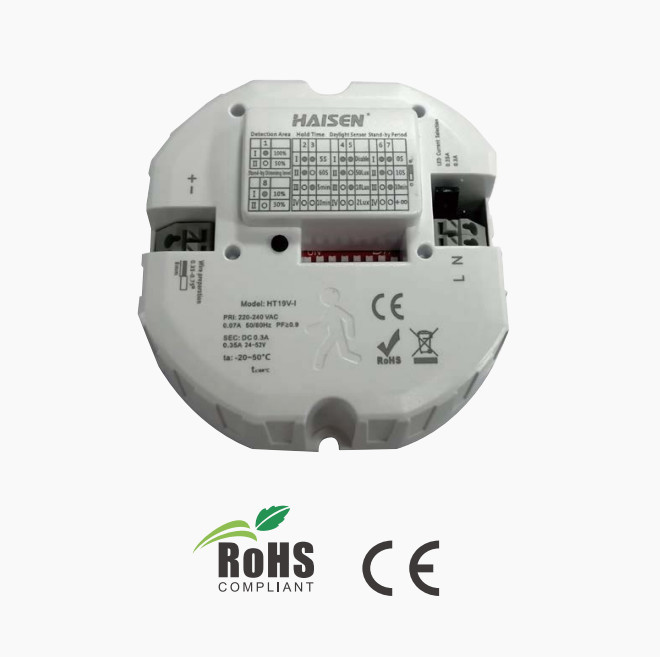

Planar Antenna 19W Dimmable Motion Sensor Flicker Free Dask Sensor



19W Dimmable Motion Sensor 0.3A 0.35A Antenna Dusk Dawn Driver



Dask Sensor Flicker Free Four current switches Planar Antenna

HT19V-I .pdf

Features of Dimmable Motion Sensor:

1.The input voltage is 220-240VAC.

2.The protection class is IP 20 in the case of bulid-in installation.

3.The maximum input current is 0.1A and the maxmium power is 22W.

4.The power factor at rated output is greater than or equal to 80%

5.The total harmonic distortion less than 20%

6.Output control mode is off and dimming(no stroboscopic less than 5%)



Technical data of Dimmable Motion Sensor:

Model number HT19V-I
Input voltage 220-240VAC,50Hz/60Hz
Input current 0.1A Max
Input power 22w(Max)
Flicker free <5%
Output LED current 0.3A/0.35A
Output LED voltage 24V-48V
Output LED power 18W
Stand-by power ≤0.5W(230VAC)
Empty load voltage ≤63V
Power factor ≥0.9
Efficiency 80%(Max.)
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection area 50%/100%
Hold time 5s/60s/5min/10min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by period 0s/10s/10min/+∞
Stand-by dimming level 10%/30%
Mounting height Max.6m (ceiling mounted)
Deteation range Max.ø14m (ceiling mounted)
Motion detection 0.5–1.5m/s
Packing method ①the bubble pack, ②paper flat, ③outer carton(400*300*236mm)with drying agent(100pcs/carton,gross weight kg)
Detection angle 30°-150°
Operating temperature –20℃–+50℃ Tc:80℃
Abnormal protection SCP:Auto recovery,OVP,OCP,OTP
EMC standard EN55015
Safety standard EN61347-1 EN61347-2-13 EN60598-1
IP rating IP 20
Warranty 3 years




On/Off Control             Detection Area                 Hold Time             Daylight Sensor



Stand-by dimming            Stand-by                  Remote control

level                                  Period



Dtection Area of Dimmable Motion Sensor:

The fixture indicates teh maximun distance at the highest mounting height with 100% sensitivity.

Typical installation height 2.5-6M.



Detection area:

In this area, movement will be detected and able to trigger the sensor. 100% detection area is also known as the strong sensitvity.

Hold time:
The period of light keeping 100% brightness after moving objects leave the detection area.

Daylight threshold:
Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable", the sensor works everytime it detects motion regardless the ambient brightness.

Stand-by period:
The period of light keeping low output before it's completely switched off. When it's preset as"∞“, the light always keep at low output if no movement in the detection area and doesn't turn off.

Stand-by dimming level:
The definition of low output in the standby period.

Output Current Setting:

Set the current to be 350mA by plugging black cap on 1&2 PIN, and 300mA by plugging on 2&3 PIN.

Daylight Priority of Dimmable Motion Sensor:
Dusk/Dawn sensor:
Our special active photocell technology can tell the difference between natural light and LED light, to
ensure the light will be off when needed.



With Daylight priority function, HT19V-I is able to differentiate artificial light brightness from
natural light after installed inside the fixture, and automatically turn off light when ambient
brightness exceeds preset lux level.

Precondition of Daylight priority:
1. Standby period is +∞;
2. Standby dimming level is on 10% or 30%;
3. Daylight threshold is on 2Lux, 10Lux or 50Lux.
Application——Lux on/off:

 Light automatically on when            With insufficient ambient              Light dims to stand-by level
 ambient brightness is lower             brightness,light dims to               if no motion detected after
 than preset lux level.                       100%,when motion                        holdtime.
                                                        detected.


 Light off when ambient

 lux level is higher than

 preset lux amount.



Application of Dimmable Motion Sensor:

1. Automatically ON/OFF function:

Light on when detect movement and off after people leave at night.Applications:Corridor,Staircase.The daylight threshold is set to"2Lux,10Lux,50Lux".



With sufficient daylight,even          With insufficient daylight,               After the last detection and the

when motion detected,light            when motion detected,                   present hold time elapsed,

remains OFF.                                 light ON.                                          light OFF.

2. No daylight function:

The daylight threshold is set to"Disable".Light on when detect movement,after people leave,light off after stand-by period,Applications:Dim places such as basement parking ,underpass.



When motion is detected,               After people leave the                   After the last detection and

the sensor will switch on the          detection area,light remains          the present hold time

light to 100% brightness.               100% brightness within                 elapsed,light OFF.

                                                      hold time.

3. Function demo-dimable control/corridor function



With sufficient daylight,even          With insufficient daylight,                After the last detection the light

when motion detected,light            when motion detected,                   will be dimmed down to the

remains OFF.                                  light ON.                                         stand-by dimming level

                                                                                                             (10% or 30%)after hold time
