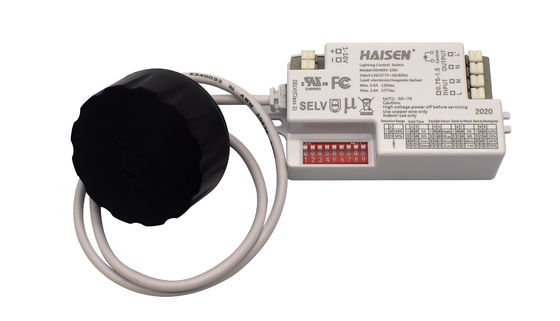

Detached Microwave High Bay Motion Sensor Remote Control Setting

Place of Origin China
Brand Name HAISEN
Certification RoHS UL FCC
Model Number HD405V-CRH
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 2-3 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Operating Voltage 120~277 VAC 50/60Hz Switching Capacity Max,3.0A@120Vac,50/60Hz; Max,2.0A@277Vac,50/60Hz
Mounting Height 8-15m /26.25-49.2ft Operating Temperature -30°C~+70°C
Microwave Power <0.3mW Motion Detection 0.5–1.5m/s
Control Method On/off / 1-10V Dimming;Dusk/Dawn Sensor;Remote Control Stand-by Power ≤1W
High Light

PIR High Bay Motion Sensor

,

0.3mW High Bay Motion Sensor

,

0.3mW High Bay Pir Sensor

Leave a Message
Product Description

Detached Microwave High Bay Motion Sensor Remote Control Setting



Dawn Sensor Remote Control Setting Detached Design Highbay Motion Sensor



HD405V-CRH 1 +HD02VRH-1.pdf

Features of Dimmable Motion Sensor:

1. Dual setting by DIP switch and remote control.
2. Supporting different installation and applications, for surface mounting, traditional LED highbay with aluminium reflector, UFO highbay or linear/triproof highbay.
3. Tri-level control by 1-10V output.
4. Dusk/Dawn Sensor.
5. Sensitive and reliable
6. 8-15m High altitude installation.
7. 5 year warranty.



Technical data of Dimmable Motion Sensor:

Model number HD405V-CRH
Operating voltage 120-277VAC,50Hz/60Hz
Switching capacity
Max,3.0A@120Vac,50/60Hz;
Max,2.0A@277Vac,50/60Hz
Stand-by power ≤1w
Control method
On/off / 1-10V Dimming
Dusk/Dawn Sensor
Remote Control
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection area 50%/100%
Hold time 5s/30s/1min/10min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by period 0s/30s/20min/+∞
Stand-by dimming level 10%/20%/30%/50%
Interfaces 6-pole pluggable clamp temminal(L,N,PUSH,DALI)for 0.75-1.5mm² cable
Mounting height
8-15m /26.25-49.2ft
Deteation range
Max.ø14m/45.93ft
Motion detection 0.5–1.5m/s
Packing method ①the bubble pack, ②paper flat, ③outer carton(400*300*236mm)with drying agent(70pcs/carton,gross weight 8.17kg)
Detection angle 30°-150°
Operating temperature
-30°C~+70°C
IP rating IP 20
Warranty 5 years





On/Off Control             Detection Area                 Hold Time             Daylight Sensor



Stand-by dimming            Stand-by                 Remote Control        5 Years Warranty

level                                  Period



10-15m Highbay



Dtection Area of Dimmable Motion Sensor:

The fixture indicates teh maximun distance at the highest mounting height with 100% sensitivity.

Typical installation height 8-15m.



Mechanical structure of Dimmable Motion Sensor:

Support remote control setting parameters.



Dimensions of Dimmable Motion Sensor:

Motion sensor setting and dimming setting please refer to remote control HD03R.
HD02VRH 1 Wire diameter 4mm,Standard Version Cable Length 485mm(can be
customized).





Wiring diagram of Dimmable Motion Sensor:



Setting of Dimmable Motion Sensor:

Can also set the parameters with the following nine-digit dialing code.



Detection area:



In this area,movement will be detected and able to trigger the sensor.100% detection area is also known as the strong sensitivity.



Hold time:



The period of light keeping 100% brightness after moving objects leave the detection area.



Daylight threshold:



Definition of the ambient brightness;only when the ambient brightness is lower than the preset specific lux amount,the sensor will be work;when it's preset as "disable",the sensor will work everytime it detects motion regardness the ambient brightness.



Stand-by period:



The period of light keeping low output before it's completely switched off,when it's preset as"∞",the light always keep at low output if no movement in the detection area and doesn't turn off.



Stand-by period:



The definition of low output in the stand-by period.



Daylight Priority of Dimmable Motion Sensor:

Dusk/Dawn sensor:
Dual-PD technology brings a fully automatic dusk/dawn sensor which can tell the difference between
natural light and LED light, to ensure the light will be off when needed.


With Daylight priority function, HD02VRH 1 is able to differentiate artificial light brightness
from natural light after installed inside the fixture, and automatically turn off light when
ambient brightness exceeds preset lux level.

Precondition of Daylight priority:
1. Standby period is +∞;
2. Standby dimming level is on 10%, 20% or 30%;
3. Daylight threshold is on 30Lux, 50Lux, 80Lux or 120Lux.
Application——Lux on/off:

 Light automatically on             With insufficient ambient            Light dims to
 when ambient                         brightness,light dims to             standby level if no
 brightness is lower                 100% when motion                     motion detected after
 than preset lux level.              detected.                                     holdtime.

Light off when ambient
lux level is higher than
preset lux amount.




Installation Method of Dimmable Motion Sensor:









Application of Dimmable Motion Sensor:

1.automatically ON/OFF function:

Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.



With sufficient daylight,even          With insufficient daylight,               After the last detection and the

when motion detected,light            when motion detected,                   present hold time elapsed,

remains OFF.                                 light ON.                                          light OFF.

2.No daylight function:

The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.



When motion is detected,               After people leave the                   After the last detection and

the sensor will switch on the          detection area,light remains          the present hold time

light to 100% brightness.               100% brightness within                 elapsed,light OFF.

                                                      hold time.

3.Function demo-dimable control/corridor function



With sufficient daylight,even          With insufficient daylight,                After the last detection the light

when motion detected,light            when motion detected,                   will be dimmed down to the

remains OFF.                                  light ON.                                         stand-by dimming level

                                                                                                             (10%,20%,30% or 50%)

                                                                                                              after hold time.



After the stand-by period,

light OFF.

Application of Dimmable Motion Sensor:



User Notes:

1. Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.
