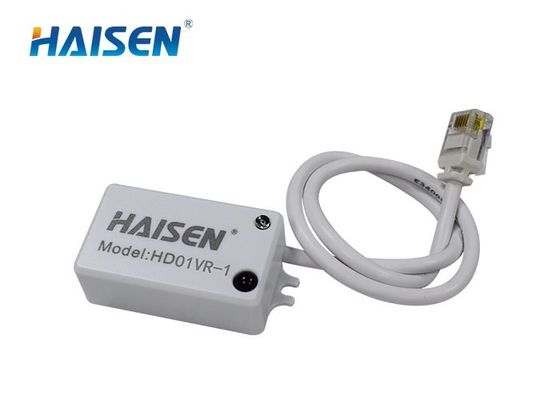

Linear Light Small DC Microwave Motion Sensor Output 5V PWM 5V TTL

Place of Origin China
Brand Name HAISEN
Certification CE
Model Number HD01VR-1
Minimum Order Quantity 100PCS
Price USD3.7-4.5/PCS
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Voltage 12VDC Warranty 5 Years
Installation Height 6M Height Function Dimmable Sensor With Remote Control
Daylight Sensor Support Output 5V PWM/5V TTL
High Light

5V PWM DC Microwave Motion Sensor

,

5V TTL DC Microwave Motion Sensor

,

5V TTL Small Motion Sensor

Leave a Message
Product Description

Linear Light Small DC Microwave Motion Sensor Output 5V PWM 5V TTL



CE Approved 12VDC Remote Control Small Sensor For Linear Light



Features:

  • Detection area, hold time, stand-by period, stand-by dimming level, daylight sensor and mode can be precisely set via remote control
  • Have passed CE RoHS certificate
  • 12V auxiliary power supply
  • Dimming function

Product Description

Operating voltage    12 VDC
Operating current    30mA±5%
   Output    5V PWM/5V TTL
   Stand-by power    <0.5W
   Detection area    25%/50%/75%100%
   Hold time    5s/30s/1min/3min/5min/10min/20min/30min
   Daylight threshold    2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
   Stand-by period    0S/10s/30s/1min/5min/10min/30min/+∞
   Stand-by dimming level    10%/20%/30%/50%
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <0.3mW
   Mounting height    Max.6m(ceiling mounted) Max.3m(wall mounted)
   Detection range    Max.ø14m(ceiling mounted) Max.10m(wall mounted)
   Operating temperature    -20°C~+55°C
   IP rating    IP20
   Life time    50,000 hours
   Warranty    5 years



Wiring diagram



Size



Detection coverage



Demo



Application
