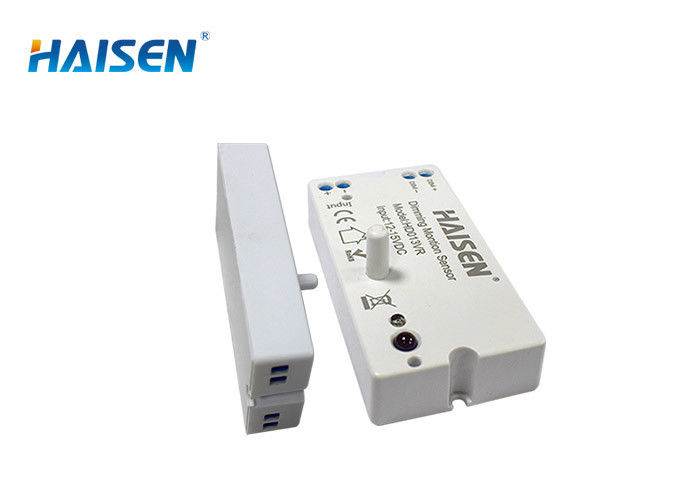

Waterproof Dimmable Occupancy Sensor Ceiling Mount Outdoor Motion Sensor

Place of Origin China
Brand Name HIASEN
Certification CE RoHS
Model Number HD013VR
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Microwave Frequency 5.8GHz±75MHz Operating Voltage 10-15VDC
Stand-by Dimming Level 10%/20%/30%/50% Output PWM/0-10V
Detection Area 25%/50%/75%/100% Detection Angle 30°-150°
High Light

dc motion detector

,

led driver sensor

Leave a Message
Product Description

Rod Antenna Compact Design 12VDC Remote Control For Panel Light





Features

  • 12VDC input design, compact design for most kinds of light, such as ceiling light, tri-proof light and panel light.
  • Rod antenna makes reliable detecting, avoid false trigger when sensor built-in backside of metal LED plate
  • Sensor data can be simply set via remote control
  • PWM dimming function and 0-10V dimming functuion





Specifciation

Operating voltage 10-15VDC
Operating current ≥30mA
Detection angle 30°-150°
Detection Area 25%/50%/75%/100%
Operating Frequency 5.8GHz±75MHz
Output PWM/0-10V
Mounting Height Max.2.5-4m/8.2-13.12ft
Detection range (Radius) 2-4m/6.56-13.12ft
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ Disable
Stand-by period 0S/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Warranty 5 years
IP rating IP 20
Life time 50000h
Packaging Requirement Bubble pack, paper flat, outer carton.
Installation Installed inside lamps
Approval CE, ROHS
Operating temperature -25°C~+60°C



Wiring diagarm


Size

Detection coverage

Demo

Application
