CE RoHS Approval Dc Motion Detector 20-60VDC Operated LED Driver Sensor

Place of Origin China
Brand Name HIASEN
Certification CE RoHS
Model Number HD014V
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Detection Area 50%100% Microwave Power 2Lux/30Lux/50Lux/ Disable
Hold Time 5s/30s/1min/10min Mounting Height Max.2.5-4m/8.2-13.12ft
Detection Range Max.12m/39.36ft Approval CE RoHS
High Light

dc motion detector

,

led driver sensor

Leave a Message
Product Description

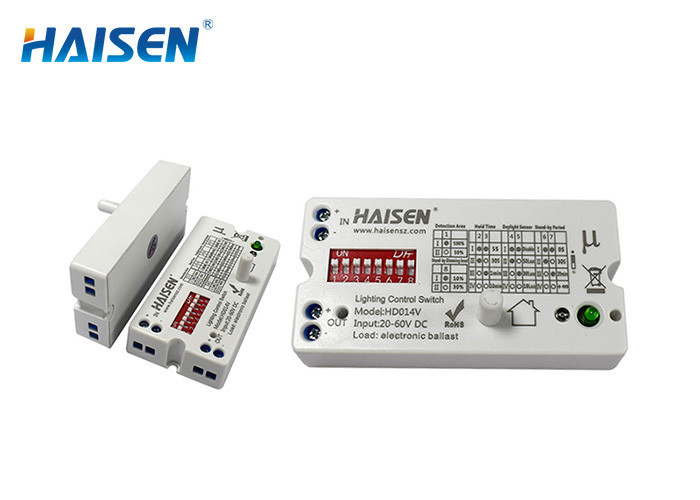

CE RoHS Approval 20-60VDC Operated LED Driver Sensor Rod Antenna





Features:

   HD014V is compact design, it is workble for ceiling light, panel light and tri-proof light, it direct Use the electric of driver and LED, and rod antenna design makes reliable detecting, avoid false trigger when sensor built-in backside of metal LED plate.




Specifciation

Operating temperature -25°C~+60°C
Stand-by period 0s/30s/20min/+∞
Stand-by dimming level 10%/30%
Detection angle 30°-150°
Detection Area 50%100%
Operating voltage 20-60VDC
Operating current 1A (Max)
Microwave Frequency 5.8 GHz ±75 MHz
Microwave power <1mW
Stand-by power <0.5W(standby),<1W(operation)
Mounting Height Max.2.5-4m/8.2-13.12ft
Detection range Max.12m/39.36ft
Hold time 5s/30s/1min/10min
Daylight threshold 2Lux/30Lux/50Lux/ Disable
Packaging Requirement Bubble pack, paper flat, outer carton.
Installation Installed inside lamps
Approval CE, ROHS
Warranty 5 years
IP rating IP 20
Life time 50000h


Wiring diagarm

Size

Detection coverage

DIP Switch

Demo

Application
