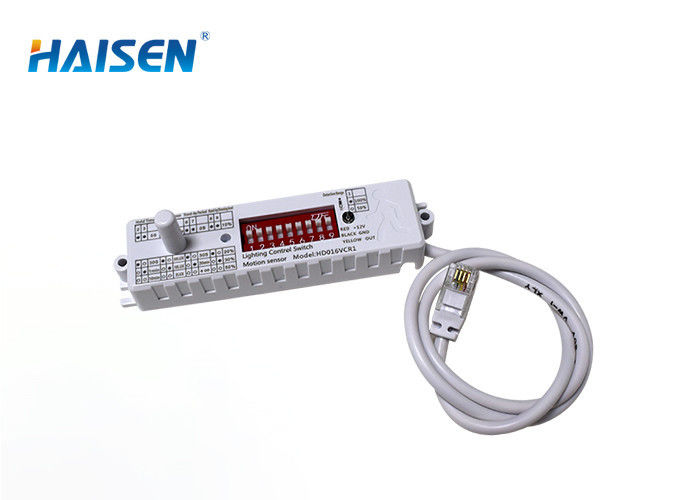

12 Volt DC Dimmable Occupancy Sensor Microwave Frequency 5.8GHz

Place of Origin China
Brand Name HAISEN
Certification CE / RoHs
Model Number HD016VCR 1
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Microwave Frequency 5.8GHz±75MHz Appearance Design Rod Antenna And Dip Switch Design
Mounting Height Max.4m/13.12ft Detection Range Max.ø10m/32.8ft
Operating Voltage 12VDC Lifetime 50000 Hours
IP Rating IP 20 Operating Temperature -20°C~+60°C
Microwave Power <0.3mW
High Light

12VDC Dimmable Occupancy Sensor

,

5.8GHz Dimmable Occupancy Sensor

,

5.8GHz LED Emergency Driver Sensor

Leave a Message
Product Description

12 Volt DC Dimmable Occupancy Sensor Microwave Frequency 5.8GHz



12 volt DC motion sensor rod anteena dimmable motion detector instal inside in the lamp



Features:



  • Liner design sensor with operating voltage of 12VDC for ceiling light,tri-proof light,battenlight and panel light.
  • With 9 DIP switch keys, it provides more options for the Hold time, Detection area, Stand-by period, Stand-by dimming level and Daylight threshold.
  • Turn off the light or dim the light to a lower brightness like 10%, 20% and the like when no movement to save energy and play a role of sustainability.
  • Smartly turn on the light to be 100% brightness when detect the movement with an insufficient daylight.
  • With rod antenna, the module is super compact to be easily installed inside of tri-proof and linear light with a very small hole.
  • IP20 and 5 years of warranty.
  • Certificate of CE/RoHs

Specifications:



Safety & EMC Approval CE, ROHS
Sensor Parameters Operating temperature -20°C~+60°C
Daylight threshold 2Lux/10Lux/50Lux/ Disable
Detection angle 30°-150°
Detection Area 50%100%
Stand-by period 0s/30s/20min/+∞
Stand-by dimming level 10%/20%/30%/50%
Stand-by power <0.5W(standby)
Hold time 5s/30s/1min/10min
Mounting Height Max.4m/13.12ft
Detection range Max.10m/32.8ft
Wireless Parameters Microwave Frequency 5.8 GHz ±75 MHz
Microwave power <0.3mW
Input Operating voltage 12VDC
Operating current ≤25A(Max)
Others Packaging Requirement Bubble pack, paper flat, outer carton.
Installation Installed inside lamps
Warranty 5 years
IP rating IP 20
Life time 50000h






    ON/OFF            Daylight sensor        Detection area           Hold time          Warranty 5 years



stand-by period     stand-by dimming

                                      level

Dimensions:

Rod antenna makes reliable detecting, avoid false trigger when sensor built-in backside of metal LED plate.



Wiring Diagram:

It’s very simple to be connected with the driver and LED light.



Detection coverage:



Max. detection range will be 12m/39.36ft for ceiling mounted with Max. Mounting height of 2.5-4M/8.2-13.12ft.



Dip switching settings:

Detection Area (Sensitivity)

  1
ON 100%
- 50%



In this area,movement will be detected and able to trigger the sensor.

100% detection area is also known as the strong sensitivity.

Hold Time

  2 3
ON ON 5s
ON - 30s
- ON 1min
- - 10min

The period of light

keeping 100% brightness after moving objects

leave the detection area.

Daylight Threshold

  4 5
ON ON Disable*
ON - 50Lux
III - ON 10Lux
- - 2Lux

*Disable means the daylight sensor does not work.

The sensor will turn on light once motion is detected regardless of ambient light level.

Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as"disable",the sensor works everytime it detects motion regardless the ambient brightness.

Stand-by Period

  6 7
ON ON 0s
ON - 30s
- ON 20min
- - +∞

The period of light keeping low output before it's completely switched off. When it's preset as"∞“, the light always keep at low output if no movement in the detection area and doesn't turn off.

Stand-by dimming level

  8 9
ON ON 10%
ON - 20%
- ON 30%
- - 50%


The definition of low output in the standby period.



Application:

It could penetrate most materials like glass, plastic and the like but metal which make it be very widely used for ceiling light/tri-proof light and panel light in different occasions like parking lot, production, industrial field and so on.
