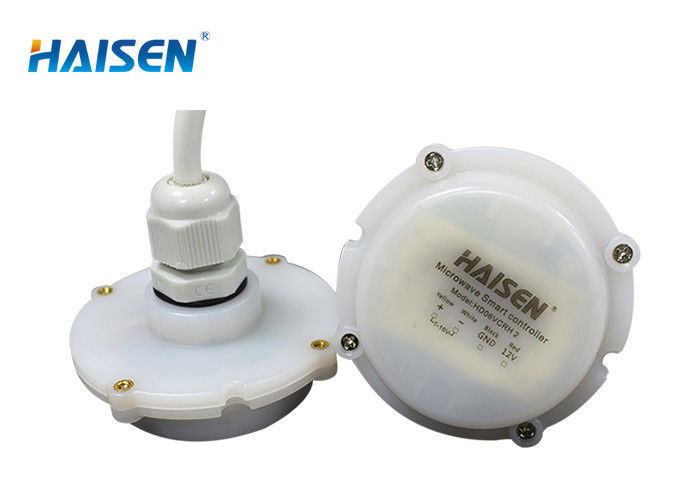

10 - 15 Volt DC Motion Sensor Dual PD For Tri - Proof And Highbay Light

Place of Origin China
Brand Name HAISEN
Certification RoHS CE
Model Number HD06VCRH 2
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Mounting Height Max.15m/49.2ft Apperance Color White Or Black
Application Tri-proof Light/Battenlight/UFO Highbay Light Detection Distance Diameter 14m/45.92ft Max.
IP Rating IP 65 Usage Lighting Control
Power Supply DC 10-15V Product Name Microwave Motion Sensor
Warranty 5 Years Lifetime 50000 Hours
High Light

dc motion detector

,

dc pir sensor

Leave a Message
Product Description

10-15 volt DC microwave motion sensor dual PD for tri-proof and highbay light



Features:

  • ​Circular design sensor with operating voltage of 10-15VDC for tri-proof light and highbay light.
  • Hold time,Detection area,Stand-by period,Stand-by dimming level and Daylight threshold could precisily by remote controller.
  • Turn off the light or dim the light to a lower brightness like 10%,20% and the like when no movement to save energy and play a role of sustainability.
  • Smartly turn on the light to be 100% brightness when detect the movement with an insufficient daylight.
  • Mounting height reachable 15m/49.2ft and detection range up to 14m/45.92ft diameter.
  • IP 20 and 5 years of warranty.
  • Certificate of CE/RoHS.



Specifications

Operating voltage 10-15 VDC
Operating current 30mA±5%
Output DIM 1-10V
Satnd-by power <0.5W
Detection area 25%/50%/75%/100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/50Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Detection angle 30°-150°
Control line Red 12V;Black GND;White1-10V -;Yellow1-10V+
Mounting height Max.15m/49.2ft
Detection range Max.Ø14m/45.92ft
Operating temperature -20℃-+60℃
Lifetime 50000 hours
IP rating IP 65
certificate RoHS CE





    ON/OFF             Daylight sensor        Detection area          Hold time          Warranty 5 years        Remote control



Stand-by period    Stand-by dimming         10-15m

                                      level                      Highbay



Dimensions:

Circular design sensor with operating voltage of 10-15VDC for tri-proof light and highbay light.





Wiring Diagram:

Control line would be Red 12V;Black GND;White1-10V -;Yellow1-10V+.





Dusk/Dawn sensor:

Dual-PD technology brings a fully automatic dusk/dawn sensor which can tell the difference between natural light and LED light,to ensure the light will be off when needed.



Detection coverage:

Mounting height reachable 15m/49.2ft and detection range up to 14m/45.92ft diameter.



Application Demo - Function Demo-On/off control:



  With sufficient daylight,                  With insufficient daylight,              After last detection,the light will be

  even when motion                          when motion detected,                  dimmed down to the stand-by dimming

  detected, light remains OFF.           light ON.                                        level after holdtime.



    After the stand-by period,

    light OFF.



Application:

The motion sensor can penetrate most of objects such as glass,wood,plastic but metal.It won't be affected by ambient temperature,dust and widely applied in office,corridor,fire exit,warehouse,basement and other indoor lighting places for saving energy.
