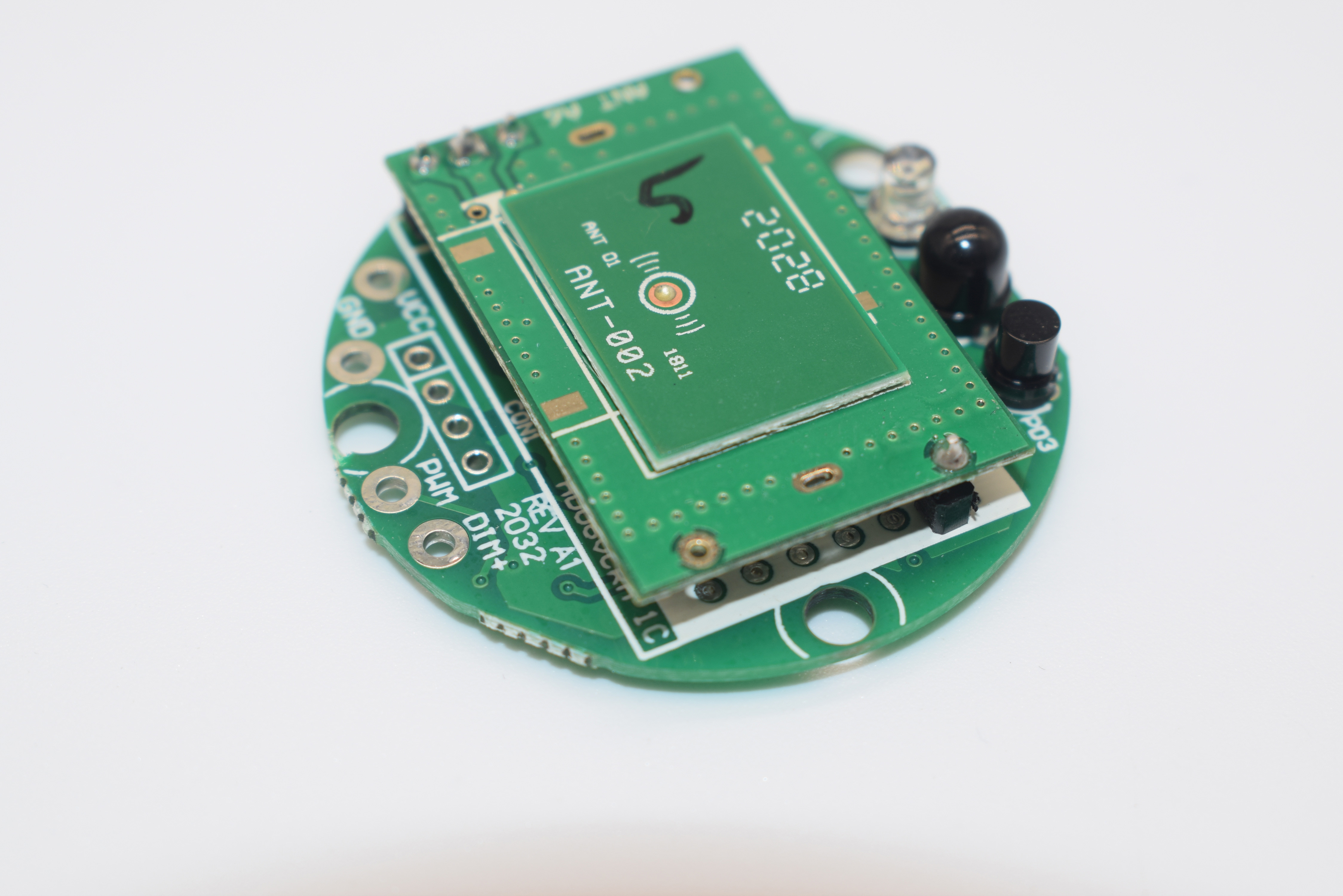

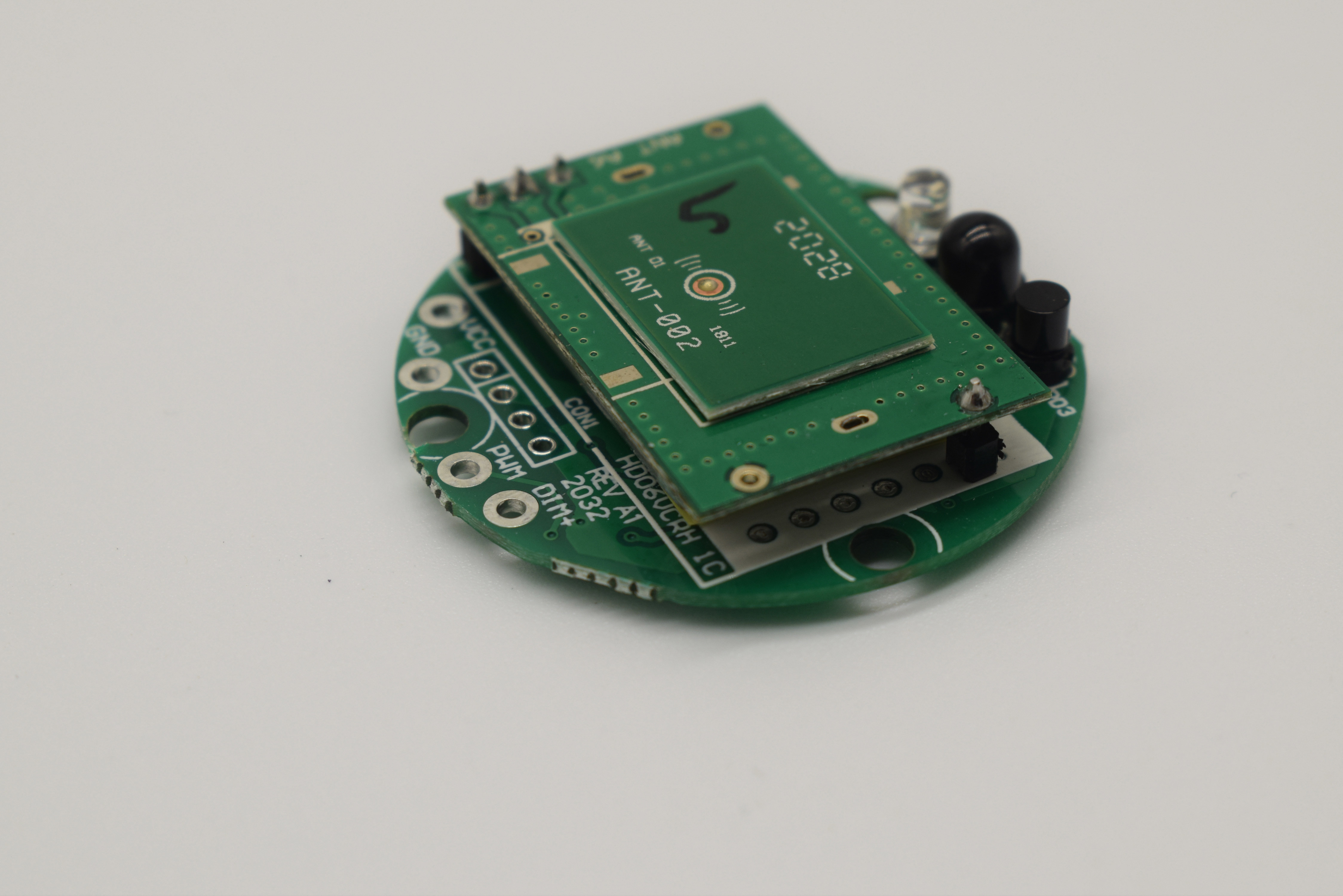

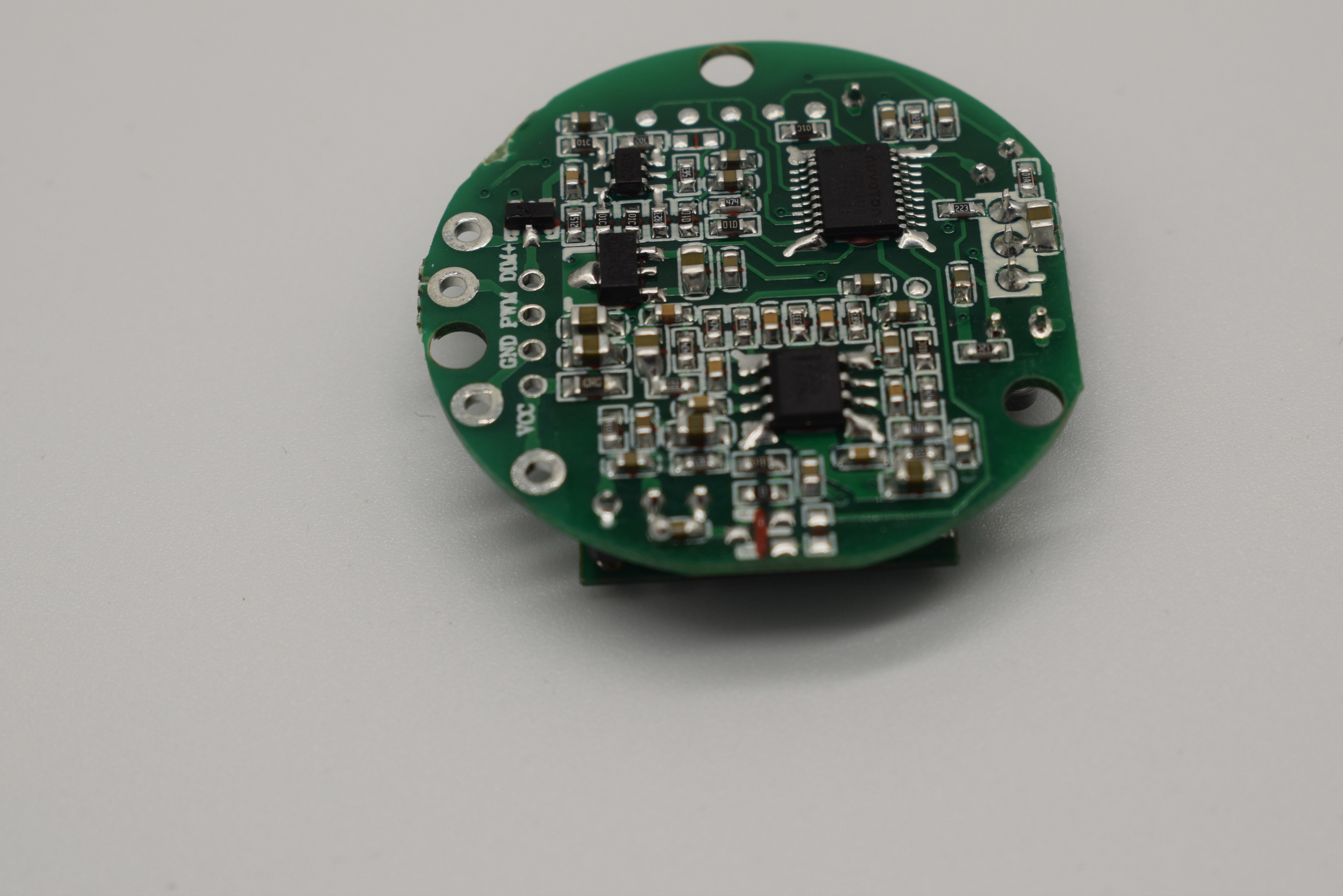

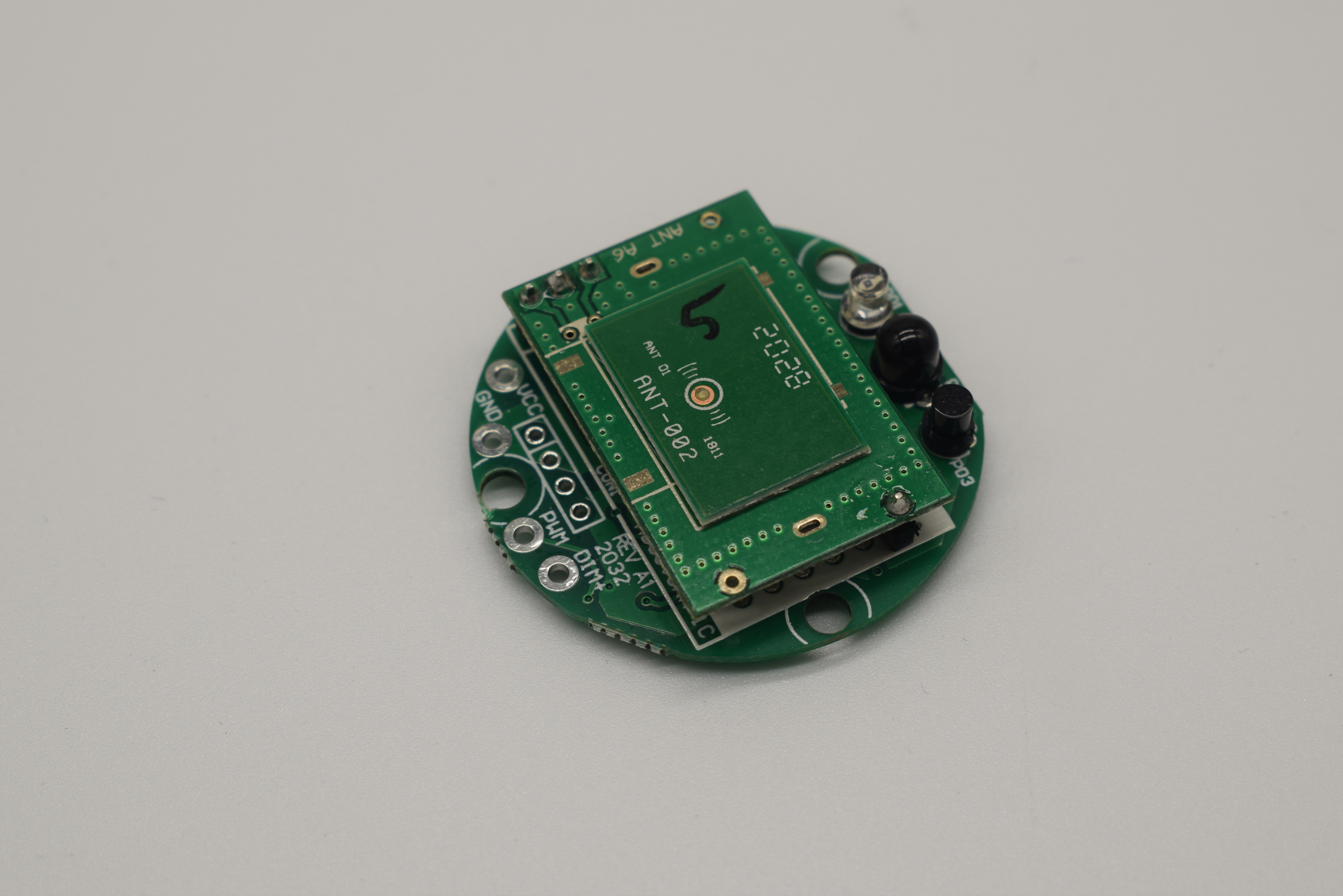

Daylight Priority Bare Board DC Motion Sensor 10m Installation Height

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD06VCRH 1C
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details bubble pack, paper flat, drying agent,outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Operating Voltage 10-15VDC Stand-by Power <30mA
Output Dim 1-10V/5V PWM Microwave Power <0.3mW
Connect Method Bonding Pad,+12v,GND,DIM+ Operating Temperature -20°C~+60°C
Mounting Height 10m/32.81ft (ceiling Mounted) Motion Detection 0.5~1.0m/s
High Light

1.0m/s DC Motion Sensor

,

32.81ft height dc motion sensor

,

Daylight priority 12volts motion sensor

Leave a Message
Product Description

Daylight Priority Function Bare Board 10m Installation Height





Features of Sensor:

1. Automatic On/off control with a Daylight sensor.

2. Optional detection range, hold time, daylight threshold, Stand-by period and

Stand-by dimming level.

3. Remote control setting.

4. 5 years warranty.

Product Description of  Sensor:

Operating voltage 10-15VDC
Operating current ≤30mA (Current consumption)
Output DIM 1-10V
Connection mode bonding pad,+12v,GND,DIM+
Stand-by power ≤0.5W
The dimming mode Add/subtract dimming (power mode 10%-100%, induction mode 60%-100%)
Microwave frequency 5.8GHz±75MHz
Microwave Power <0.3mW
Mounting Height 10m/32.81ft (ceiling mounted)
Detection Range Max,ø14m/45.92ft (ceiling mounted)
Detection angle 30°-150°
Method of setting up Remote control
Detection area 25%/50%/75%/100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Certificate RoHS CE
Motion detection 0.5~1.0m/s
Operating Temperature -20°C~+60°C
IP grade IP20
Warranty 5 years

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by

period 0s/Stand-by dimming level 10%.



   ON/OFF Control           Detection Area              Hold Time           Daylight Threshold      Warranty of 5 years



   Stand-by Period    Stand-by Dimming Level    Remote Control





Mechanical structure of Dimmable Sensor:

The output signal of this product is PWM and DIM 1-10V,which can be applied either way.









Dimensional drawing (Unit: mm) of Dimmable Sensor:






Wiring diagram of Dimmable Sensor

Detection coverage of Dimmable Sensor:

Typical installation height 10m

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.





Daylight Priority of Dimmable Sensor:

Dusk/Dawn sensor:
Dual-PD technology brings a fully automatic dusk/dawn sensor which can tell the difference between natural light and LED light, to ensure the light will be off when needed.

With Daylight priority function, HD06VCRH is able to differentiate artificial light brightness from natural light after installed inside the fixture,and automatically turn off light when ambient brightness exceeds preset lux level.

Precondition of Daylight priority:
1. Standby period is +∞;
2. Standby dimming level is on 10%, 20% or 30%;
3. Daylight threshold is on 30Lux, 50Lux, 80Lux or 120Lux.

Application____Daylight Priority:

Light automatically on         With insufficient                   Light dims to standby         Light off when
when ambient                     ambient brightness,              level if no motion               ambient lux level
brightness is lower             light dims to 100%                detected after                     is higher than
than preset lux level.          when motion detected .         holdtime.                           preset lux amount.

Application:
1. Automatically ON/OFF function:
Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.



With sufficient daylight,                  With insufficient daylight,              After the last detection and
even when motion detected,           when motion detected, light          the present hold time
light remains OFF.                           ON.                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.
When motion is detected,               After people leave the                    After the last detection and
the sensor will switch on the          detection area, light remains          the present hold time
light to 100% brighteness.              100% brightness within                  elapsed, light OFF.
                                                      hold time.

3. Function Demo - Dimmable control/Corridor function
With insufficient                With sufficient daylight,     After the stand-by           After last detection, the
daylight, when motion       even when motion             period, light OFF.             light will be dimmed
detected, light ON.            detected, light remains                                             down to the stand-by
                                         OFF.                                                                          dimming level
                                                                                                                          (10%,20%,30% or 50%)
                                                                                                                          after holdtime.



Attention:
1. Please read the instructions carefully before using this product and keep it well for all users to
read at any time.
2. The sensor should be installed by qualified electrician and ensure power is off before the
installation.
3. We reserve the right to modify any incorrect text, image and necessary technical parameters.
4. Any unauthorized modification is forbidden, otherwise all guarantees will be immediately invalid.

Installation precautions:
1. Microwave sensor can be installed in any lamp except the one with full metal shell.
2. The detected surface cannot be shielded by metal objects.
3. Make sure the microwave module is completely exposed outside.
4. The detection surface of the sensor module shall be installed facing the detection area.
5. Should be kept away from the driver to avoid interference generation and lamp flashing.
6. Wiring must be strictly in accordance with the wiring diagram to avoid short circuit.

Application Environment:
1. Suitable for indoor installation to avoid false triggering due to external factors such as rain, wind or tree swing.
2. Shall not be installed in the place with all four metal shelters and small space (such as galvanized-iron roof ).
3. Shall note be mounted installation, so as to avoid false trigger caused by the lamp itself shaking.
4. Shall not be installed next to large operating machines such as ventilator/ceiling fan to avoid false triggering caused by machine vibration.

User Notes:
1.Microwave can penetrate walls or glass thinner than 20cm and attenuate if thicker than 20cm.
2. The driver voltage shall be stable and float within 10%.
3. Detection area will be affected by speed of motion, mounting height and movement volume.
4. Conduct test on sunny days without the lampshade which will affect the tested lux value.
