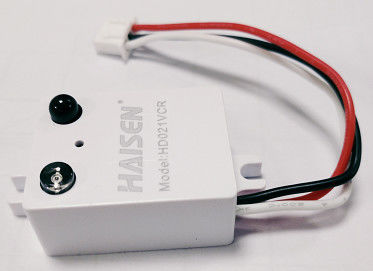

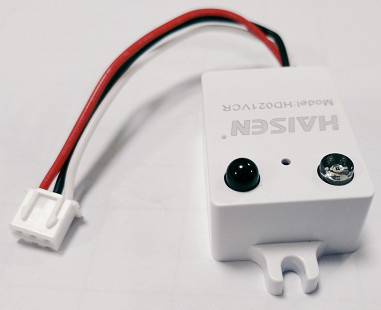

Compact Size 7-12VDC Input 5v PWM Output Microwave Motion Sensor

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number HD021VCR
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details bubble pack, paper flat, drying agent,outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Control Method 5V PWM/ON,OFF Microwave Frequency 5.835GHz-5.875GHz
Detection Area Very Near/Near/Medium/Far Hold Time OFF/30s/10min/30min
Daylight Threshold OFF/ Over Cast/Dusk/Night Stand-by Period OFF/30s/10min/30min
Stand-by Dimming Level Remarks: Stand-by Dimming Level Is Defaulted To Be Half Brightness Of Hold Time. Light Dim Down Gradually Until Off. Mounting Height Max. 4.5m/14.76ft(ceiling Mounted)
High Light

Microwave DC Motion Sensor

,

5.875GHz Microwave Motion Sensor

,

0.3mW Microwave Motion Sensor

Leave a Message
Product Description

Compact Size 7-12VDC Input 5v PWM Output Microwave Motion Sensor





Features of Sensor:

1. Automatic On/off control with Daylight sensor.

2. Light sensor is available when correspondent component is exter-connected .

3. IR remote is available when correspondent component is exter-connected,and microwave motion sensor distance, hold time, lux threshold etc can be adjusted by IR remote.

4. Plate-antenna applied for the sake of max long-distance detection purpose.

5. 5 years warranty.





ON/OFF Control                  Detection area                    Daylight sensor                        Hold time





Remote control                 Stand-by period                Stand-by dimming level       5 years warranty



Technical date of DC sensor:

Operating voltage 7-12VDC
Stand-by power ≤0.5W
Operating current <30mA±5%
Control method On/off / 5V PWM (Gradient)
Microwave frequency 5.835GHz-5.875GHz
Microwave power <0.3mW
Operating temperature -20°C~+60°C
IP grade IP 20
Warranty 5 years




Application:



Dimmable control/Corridor function:
In a well-lit environment, it can detect the movement of objects in time and still keep the lights off
When the external environment starts to dim and is lower than the preset light sensitivity value, the motion of an object is detected. The sensor then controls the lamp and keeps the light on
When the moving object leaves the detection area, the lamp will enter the delay stage (keep the brightness when triggered). After the delay time, the lamp will keep the off state and wait for the next trigger.
After the stand-by period, light OFF.
Parameters of DC sensor:
Detection area Very near/Near/Medium/Far
Hold time OFF/30s/10min/30min
Daylight threshold OFF/ Over cast/Dusk/Night
Stand-by period OFF/30s/10min/30min
Stand-by dimming level Remarks: Stand-by dimming level is defaulted to be half brightness of hold time.Light dim down gradually until off.
Mounting height Max. 4.5m/14.76 (ceiling mounted)
Detection range Max.ø10m/32.8ft (ceiling mounted)
Detection angle 30°~150°
Motion detection 0.5~1.5m/s





DC motion sensor Pattern:

Typical installation height 2-3m
This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.
The shell size is 46*24.4*14.5mm
Terminal lead output, red VCC, black GND, white PWM
The output signal is 5v PWM output.




Hold time:

Hold time level OFF 30s 10min 30min
Time to dim to stand-by brightness from current brightness (half of current brightness) OFF 30s 10min 30min
Time to dim to OFF from stand-by brightness(half of current brightness) OFF 30s 10min 30min



Sense distance:
Distance level Very near Near Medium Far
Distance range 1-3m 2-4m 3-5m 4-7m





Installation:

suitable for ceiling lamp,panel lamp,bar lamp,etc.





Match the remote HD08R:
