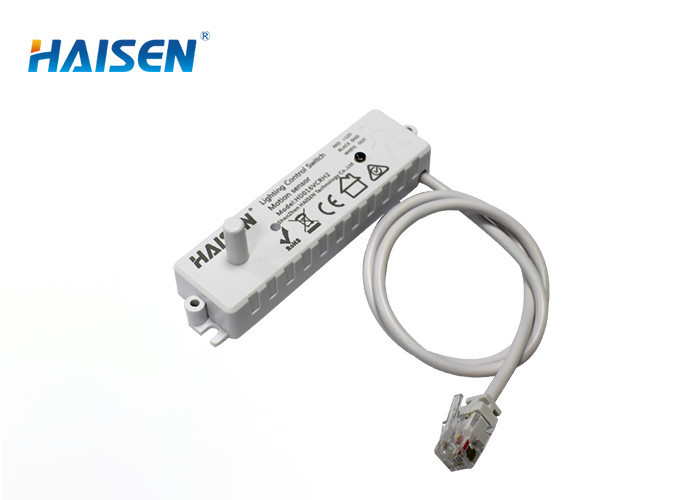

5.8GHz Slim Design 12V DC Motion Sensor Tri-proof / Linear light

Place of Origin China
Brand Name HAISEN
Certification CE / RoHs
Model Number HD016VCR 3
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs Per Month
Product Details
Input Voltage 12VDC Output PWM
Mounting Height Max.4m/13.12ft Module Rod Antenna
Detection Radius Max. 5m Operating Temperature -20°C~+60°C
Motion Detection 0.5~1.5m/s Microwave Power <0.3mW
High Light

12v dc motion sensor

,

Tri proof dc motion sensor

,

Linear light Slim Motion Sensor

Leave a Message
Product Description

5.8GHz Slim Design 12V DC Motion Sensor Tri-proof/Linear light



DC Motion Sensor Dimensions:



- 85*22.3*11.7mm

- Super slim design with rod antenna to make the sensor be suitable for linear light, tri-proof light with a smaller hole.

- Solve the shadow of the antenna with reliable detection.

- 3-5 detection radius makes it more stable and avoid false trigger when built in the light in room, parking lot etc.










DC Motion Sensor Specifications:

Sensor Parameters Operating temperature -20°C~+60°C
Daylight threshold 2Lux/10Lux/50Lux/ Disable
Detection angle 30°-150°
Detection Area 50%100%
Stand-by period 0s/30s/20min/+∞
Stand-by dimming level 10%/20%/30%/50%
Stand-by power <0.5W(standby)
Hold time 5s/30s/1min/10min
Input Operating voltage 12VDC
Operating current ≤25mA(Max)

5.8GHz Slim Design 12V DC Motion Sensor Tri-proof / Linear light 0




DC Motion Sensor Wiring Diagram:

Three control line to be connect with LED driver:

RED is for connecting with +12V

BLACK is for connecting with GND

YELLOW is for connecting with OUT

5.8GHz Slim Design 12V DC Motion Sensor Tri-proof / Linear light 1





Application:

It could penetrate most materials like glass, plastic and the like but metal which make it be very widely used for ceiling light/tri-proof light and panel light in different occasions like parking lot, production, industrial field and so on.
