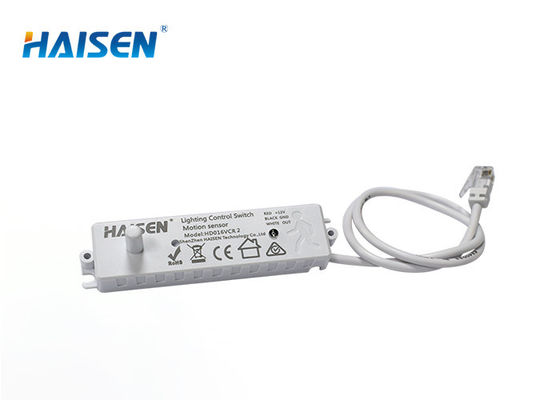

12VDC Input Motion Sensor Body Detection 2-5m Radius with Pins

Place of Origin China
Brand Name HAISEN
Certification CE / RoHs
Model Number HD016VCR 3
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs Per Month
Product Details
Input Voltage 12VDC Output PWM
Mounting Height Max.4m/13.12ft Module Rod Antenna
Detection Radius Max. 5m Operating Temperature -20°C~+60°C
Motion Detection 0.5~1.5m/s Microwave Power <0.3mW
High Light

Input 12VDC Motion Sensor

,

PWM DC Motion Sensor

Leave a Message
Product Description

12VDC Input Motion Sensor Body Detection 2-5m Radius with Pins

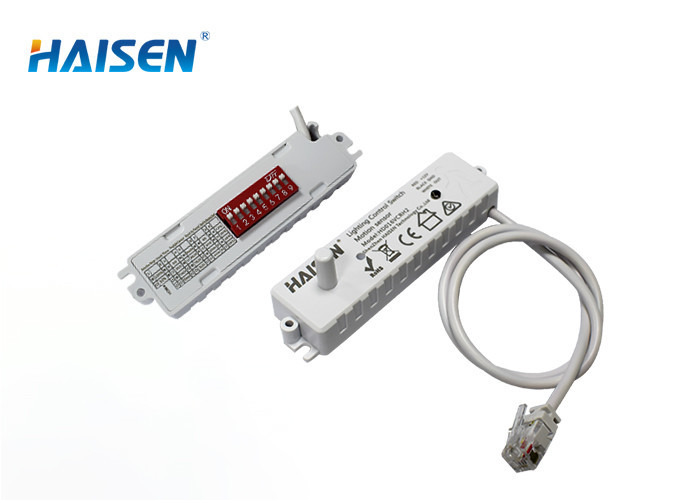

DC Motion Sensor Dip switching Settings:



Site Suitable Detection Area Suitable Hold Time Suitable Stand-by Dimming Level Suitable Stand-by Period
Parking Lot. 100% 5s 20% 30s
Corrider 100% 30s 10% 30s
Living room 50% 30s / 0s
Supermarket 100% 1min 30%
Hospital 100% 1min 10%
Warehouse 100% 5s 20% 30s





Detection Area (Sensitivity)

  1
ON 100%
- 50%



Usually 100% sensitivity is the most widely used option for many case.

However, if install the sensor in the house, like corrider, living room or restroom, then 50% sensitivity would be better to avoid any false trigger beacuse of the small space.



Hold Time

  2 3
ON ON 5s
ON - 30s
- ON 1min
- - 10min

The period of light keeping 100% brightness when detect any movement

12VDC Input Motion Sensor Body Detection 2-5m Radius with Pins 0

Daylight Threshold

  4 5
ON ON Disable*
ON - 50Lux
III - ON 10Lux
- - 2Lux

*Disable means the daylight sensor does not work.

The sensor will turn on light once motion is detected regardless of ambient light level.

Definition of the ambient brightness; only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as"disable",the sensor works everytime it detects motion regardless the ambient brightness.

12VDC Input Motion Sensor Body Detection 2-5m Radius with Pins 1

Stand-by Period

  6 7
ON ON 0s
ON - 30s
- ON 20min
- - +∞



The period of light keeping low output before it's completely switched off. When it's preset as"∞“, the light always keep at low output if no movement in the detection area and doesn't turn off.



Stand-by dimming level

  8 9
ON ON 10%
ON - 20%
- ON 30%
- - 50%




The definition of low output in the standby period.



DC Motion Sensor Dimensions:



- 85*22.3*11.7mm

- Super slim design with rod antenna to make the sensor be suitable for linear light, tri-proof light with a smaller hole.

- Solve the shadow of the antenna with reliable detection.

- 3-5 detection radius makes it more stable and avoid false trigger when built in the light in room, parking lot etc.







Application:

It could penetrate most materials like glass, plastic and the like but metal which make it be very widely used for ceiling light/tri-proof light and panel light in different occasions like parking lot, production, industrial field and so on.
