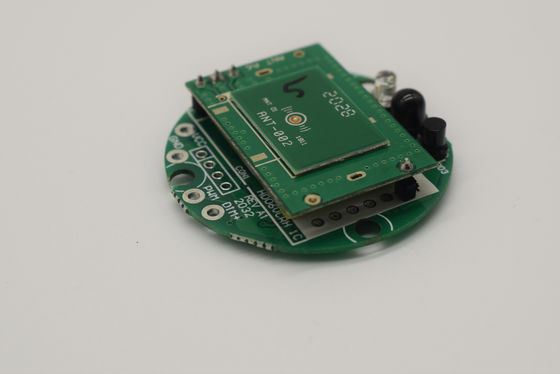

0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High
0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High 0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High 0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High 0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High

0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: RoHS
Model Number: HD06VCRH 1C
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: bubble pack, paper flat, drying agent,outer carton.
Delivery Time: 1-3 days for sample order, 1-3 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200,000pcs per month
Contact Now
Specifications Product Description Request A Quote
Specifications
Specifications
Operating Voltage: 10-15VDC
Operating Current: <30mA
Output: Dim 0-10V
Detection Range: Max,ø14m/45.92ft (ceiling Mounted)
Mounting Height: Max.10m/32.81ft (ceiling Mounted)
Connect Method: Bonding Pad,+12v,GND,DIM+
Motion Detection: 0.5~1.0m/s
Operating Temperature: -20°C~+60°C
Defaulted Setting: 10s ON When Power ON Before Sensor Mode
High Light:

10V Microwave Sensor

,

10M Microwave Sensor

,

DC Microwave Motion Sensor
Product Description

0-10V Microwave Sensor φ39.1*8mm Module for UFO Max. 10m High

For UFO - installed in the center of the UFO.







DC Motion Sensor Product Specifications:

Operating voltage 10-15VDC
Operating current ≤30mA (Current consumption)
Output DIM 0-10V
Connection mode bonding pad,+12v,GND,DIM+
Stand-by power ≤0.5W
The dimming mode Add/subtract dimming (power mode 10%-100%, induction mode 60%-100%)
Microwave frequency 5.8GHz±75MHz
Microwave Power <0.3mW
Mounting Height 10m/32.81ft (ceiling mounted)
Detection Range Max,ø14m/45.92ft (ceiling mounted)
Detection angle 30°-150°
Method of setting up Remote control
Detection area 25%/50%/75%/100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level 10%/20%/30%/50%
Certificate RoHS CE
Motion detection 0.5~1.0m/s
Operating Temperature -20°C~+60°C
IP grade IP20
Warranty 5 years

Factory Default Setting: Detection area 100%/ Hold time 5s/ Daylight threshold Disable/Stand-by

period 0s/Stand-by dimming level 10%.

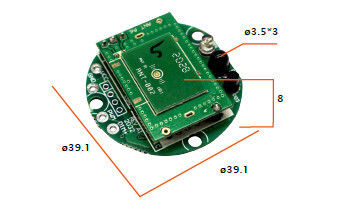

0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High 0



DC Motion Sensor Mechanical structure:

The output signal of this product is PWM and DIM 0-10V,which can be applied either way.

With three installation hole, it's convenient to be fixed to the lighting fixture by screw.

With four welding spots, it supports wiring connection as well.











Daylight Priority of Dimmable Sensor:

Dusk/Dawn sensor:
Dual-PD, one could detect LED light and another one could detect natural light, to ensure the light will be OFF when it's daytime.

With Daylight priority function, HD06VCRH 1C is able to differentiate artificial light brightness from natural light after installed inside the fixture,and automatically turn off light when ambient brightness exceeds preset lux level.

Precondition of Daylight priority:
1. Standby period is +∞;
2. Standby dimming level is on 10%, 20% or 30%;
3. Daylight threshold is on 30Lux, 50Lux, 80Lux or 120Lux.

DC Motion Sensor Wiring diagram of Dimmable Sensor

0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High 1





Application____Daylight Priority:

Light automatically on         With insufficient                   Light dims to standby         Light off when
when ambient                     ambient brightness,              level if no motion               ambient lux level
brightness is lower             light dims to 100%                detected after                     is higher than
than preset lux level.          when motion detected .         holdtime.                           preset lux amount.

Application:
1. Automatically ON/OFF function:
Light on when detect movement and off after people leave at night. Applications: Corridor, Staircase.



With sufficient daylight,                  With insufficient daylight,              After the last detection and
even when motion detected,           when motion detected, light          the present hold time
light remains OFF.                           ON.                                               elapsed, light OFF.

2. No daylight function
The daylight threshold is set to "Disable".
Light on when detect movement, After people leave, Light off after stand-by period.
Applications: Dim places such as Basement Parking, Underpass.
When motion is detected,               After people leave the                    After the last detection and
the sensor will switch on the          detection area, light remains          the present hold time
light to 100% brighteness.              100% brightness within                  elapsed, light OFF.
                                                      hold time.

3. Function Demo - Dimmable control/Corridor function
With insufficient                With sufficient daylight,     After the stand-by           After last detection, the
daylight, when motion       even when motion             period, light OFF.             light will be dimmed
detected, light ON.            detected, light remains                                             down to the stand-by
                                         OFF.                                                                          dimming level
                                                                                                                          (10%,20%,30% or 50%)
                                                                                                                          after holdtime.
0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High 2


DC Motion Sensor Features :

1. 8mm thickness to save space for the UFO.

2. Daylight Priority to make sure the light will keep OFF when natural light is bright enough.

3. Remote control setting.

4. 5 years warranty.

5. 10m mounting height.

6. Three installation holes and four welding spots to support two ways of installation.

0-10V Microwave Sensor φ39.1*8mm(H) Module for UFO Max. 10m High 0

Installation precautions:
1. Microwave sensor can be installed in any lamp except the one with full metal shell.
2. The detected surface cannot be shielded by metal objects.
3. Make sure the microwave module is kept the same
4. The detection surface of the sensor module shall be installed facing the detection area.
5. Should be kept away from the driver to avoid interference generation and lamp flashing.
6. Wiring must be strictly in accordance with the wiring diagram to avoid short circuit.

Application Environment:
1. Suitable for indoor installation to avoid false triggering due to external factors such as rain, wind or tree swing.
2. Shall not be installed in the place with all four metal shelters and small space (such as galvanized-iron roof ).
3. Shall note be mounted installation, so as to avoid false trigger caused by the lamp itself shaking.
4. Shall not be installed next to large operating machines such as ventilator/ceiling fan to avoid false triggering caused by machine vibration.
