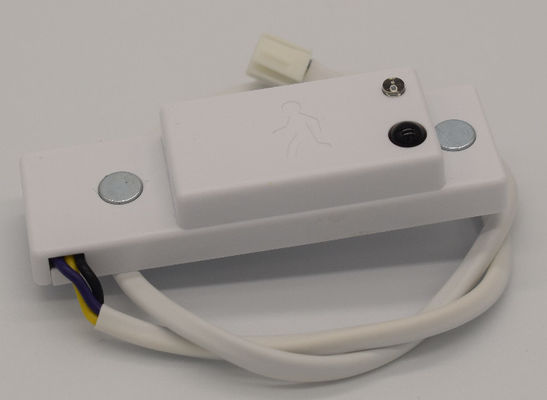

Wire Length 300mm 12V DC Motion Sensor For LED Tube Triproof Light

Place of Origin China
Brand Name HAISEN
Certification CE RoHS
Model Number US002-01VR-2
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details bubble pack, paper flat, drying agent,outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 200,000pcs per month
Product Details
Parameters Setting By Remote Control Motion Detected 0.5~1m/s
Power Supply 10.5-15VDC(Supply Current > 50mA) Warranty 5 Years
Wire Color Cable Length 300mm , Black 12V,Purple DIM+, Yellow DIM Usage Ceiling Light, Troffer, Triproof Light, Batten Light, Linear Light, LED Tube And Etc.
Size 66*20.5*12.1mm Mounting Way Magnet
High Light

RoHS 12V DC Motion Sensor

,

300mm Wire DC Motion Sensor

,

300mm Wire Motion Sensor

Leave a Message
Product Description

Wire Length 300mm 12V DC Motion Sensor For LED Tube Triproof Light



Wire Length 300mm Remote Control Easy Install Sensor With Dc Input



Installation of DC motion sensor:

3 pin connector,plug and plug,very easy to install and easy to use by end customer.

Installation precautions of motion sensor

1. Microwave sensor can be installed in any lamp except the one with full metal shell.

2. The detected surface cannot be shielded by metal objects.

3. Make sure the microwave module is completely exposed outside.

4. The detection surface of the sensor module shall be installed facing the detection area.

5. Should be kept away from the driver to avoid interference generation and lamp flashing.

6. Wiring must be strictly in accordance with the wiring diagram to avoid short circuit.





Suitable for ceiling light, troffer, triproof light, batten light, linear light, LED tube and etc.



Features of Sensor:

1. With connector to make it easier to be connected with the LED driver. Save time.

2. Automatic On/off control with Daylight sensor.

3. Compact sized suitable for ceiling light,troffer , triproof light, LED tube and etc.

5. -40~80℃ working temperature to support different environment;

5. Sensor size 66*20.5*12.1mm



Wiring diagram of Motion Sensor:

Wire color

Cable length 300mm , Black 12V,Purple DIM+, Yellow DIM

Control method

On/off / 1-10V /remote control

Microwave frequency

5.8GHz±75MHz

Operating voltage

10.5-15V DC (supply current>50mA)



Detection coverage of Motion Sensor:

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.

Mounting height

2.5-5m (ceiling mounted)

Detection range

D*H,radius1.5-4m*5m (ceiling mounted)

Detection angle

360°(ceiling mounted); <150° (Wall Mounted)

Motion detection

0.5~1.5m/s




Product Description of  Sensor:

Control line

Cable length 300mm , Black 12V,Purple DIM+, Yellow DIM

Operating temperature

-40°C~+80°C

Operating voltage

10.5-15V DC (supply current>50mA)

Warranty

5 years

Stand-by power

≤0.5W

Operating current

30mA

Control method

DIM/1-10V / remote control

Microwave frequency

5.8GHz±75MHz

Microwave power

<0.3mW

IP grade

IP 20



Mechanical structure of Motion Sensor:

Stand-by period

0s/10s/30s/1min/5min/10min/30min/+∞

Stand-by dimming level

10%/20%/30%/50%

Detection area

25%/50%/75%/100%

Hold time

5s/30s/1min/3min/5min/10min/20min/30min

Daylight threshold

2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable



Dimensional drawing (Unit: mm) of Motion Sensor:

Compact size suitable for all kinds of lamps.
