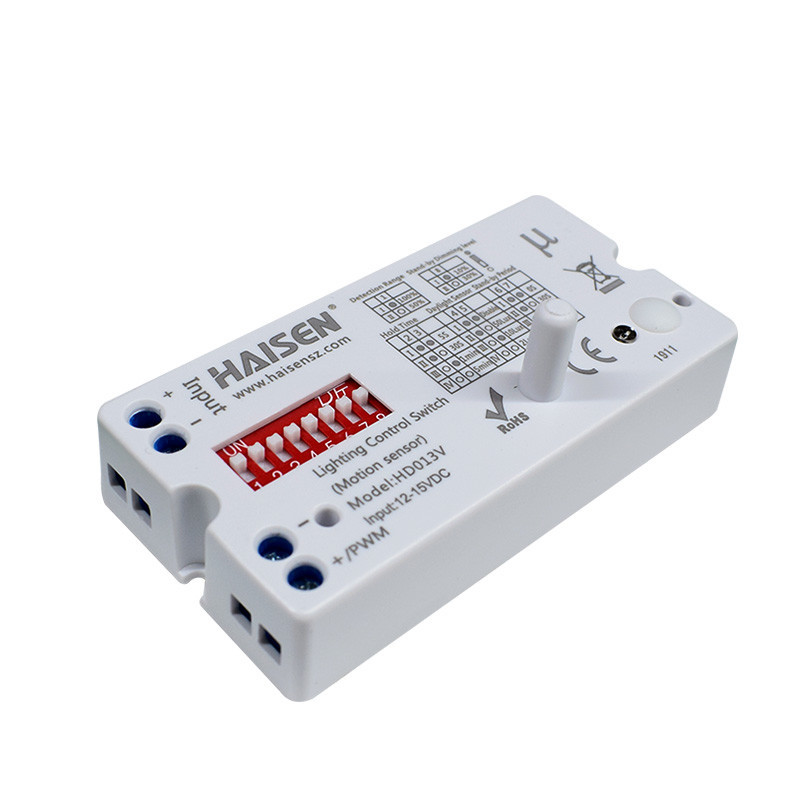

PWM Dimming DC Motion Sensor DIP Switch For Ceiling Tri Proof Light

Place of Origin China
Brand Name HIASEN
Certification CE RoHS
Model Number HD013V
Minimum Order Quantity 100pcs
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Stand-by Power ≤0.5W Detected Radius 2-5m
Operating Temperature -25~60℃ Mounting Height 2.5-4m (ceiling Mounted)
Motion Detection 0.5~1.5m/s Control Mode ON/OFF /dimming(PWM)
Microwave Frequency 5.8GHz±75MHz Operating Voltage 12-15V DC
High Light

PWM 10V DC Motion Sensor

,

5.8GHz DC Motion Sensor

,

PWM 10V Motion Detection Sensor

Leave a Message
Product Description

PWM Dimming DC Motion Sensor DIP Switch For Ceiling Tri Proof Light



PWM 0-10V Dimming Function DIP Switch For Ceiling Tri-proof Light



Features of DC sensor:

​1. Stand-by power ≤0.5W

2. It is adapted 12VDC input design

3. With DC operation voltage from LED driver, no need extra power from line

4. Work with 1-10v dimmable led driver for 2-step dimming function

5. Particularly suitable for price sensitive luminaries

6. Stand-by power ≤0.5W

7. 8 DIP switch keys to set hold time, stand-by dimming level, stand-by period

8. φ5.5mm rod antenna, need a small hole to expose the antenna, no shadow, no affection on the light beads array

9. 39.9mm width for being applied to tri-proof light perfectly

10. 2.5-4m mounting height for being applied in parking lot, lowbay warehouse

11. 2-5m detected radius

12. Operating temperature: -25~60℃

13. Better to ceiling installation



Dimmensions of DC sensor:

Size L*W*H:76.9*39.9*27.7MM
Operating temperature -20°C~+55°C
Warranty 5 years
Function setting By 8 dial switvh
IP grade IP 20





Wiring diagarm of DC sensor:

Control mode ON/OFF /dimming(PWM)
Output 5V PWM
Stand-by power ≤0.5W
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Operating voltage 12-15V DC
Input current 30mA(Max)


Detection coverage of DC sensor:

Mounting height 2.5-4m (ceiling mounted)
Detection range Radius,4-8m (ceiling mounted)
Detection angle ≤150°(Without glass)
Motion detection 0.5~1.5m/s


Mechanical structure of DC sensor:

Mode swapping PWM
Detection area 50%/100%
Setting mode DIP switch
Hold time 5s/30s/1min/5min
Daylight threshold 2Lux/10Lux/50Lux/disable
Stand-by period 0s/30s/5min/+∞
Stand-by dimming level 10%/30%



Setting of DC sensor:


Detection area(1)
In this area,movement will be detected and able to trigger the sensor.100% detection area is also known as the strong sensitvity.
Hold-time(2,3)
The period of light keeping 100% brightness after moving objects leave the
detection area.
Daylight threshold(4,5)
Definition of the ambient brightness;only when the ambient brightness is lower than the preset specific lux amount, the sensor will work; when it's preset as "disable",the sensor works everytime it detects motion regardless the ambient
brightness.
Stand-by period(6,7)
The period of light keeping low output before it's completely switched off.When it's preset as"∞“, the light always keep at low output if no movement in the
detection area and doesn't turn off.
Stand-by dimming level(8)
The definition of low output in the standby period.
