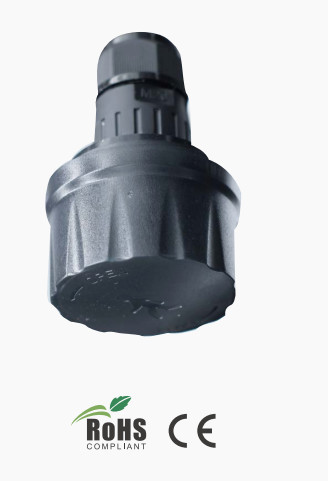

IP65 DC Motion Sensor Photocell And Daylight Harvesting Brightness

Place of Origin China
Brand Name HAISEN
Certification RoHS CE
Model Number HD06VCRH 7A
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 2-3 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Function Photocell,daylight Harvesting And Ambient Brightness Learning Input 12VDC
Stand-by Consumption Less-than 20mA Manner Of Working Optically Controlled Dimmer
Work Temperature -20-60℃ IP Grade IP65
Detection Angle Less Than Or Equal To 180° Control Mode DIM 0-10V/PWM
High Light

IP65 DC Motion Sensor

,

Photocell DC Motion Sensor

,

IP65 Daylight Harvesting Sensor

Leave a Message
Product Description

IP65 DC Motion Sensor Photocell And Daylight Harvesting Brightness



Photocell And Daylight Harvesting Brightness Learning DC Motion Sensor



Features:

1. Photocell Function,daylight harvesting and ambient brightness learning

2. 12VDC input, 0-10V dimmable

3. Remote Control and five years warranty

4. Stand-by consumption less-than 20mA







Voltage

10.5-15V DC (Currect Required>30mA)

Dim Output

DIM 0-10V

Standby Consumption

<20mA (Power Consumption)

Daylight Harvesting

30Lux/50Lux/80Lux/120Lux/200Lux/250Lux/300Lux/350Lux/400Lux

Photocell

2Lux/10Lux(Light will be off when ambient brightness is 10 times of preset lux level)

Brightness Learning

Remote control to learn ambient brightness and daylight harvesting

Temperature

-20°C~+60°C

IP Grade

IP65

Warranty

5 Years



Photocell of DC sensor:

The sensor performs photocell function when preset lux level is only 2Lux/10Lux.

Light will be off when ambient brightness is 10 times of preset lux level













Light will automatically ON when ambient brightness is lower than perset level.



Light will automatically OFF when ambient brightness is 10 times higher than preset level.





Daylight Harvesting:

When ambient brightness is lower than the preset lux level options(30Lux/50Lux/80Lux/120Lux/

200Lux/250Lux/300Lux/350Lux/400Lux), LED light will be darker when ambient is getting brighter,

and brighter when darker; when ambient brightness is brighter than preset lux level, light off.



When daylight threshold set as 30Lux/50Lux/80Lux/120Lux/200Lux/250Lux/300Lux/350Lux/

400Lux, it performs daylight harvesting function.





Brightness Learning:

Instead of giving a specific lux level, this function enables current ambient brightness to be learnt and

set as a standard lux level; When ambient brightness is getting darker, the artificial light will be

brighter; and brighter darker; When ambient brightness exceeds the standard level, light will turn off.



How To Learn Ambient Brightness

1. Light ON, use HD05R remote;

2. Press “ Scene ” button;

3. Then press MW/PIR button twice till you see the MW icon and PIR icon on the screen display start

flashing, then the light will keep OFF for about 3S and turn ON again, that means learning completed.





Wiring diagram:



Installation:









Detection Coverage:

Typical installation height 8-12m.

This figure indicates the maximum distance at the highest mounting height with 100% sensitivity.
