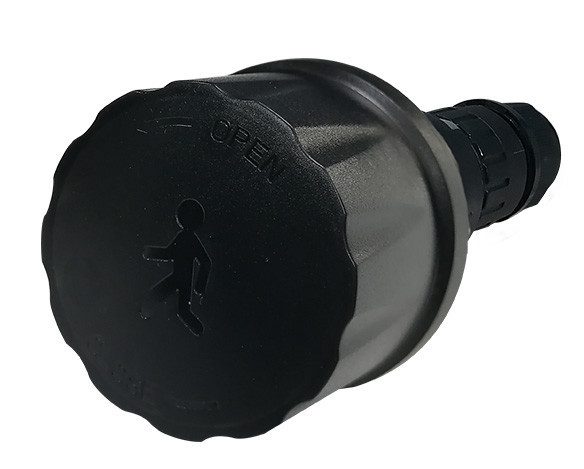

Photocell Function Daylight Harvesting Sensor RoHS CE Certificate

Place of Origin China
Brand Name HAISEN
Certification RoHS CE
Model Number HD06VCRH 7A
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 2-3 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100,000pcs Per Month
Product Details
Operating Voltage 10.5-15V DC (Currect Required>30mA) Standby Consumption <20mA (Power Consumption)
Dim Output DIM 0-10V Operating Temperature -20°C~+60°C
Color Black IP Grade IP65
Adaptation Of Remote Control HD05R Warranty 5 Years
High Light

RoHS Daylight Harvesting Sensor

,

RoHS Daylight Harvesting Photocell

,

IP65 Daylight Harvesting Photocell

Leave a Message
Product Description

Photocell Function Daylight Harvesting Sensor RoHS CE Certificate



Zhaga Base Cover Interchange Photocell And Daylight Harvesting RoHS CE Certificate



HD06VCRH 7A .pdf

Features:

1. Photocell Function.

2. Daylight Harvesting.

3. Ambient Brightness Learning.

4. 12VDC input, 0-10V dimmable.

5. Remote control

6. 5 years warranty.



Technical data:





Model number

HD06VCRH 7A

Rated operational voltage

10.5-15VDC(The DC supply current cannot be less than 30mA)

Connection type

Zhaga interface

Input voltage

DIM 0-10V/PWM

Stand-by consumption

<20mA (Power Consumption)

Detection angle

≤180°(Uncovered)

Installation

install on the side,not in the light source

Detection Area

N/A

Holdtime

N/A

Manner of working

Optically controlled dimmer

Daylight Threshold

Daylight Harvesting:30Lux/50Lux/80Lux/120Lux/200Lux/250Lux/300Lux/350Lux/400Lux

Photocell:2Lux/10Lux(Light will be off when ambient brightness is 10 times of preset lux level)

Ambient Brightness Learning

Remote control to learn ambient brightness and daylight harvesting

Operating temperature

-20°C~+60°C

IP Grade

IP 65

Warranty

5 Years

Remark

Please refer to the user manual of HD05R for daylight threshold
program.









    Photocell               Daylight Harvesting         Daylight Sensor



Remote Control       5 Years Warranty





Mechanical:

The whole product is made uo of seven parts,as shown in the fixture.





Conponents:







Size:













Wiring diagram:



Installation:













Daylight Harvesting:



When ambient brightness is lower than the preset lux level options(30Lux/50Lux/80Lux/120Lux/200Lux/250Lux/300Lux/350Lux/400Lux),LED light will be darker when ambient is getting brighter,and brighter when darker,when ambient brightness is brighter than preset lux level.,light off.







With Daylight priority function, HD02VRH 1 is able to differentiate artificial light brightness

from natural light after installed inside the fixture, and automatically turn off light when

ambient brightness exceeds preset lux level.





Application of Daylight harvesting:



When ambient brightness is lower than preset lux level,sensor will turn on light automatically and keep dimming according to the change of the ambient brightness;when outside is getting darker,the side will be brighter,and brighter darker.



Light off when ambient brightness becomes higher than the preset lux level.

Photocell:

The sensor performs photocell function when preset lux level is only 2Lux/10Lux.
1.Light will automatically ON when ambient brightness is lower than perset level. (Scene 1)
2.Light will automatically OFF when ambient brightness is 10 times higher than preset level. (Scene 2)
(Scene 2)





Ambient brightness learning:

Instead of giving a specific lux level, this function enables current ambient brightness to be learnt and

set as a standard lux level; When ambient brightness is getting darker, the artificial light will be

brighter; and brighter darker; When ambient brightness exceeds the standard level, light will turn off.

1. Light ON, use HD05R remote;

2. Press “ Scene ” button;

3. Then press MW/PIR button twice till you see the MW icon and PIR icon on the screen display start

flashing, then the light will keep OFF for about 3S and turn ON again, that means learning completed.

Application of photocell learning:



         When ambient                              When ambient level gets brighter,the artficial

         brightness is lower than                light become darker.

         the learnt standard

         level, light will keep

         100% ON



       When ambient level is

       brighter than the learnt

       standard level, light will

       go OFF.



HD05R Remote Control Keys Function Introduction







1,Daylight Harvesting Setting

① Step 1- Press "ON/OFF" to turn on the light.

② Step 2- Press “ Scene ” button;

③ Step 3 - Press related keys to set daylight threshold, with pressing "+"/"-" within 5s when the icon start to flash.



2. Power Output Setting

① The output could be set under two mode-Sensor Mode and Always ON Mode.

② Under always ON mode, press"+"/"-" to adjust the output from 10%~100%.

③ Under the sensor mode, press "Scene"-"Power", then press"+"/"-" to adjust the output from 60%~100%.



Note: Under the sensor mode, the data shown in the display could be set from 10%-100%, but the brightness would be

60% at lowest and won't dim any more.
