Compact Design ON OFF Control UL Sensor Microwave Frequency 5.8GHz

Place of Origin China
Brand Name HAISEN
Certification UL FCC
Model Number HD401S 1
Minimum Order Quantity 100PCS
Price Negotiable
Packaging Details Bubble pack, paper flat, outer carton.
Delivery Time 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month
Product Details
Working Voltage 120~277 VAC 50/60Hz Switching Capacity Max.3.0A@120Vac,Max.2.0A@277Vac
Daylight Threshold 2Lux/10Lux/50Lux/Disable Microwave Frequency 5.8GHz±75MHz
Detection Area 10%/50%/75%/100% Hold Time 5s/90s/5min/15min
IP Rating IP20 Life Time 50,000 Hours
High Light

10Lux UL Sensor

,

50Lux UL Sensor

,

50Lux Microwave Motion Sensor

Leave a Message
Product Description

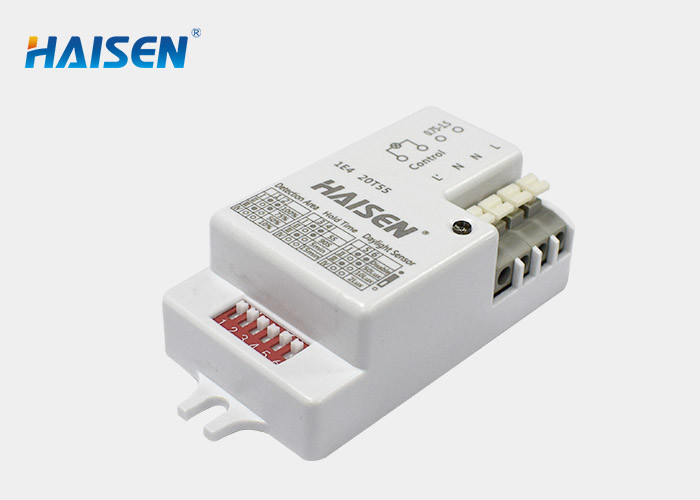

Compact Design ON OFF Control UL Sensor Microwave Frequency 5.8GHz



UL FCC Approval On Off Switch Sensor Compact Design 5.8GHz 50/60Hz Sensor



Feature:

  •  The first ON/OFF control.

  •  North American version Microwave Motion Sensor.

  •  The most compact & entry-level Microwave Motion Sensor within the industry.

  •  Automatic switching based on motion and light level.

  •  Size,80.2X36.6X23mm, suitable to fix within most luminaries.

  •  4-pole press-in terminal (L, N, N, L'), easy assembly.

  •  Detection area, hold time, daylight sensor and mode can be precisely set via DIP switches.

Detailed Product Description

   Working voltage

   120~277 VAC 50/60Hz

   Switching capacity

   Max.3.0A@120Vac,Max.2.0A@277Vac

   Stand-by power

   <1W

   Detection area

   10%/50%/75%/100%

   Hold time

   5s/90s/5min/15min

   Daylight threshold

   2Lux/10Lux/50Lux/Disable

   Microwave power

   <0.3mW

   Interfaces

   4-pole pluggable clamp terminal(L,N,N,L’)for 0.75-1.5mm2 cable

   Mounting height

   Max.15m(ceiling mounted),Max.3m(wall mounted)

   Detection range

   Max.ø14m(ceiling mounted),Max.20m(wall mounted)

   Detection angle

   30°-150°

   Operating temperature

  -20°C~+60°C

    Size

   80.2*36.6*23mm

   Warranty

   5 years

    Certificate

   UL FCC
