High Voltage 347V 480V AC UL Sensor Mounting Height Max 15m 49.2ft

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: FCC UL
Model Number: HD408VRH
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs Per Month

Detail Information

Microwave Frequency: 5.8GHz ± 75MHz Mounting Height: Max.15m/49.2ft
Detection Range: Max.ø16m/52.48ft Apperance Color: White Or Black
Operating Voltage: 347-480VAC,50/60Hz Lifetime: 50000 Hours
IP Rating: IP 20 Application: Tri-proof Light/Battenlight/UFO Highbay Light
Detection Distance: Diameter 16m/52.48 Max.
High Light:

347VAC UL Sensor

,

Mounting Height 49.2ft UL Sensor

,

347VAC High Voltage Sensor

Product Description

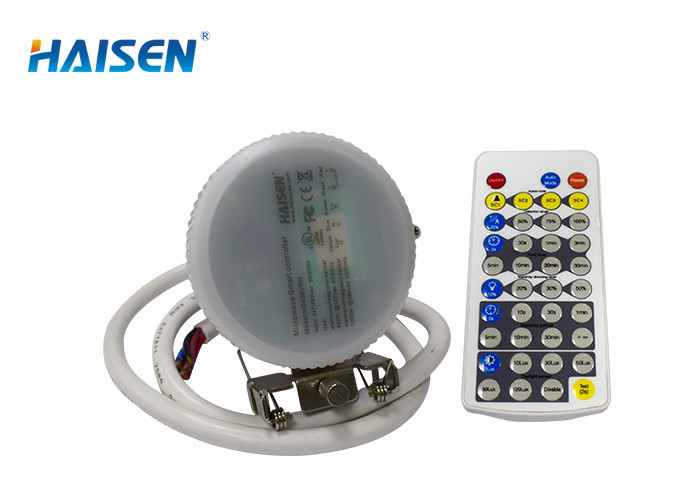

High Voltage 347V 480V AC UL Sensor Mounting Height Max 15m 49.2ft

IP 65 High altitude installation high voltage remote control setting UL FCC sensor


Features:

  • 5.8GHz Micorwave Motion Sensor with remote control.
  • Dimming function microwave movement motion sensor.
  • Operating voltage:347-480VAC 50Hz/60Hz.
  • Switching capacity:max.2.3A@347Vac 50/60Hz;max.2.5A@480Vac 50/60Hz.
  • Automatically detect the daylight and remain OFF even detect any movement when the natural light is sufficient.
  • Mounting height could be 15m/49.2ft and detection diameter could be 16m/52.48ft.
  • Detection area,time delay,stand-by dimming level,stand-by period and daylight threshold can be precisely set by remote controller.
  • Hold time:5s/30s/1min/3min/5min/10min/20min/30min.
  • IP Rating would be IP20 and 5 years of warranty.

Specifications

Operating voltage347-480VAC,50Hz/60Hz
Switching capacityMax.2.3A@347Vac 50/60Hz;Max.2.5A@480Vac 50/60Hz
Stand-by power≤1W
Detection area25%/50%/75%/100%
Hold time5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period0s/10s/30s/1min/5min/10min/30min/+∞
Stand-by dimming level10%/20%/30%/50%
Microwave frequency5.8GHz±75MHz
Microwave power<0.3mW
Mounting heightMax.15m/49.2ft
Detection rangeMax.Ø16m/52.48ft
Control line

Black L in;White N;Red L out;Gray -;Purple +

Operating voltage-35℃-+55℃
IP ratingIP 65
Detection angle30°-150°
CertificateRoHS UL FCC
Safety standardEN61347-1 EN61347-2-13 EN60598-1





Dimensions:
There are four versions of sensors for different lamps.


Wiring Diagram:
American standard:Black L,White N,Red L',Gray 1-10V-,Purple 1-10V+.


Detection coverage:
Max. detection range will be 16m for ceiling mounted.


Application Demo - Function Demo-On/off control:

With sufficient daylight, even when motion detected, light remains OFF.
With insufficient daylight, when motion detected, light ON.
After last detection, the light will be dimmed down to the stand-by dimming level after holdtime.
After the stand-by period, light OFF.
