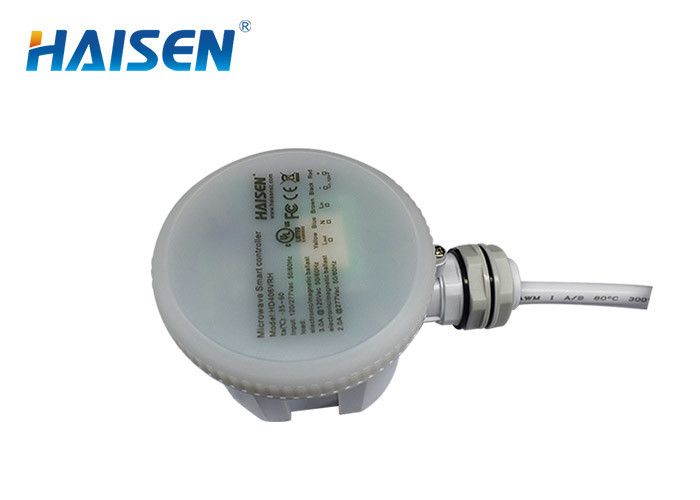

120-277V IP65 Microwave Sensor Dimmable With UL Remote Control

Place of Origin China
Brand Name HAISEN
Certification UL FCC

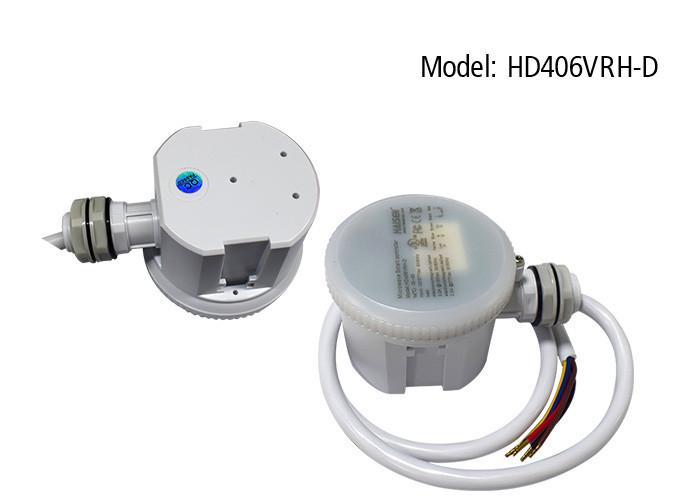

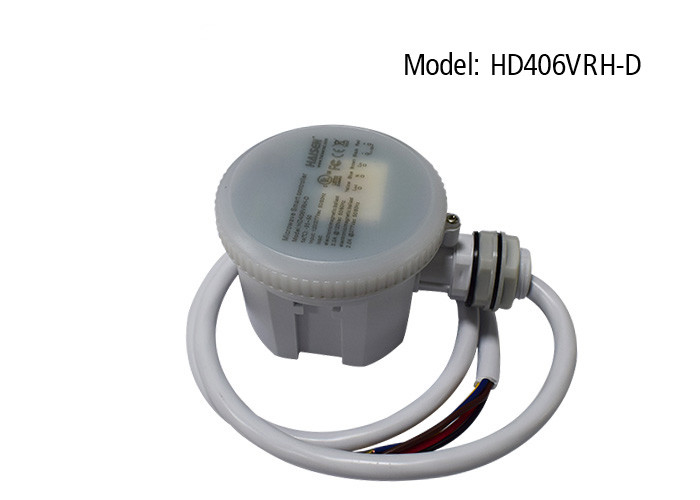

Model Number HD406VRH-D
Minimum Order Quantity 48pcs/ctn
Price Negotiable
Packaging Details Packed in Individual box, Reinforced With Paper Flat, Then Packed With Outer Carton
Delivery Time Standard Models Within 3 Weeks
Payment Terms D/A, D/P, T/T
Supply Ability 1-10pcs Samples Within 2-3 Days; Bulk Order Within 28 Days
Product Details
Operating Voltage 120-277VAC,50Hz/60Hz Detection Angle 30°-150°
Microwave Frequency 5.8GHz±75MHz Color White
High Light

Microwave Motion Sensor Ip65

,

1mW UL Sensor

,

277V IP65 Motion Sensor

Leave a Message
Product Description

120-277V IP65 Microwave Sensor Dimmable With UL Remote Control

Features

  • 120-277V Input, with UL FCC certificate
  • 0-10V dimming or ON/OFF function
  • Suitable for Highbay application max 15M
  • IP65 for Different Industrial Applications
  • Remote Control HD03R

Parameter Table

Operating voltage 120-277VAC,50Hz/60Hz
Switching capacity 400W
Stand-by power ≤1W
Detection area 10%/50%/75%/100%
Hold time 5s/30s/1min/3min/5min/10min/20min/30min
Daylight threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/Disable
Stand-by period 0s/10s/30s/1min/5min/10min/30min/+
Stand-by dimming level 10%/20%/30%/50%
Microwave frequency 5.8GHz±75MHz
Microwave power <0.3mW
Mounting height Max.15m ( 49.21ft )
Detection range Max.ø14m/45.93ft
Detection angle 30°-150°
Operating temperature -35°C~+60°C
IP rating IP65
Life time 50,000 hours
Warranty 5 years

Factory Default Setting

  • Detection area 100%
  • Hold time 5s
  • Daylight threshold Disable
  • Stand-by period 0s
  • Stand-by dimming level 10%.

Remote Control

#HD03R, the standard remote control

Specification Download HD03R .pdf



Wiring Diagram

120-277V IP65 Microwave Sensor Dimmable With UL Remote Control 0



Installation

Type A: Suitable for highbay light with aluminium shade

Type B: Suitable for directly mounted on the ceiling

Type C: Suistable for UFO highbay light

Type D: Suitable for linear highbay light

120-277V IP65 Microwave Sensor Dimmable With UL Remote Control 1

Performance

* Daylight Threshold

With sufficient daylight, even when motion detected, light remains OFF.



* Bi-Level Dim

When motion is detected, the sensor will switch on the light to 100% brighteness.

After people leave the detection area, light remains 100% brightness for the hold time.

After holdtime, sensor dims light to standby dimming level (10% 20% 30% 50%) and keeps for a standby period.

After standby period,sensors turns OFF the light.



* ON/OFF

When motion is detected, the sensor will switch on the light to 100% brighteness.

After people leave the detection area, light remains 100% brightness for the hold time.

Preset standby period as 0S, sensor turns OFF the light after holdtime.
