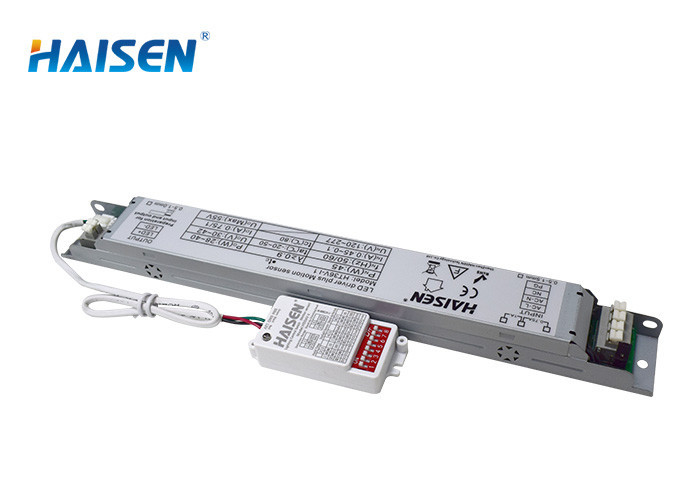

Smart Control Microwave Movement Sensor 120~277VAC For Tripoorf Light Detached Design

Product Details:
Place of Origin: China
Brand Name: HAISEN
Certification: CE
Model Number: HT36V-I 1
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Bubble pack, paper flat, outer carton.
Delivery Time: 1-3 days for sample order, 1-2 weeks for bulk order
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100,000pcs per month
Specifications Product Description Request A Quote
Function: Dimmable Driver Sensor
Control: DIP Switches
Design: Detached Design
Input Voltage: 120~277VAC 50/60Hz
Warranty: Normally 3 Years, Could Be 5 Years
Driver: Isolated Driver Solution
High Light:

microwave pir detector


external microwave sensor

Product Description

Smart Control Microwave Movement Sensor 120~277VAC For Tripoorf Light Detached Design


Product Description

   Input voltage    120~277VAC 50/60Hz
   Input current    0.1-0.45A (Max)
   Input power    45W(Max)
   Stand-by power    ≤1W(220VAC)
   Microwave frequency    5.8GHz±75MHz
   Microwave power    <1mW
   Output LED current    750mA/1000mA ±5%
   Output LED voltage    27V~42V
   Output LED power    36W(Max)
   Empty load voltage    ≤55V
   Power factor    ≥0.9
   Efficiency    82% (Max.)
   Detection angle    30°~150°
   Mounting height    Max.6m(ceiling mounted) Max.3m(wall mounted)
   Detection range    Max.ø14m(ceiling mounted) Max.10m(wall mounted)
   Detection area    50%/100%
   Hold time    5s/30s/1min/5min
   Daylight threshold    2Lux/10Lux/50Lux/Disable
   Stand-by period    0s/10s/5min/+∞
   Stand-by dimming level    10%/30%
   Operating temperature    Ta:-20°C~50°C Tc:80°C
   Abnormal protection    SCP:Auto recovery,OVP,OCP,OTP
   EMC standard    EN55015
   Safety standard    EN61347-1 EN61347-2-13 EN60598-1
   IP rating    IP20


Wiring diagram

Mechanical structure(mm)

DIP Switch Setting

Detection coverage
